POLARA iNS Operation Manual

Specifications:

Size:

6.8"

Length

4 ½"

Width

Height

Weight: 1 lb.

Operating Temperature: 0° C to +50° C

Operating Voltage: 24V DC

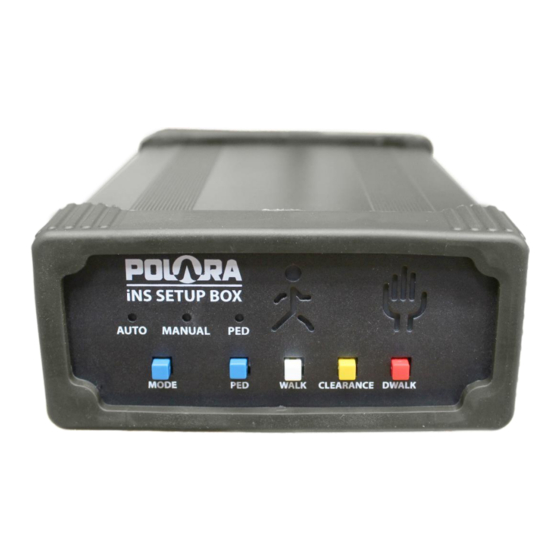

The iNS Setup Box (iNS-SUB) is a special tool that provides a convenient method of operating one Polara

iNS/iDS/iNavigator 3-Wire Push Button Station in a bench top environment, where it can be setup and

tested before installation on the street. The iNS Setup Box simulates the operation of a standard

pedestrian signal head with an iPHCU3W/S installed. The iNS Setup Box is also able to simulate the

function of the Ped Call interface.

Note: The iNS-SUB can also operate an iN2/iNS2/iDS2 PBS, that can also be used as a 3-Wire PBS. Most

Setup, programming, and testing can be performed in this mode (except for cabinet programming

- which only happens in a 2-Wire connection mode). Connect the unit as a 3-Wire to the iNS-SUB.

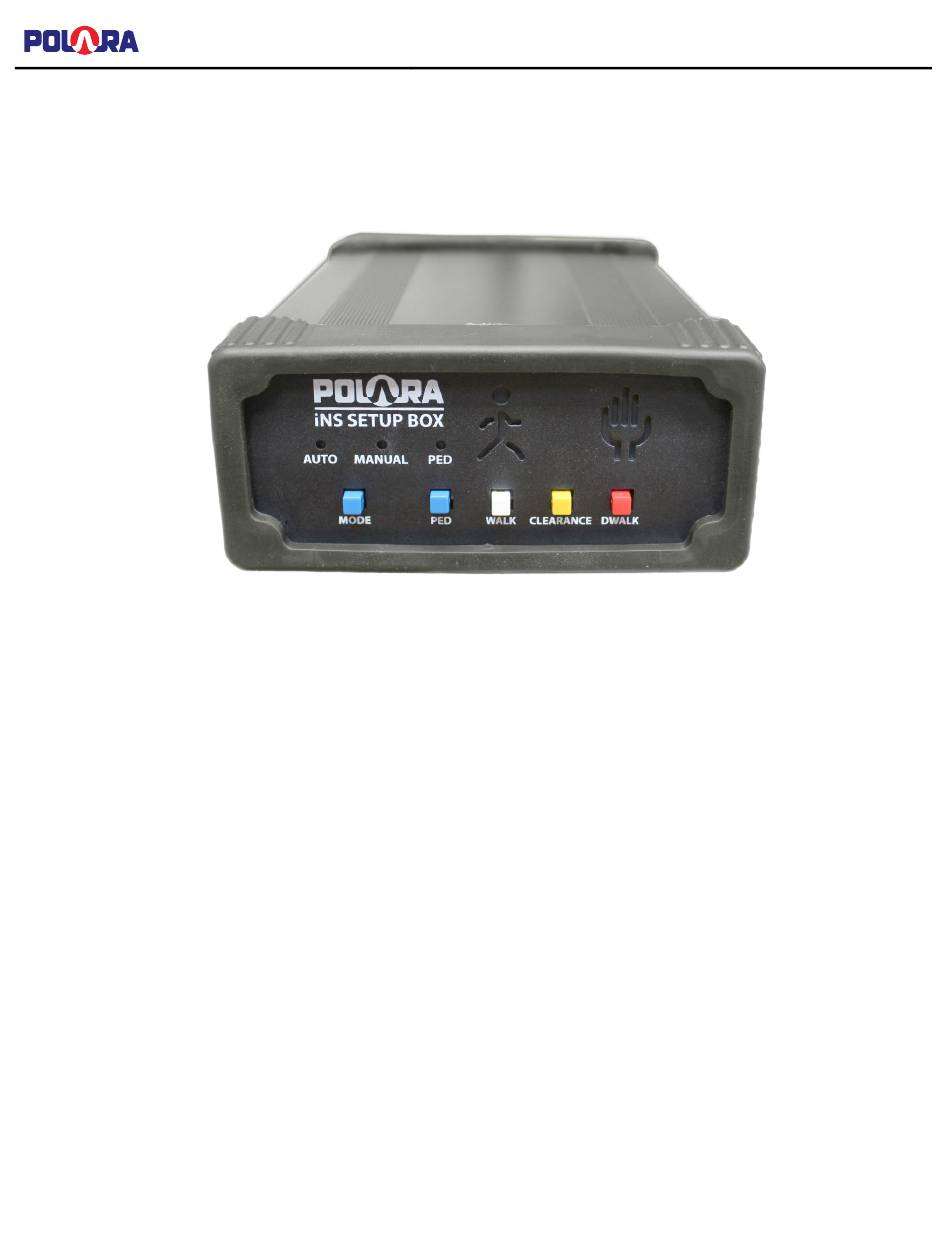

iNS Setup Box

iNS Setup Box Operation Manual

1 of 3
