Summary of Contents for LEGRAND 4 305 34

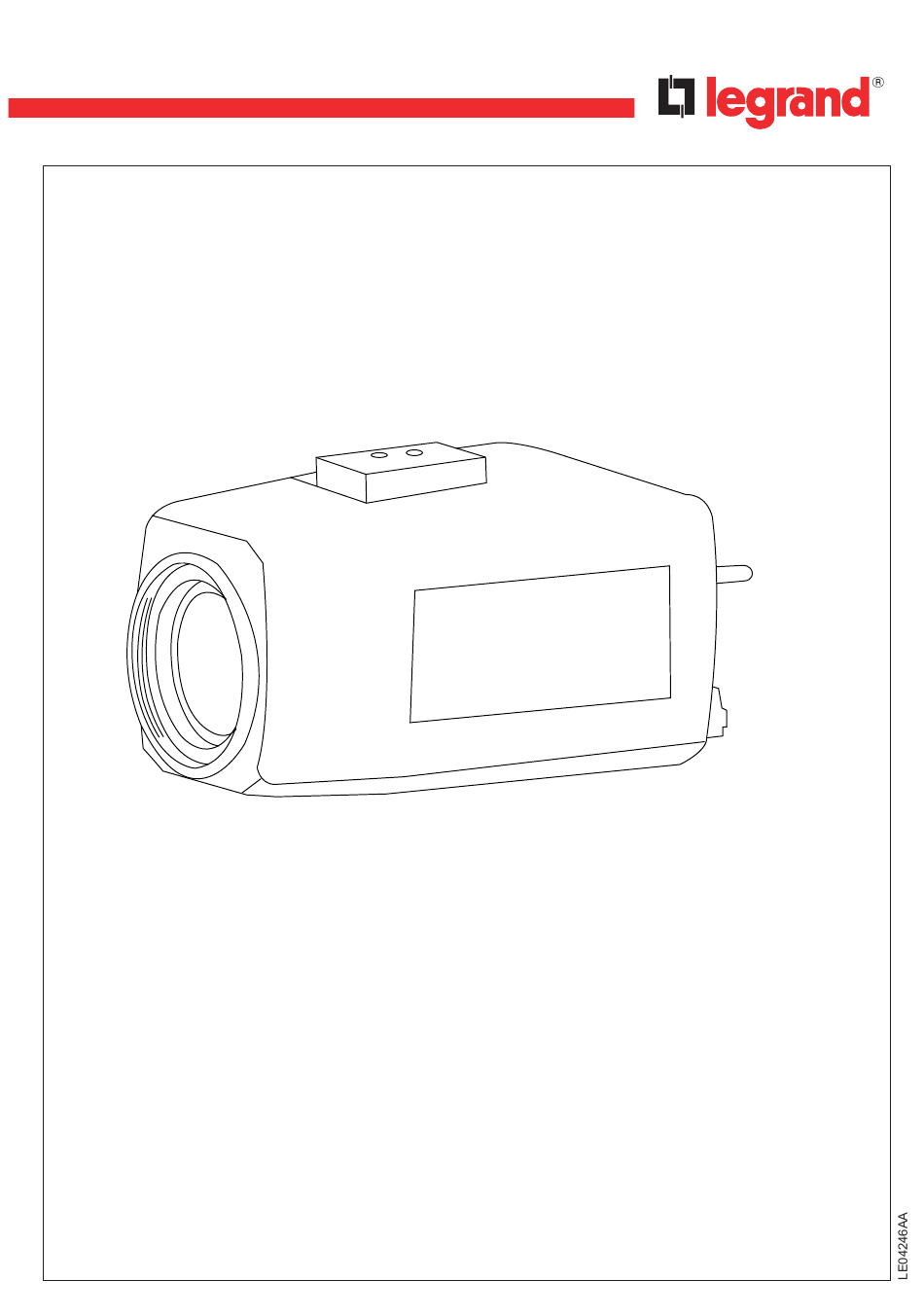

- Page 1 36 x / Auto Focus ICR Camera • 4 305 34...
-
Page 2: Table Of Contents
Indice Safety precaution Instroduction Features Packing list Name and Function of Each Part Installation 6.1 Connect to monitor 6.2 Connect the power 6.3 Connection layout 6.3.1 Connecting the keyboard 6.3.2 Connecting the alarm Operation 7.1 Keyboard operation 7.1.1 Normal display mode 7.1.2 OSD setup menu mode System Setup 8.1 Digital zoom operation... -
Page 3: Safety Precaution
Before carrying out the installation, read the instructions and take account of the product’s specific mounting location. Do not open up, dismantle, alter or modify the device except where specifically required to do so by the instructions. All Legrand products must be opened and repaired exclusively by personnel trained and approved by Legrand. -
Page 4: Instroduction
2. INTRODUCTION The 36x Auto-Focus ICR camera with WDR function, uses a high sensitive color 1/4” Sony interline reaching 550 TVL. The camera is built-in with 36x Optical zoom lens spells added user convenience since there is no need for eparate adjustment of the focal distance. -
Page 5: Features
3. FEATURES High resolution CCD Sensor provides high resolution reaching 550 TVL with advanced and clear picture quality. Excellent sensitivity High sensitivity, low smear, high anti-blooming and high S/N ratio. Wide Dynamic Range (WDR) High-quality WDR functions, perfectly shows the image details between dark and light. Newly added environment dynamic detection switch, enhancing WDR image efficiency. -
Page 6: Packing List
PACKING LIST Check and make sure all of the items shown below are included in your product package. If something is missing, contact your dealer as soon as possible. Item description Item picture Camera (box type) Power adaptor Caméra ICR à mise au point automatique / 36 x Κάμερα... -
Page 7: Name And Function Of Each Part
5. NAME and FUNCTION of EACH PART Side view Front view Rear View 1 Mouting base Mouting base for installing the camera 2 Power input Dc 12V, 7 mA or AC 24V 3 Video Output Video output: composite video 1 Vp-p, 75 Ohms, BNC 4 Audio Output Composite video 1 Vp-p, 75 Ohms, RCA 5 5 Keys control... - Page 8 ay & Night Output This function will turn on the external IR LED lamp according to the position of IR cut filter. 5V/10 mA: IR LED ON (night) 0V: IR led off (Day) Day & Night external input When Day & Night mode is set to “External” on the OSD menu of the camera, this function will be switched to Day mode or Night mode according to the Day &...
-
Page 9: Installation
6. INSTALLATION 6.1 Connect to monitor Connect the video-out port on the rear panel of the camera to a monitor. 6.2 Connect the power Since the power specification supports both AC and DC, you may connect an AC 24V, 500 mA adaptor or a DC 12V, 500mA adaptor. -
Page 10: Connection Layout
6.3 Connection layout To connect the keyboard and alarm, please follow the setup guide shown below: 6.3.1. Connecting the Keyboard RS-485 2 wires to keyboard Camera Keyboard Monitor... - Page 11 Installation with joystick - RS-485 interface is used to communicate with the keyboard. Connect R+ of the camera to T+ of the keyboard. Connect R- of the camera to T- of the keyboard. - User could adjust camera ID via rear panel keys or via remote commands. Protocol, speed and parity should only be adjusted via rear panel keys.
- Page 12 IR Illuminator Installation Connect DNI and GND of the camera to the DNI and GND of the IR Illuminator. Camera IR Illuminator (Camera control) INPUT Output signal = 5V, 10 mA Note: CAM must be set to AE mode light sensor to EXT mode. Alarm Installation Connect GND and AL of the camera to the GND and AL of the alarm.
-
Page 13: Operation
7. OPERATION Mount the camera on the mounting bracket by using the hole on the top or bottom of the camera or by using the encloses 8 mm mounting block, furnished by 2 screws. Connect the video output to the monitor or other video device via a 75 Ohms type coaxial cable. Connect the power source, using the DC Jack (+12V DC in the jack center). -
Page 14: System Setup
8. SYSTEM SETUP 8.1 Digital zoom operation The built-in 36x optical zoom lens is highly reliable and offfers auto focus and auto iris functions. Users can monitor a scene from any desired angle of view, use (T)/ (W) button to control the optical zoom 1x ~ 36x and digital zoom 1x ~ 16x. -
Page 15: Exposure Setup
ZOOM START SET: This function is for selection of Zoom Start position. Set the Zoom Start mode from 1 to 36. FOCUS END SET: This function is for selection of Zoom End position. Set the Zoom End mode from 2 to 576. FOCUS SPEED SET: This function is for selection of zoom speed. -
Page 16: Day/Night Setup
1. Smart Mode - System will auto detect its brightness and the backlight compensation is auto defined by the system. 2. User Defined Mode - Compensation area can be manually setup by the users. (2) TOPS (1) CENTER (3) TOPL (4) BOTTOMS (8) Use function option “START X/END X/ START Y /... -
Page 17: White Balance Setup
NIGHT -> DAY The threshold value of color change (from B/W to color) under AE mode. Switches to Color when “Night/Day” ≤ “AE value” then switch to Color (Default setup: 63). DEFAULT Return to default setup. RETURN Return to previous status. 8.3.4 WHITE BALANCE Setup WHITE BALANCE WB MODE... -
Page 18: Effect Setup
END X: Horizontal end position (40 ~ 480). START Y: Vertical start position (0 ~ 271). END Y: Vertical end position (20 ~ 291). DEFAULT: Return to default setup. RETURN: Return to previous status. 8.3.6 EFFECT Setup EFFECT DISPLAY <- -> SHARPNESS POSI/NEGA POSI... - Page 19 Normal ZOOM CAMERA Zoom Title 1. TITLE: You can enter up to 16 characters (‘~’ indicates blank space). 2. USER TITLE DISP: TITLE / ID / ZOOM /MOTION ALM / AE AWB / BRIGHTNESS title display ON/OFF under llive display (Default setup: ON).
-
Page 20: Motion Detect Setup
8.3.7 MOTION DETECT Setup MOTION DETECT MOTION SENSITIVITY DURATION ALARM OUT ZOOM RATIO DEFAULT RETURN MOTION: Motion detection setup “ON/OFF” (Default setup: OFF). SENSITIVITY: Detection sensitivity can be set to range of 0 ~ 63 (Default setup: 5). DURATION: Alarm duration that arises after the motion alarm can be set to 5 s / 10 s / 15 s / 20 s / 30 s / 1 mn / 2 mn / 3 mn / 4 mn / 5 mn (Default setup: 5 s). -
Page 21: Specifications
9. SPECIFICATIONS 36 x / Auto Focus ICR Camera Pick-up Device 1/4” High Resolution Super HAD II WD CCD (Sony Chipset) Total pixels No NTSC: 1 028 (H) x 508 (V) 520K PAL: 1 028 (H) x 596 (V) 610K Effective pixels No NTSC: 976 (H) x 494 (V) 480K PAL: 976 (H) x 582 (V) 570K...
