  • Page 1 ACS get started Owner’s manual In the box From your toolbox Original instruction WR153E WR155E WA0860...

  • Page 2: Table Of Contents

    Table of contents TABLE OF CONTENTS Welcome p. 03 Contact information Safety first p. 04 Important safety instructions Get familiar with p. 05 What’s in the box p. 06 How it works Getting started p. 07 Installation Quick reference p. 21 Trouble shooting p.

  • Page 3: Welcome

    Welcome Thank you for purchasing a Worx ACS. We’re here to help: Support www.worx-europe.com/support Landroid Owner’s Site https://account.worxlandroid.com/login...

  • Page 4: Safety First

    Safety first WARNING: Read all safety warnings and all instructions Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Carefully read the instructions for the safe operation of the machine. Save all warnings and instructions for future reference. Symbols Warning Read the operator’s manual.

  • Page 5: Get Familiar With

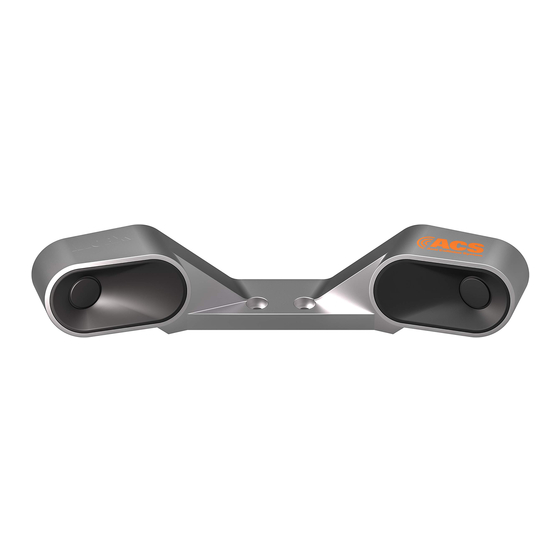

    Get familiar with WHAT’S IN THE BOX ACS module 1 allen key 2 screws...

  • Page 6: How It Works

    Get familiar with HOW IT WORKS The ACS option allows Landroid to detect obstacles such as trees and furniture and steer accordingly in order to avoid them. It gives “eyes” to your Landroid. Landroid uses automotive-grade ultrasonic sensors to detect obstacles and avoid them. ACS detects objects taller than 20 cm and thicker than 25 Please note that in case the height of the grass is higher than 20 cm, ACS will detect it as an obstacle, therefore the grass will not be cut.

  • Page 7: Getting Started

    Here below the steps to follow to install ACS into different Landroid models. Before proceeding with the installation please make sure your Landroid’s firmware is updated to the last version. For more information on firmware upgrade please refer to the “Maintenance” section of the Landroid-o-pedia (https://support.worx-europe.com). Landroid S 300 (WR130E) START 2.
  • Page 8 Getting started www.worx.com/landroid/support VIDEO 7. Secure ACS with the provided screws 8. The ACS icon is now active. Touch it to see the status and to activate/disactivate the option. If the Status shows “error” contact our support team at https://support.worx-europe.com...
  • Page 9 Getting started Landroid M 500 (WR141E) START 1.Turn off Landroid 2. Turn Landroid upside down 3. Remove Landroid blades using a screwdriver – wear gloves 4. Open the small flap as shown in the picturet to avoid injury 6. Close the flap 5.
  • Page 10 Getting started 7. Screw Landroid blades back in 8. Turn Landroid back to its position 9. Remove the cover slot 10. Remove Landroid connector’s inner protection 11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot...
  • Page 11 Getting started 13. Secure ACS with the provided screws 14. The ACS icon is now active. Touch it to see the status and to activate/disactivate the option. If the Status shows “error” contact our support team at https://support.worx-europe.com...
  • Page 12 Getting started Landroid M 700 (WR142E) Landroid M 1000 (WR143E) Power OFF Goodbye START 1.Turn off Landroid 2. Turn Landroid upside down 3. Remove Landroid blades using a screwdriver – wear gloves 4. Open the small flap as shown in the picturet to avoid injury 5.
  • Page 13 Getting started 7. Screw Landroid blades back in 8. Turn Landroid back to its position 9. Remove the slot cover 10. Remove Landroid connector’s inner protection 11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot...
  • Page 14 ACS sensors are clean - if not proceed to clean them with a soft activate/disactivate the option. If the Status shows “error” contact cloth. If the issue persists, please go to our support team at https://support.worx-europe.com https://account.worxlandroid.com/, access your profile and open a ticket using the form.
  • Page 15 Getting started Landroid L1000 (WR147E) START 1.Turn off Landroid 2. Turn Landroid upside down 4. Open the small flap as shown in the picturet 3. Remove Landroid blades using a screwdriver – wear gloves to avoid injury 5. Gently push in order to open the housing on the other side 6.
  • Page 16 Getting started 7. Screw Landroid blades back in 8. Turn Landroid back to its position 9. Remove the slot cover 10. Remove Landroid connector’s inner protection 11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot...
  • Page 17 Work done today Charging 50% 14. The ACS icon is now active. Touch it to see the status and to 13. Secure ACS with the provided screws activate/disactivate the option. If the Status shows “error” contact our support team at https://support.worx-europe.com...
  • Page 18 Getting started Landroid L1500 (WR153E) Landroid L 2000 (WR155E) Power OFF Goodbye START 2. Turn Landroid upside down 1.Turn off Landroid 3. Remove Landroid blades using a screwdriver – wear gloves 4. Open the small flap as shown in the picturet to avoid injury 5.
  • Page 19 Getting started 7. Screw Landroid blades back in 8. Turn Landroid back to its position 9. Remove the slot cover 10. Remove Landroid connector’s inner protection 11. Plug ACS connectors into Landroid’s connectors 12. Insert ACS into the slot...
  • Page 20 If the Status shows “error” contact ACS sensors are clean - if not proceed to clean them with a soft our support team at https://support.worx-europe.com cloth. If the issue persists, please go to https://account.worxlan- droid.com/, access your profile and open a ticket using the form.

  • Page 21: Quick Reference

    Quick reference Troubleshooting ® Make sure your ACS module is securely installed and follow the actions below if your Landroid does not operate correctly. If these do not identify and correct the problem, please go to https://account.worxlandroid.com/, access your profile and open a ticket using the form.

  • Page 22: Declaration Of Conformity

    Declaration of Conformity Positec Germany GmbH Grüner Weg 10, 50825 Cologne, Germany Declare that the product Description ACS module Type WA0860 Function Obstacle avoidance Complies with the following Directives: 2014/30/EU, 2011/65/EU & (EU)2015/863 Standards conform to EN 55011, EN 55014-2...
