Gems Sensors & Controls UCL-510 Manual page 4

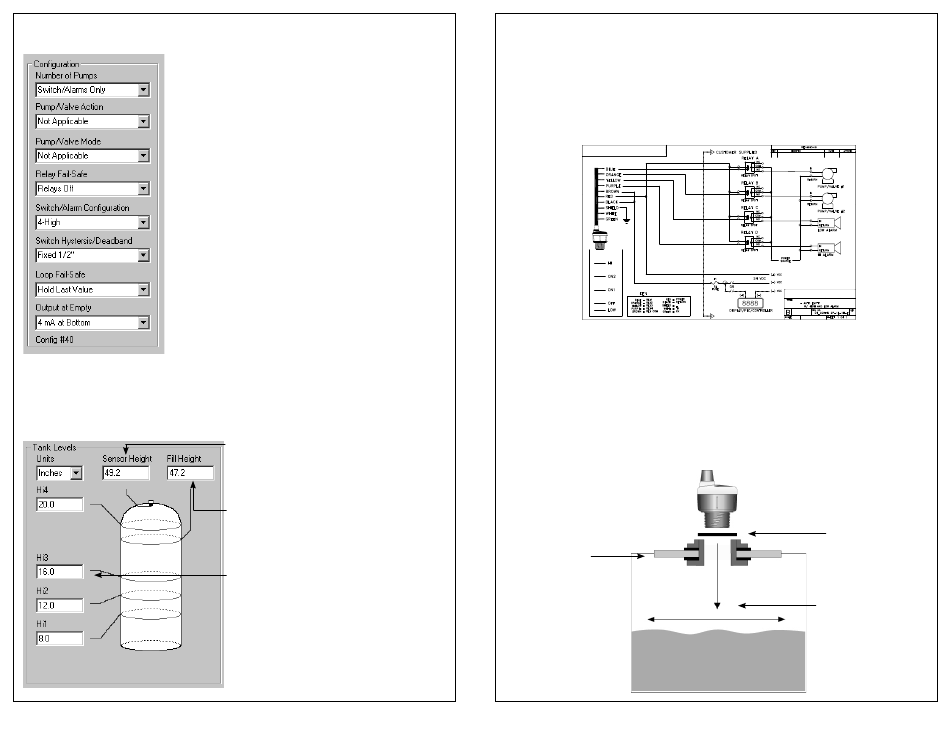

Confi guration Step 1: Confi guration
This section of Confi guration is where you select
the application's confi guration settings. Start
from the top and work to the bottom, choosing
the selections that are applicable to your con-
fi guration. "Not Applicable" will automatically
show when a selection doesn't apply to your
confi guration settings, and you may move on. All
confi guration settings must be selected or have
"Not Applicable" before you can continue to
step 2.
Right click on any menu that you may have ques-
tions on to open the help menu.
Confi guration Step 2: Tank Levels
This section of Confi guration is where you enter application measurement
values. All values must be fi lled in before moving to step 3.
4
Sensor Height: Distance from the bot-
tom of the tank to the bottom of the
transducer.
Fill Height: Distance from the bottom
of the tank to the maximum liquid
height.
Relay Set Points: Distance from the
bottom of the tank to set-points.
Right click on any value you may have
questions on to open the help menu.
Confi guration Step 3: Write to Unit
After you have entered confi gurations and tank values, click "Write to Unit"
and send the confi guration to UCL-510. Now use the confi guration soft-
ware's fi le management features to save your confi guration by clicking "Save
Confi g File" and print your wiring diagram by clicking "Wiring Diagram."
Example Wiring Diagram
Position and Mount
Positioning and mounting UCL-510 is critical to the sensor performing cor-
rectly. UCL-510 should always be mounted perpendicular to the liquid in
the tank, clear of any obstructions in the beam path. Not doing so will result
in poor performance. Refer to Gems mounting guide on pg. 6 for further
instruction.
Always use cor-
rect tank adapter
(refer to Mounting
Guide on pg. 6)
UCL-510
Always use
supplied Viton®
Gasket
Always mount
perpendicular to
the liquid in the
tank and clear of
any obstructions
in the beam path.
5
