Level sensing at its best!
Thank you for purchasing Gems new innovative small tank solution. The
UCL-510 is a general purpose sensor that combines switch, controller and
transmitter capabilities for small tanks 49.2" (1.25 m) or less.
Confi guration
UCL-510 is confi gured through Confi guration, a PC software program. Con-
fi guration is a free download from Gems website. You must download and
install Confi guration prior to plugging in the USB® Fob. Please go to http://
www.Gemssensors.com/software.
Confi guration Software
System Requirements
Windows® XP or 2000
10 mB hard drive space
1 USB® 2.0 port
Internet connection
2
256 mB RAM
Specifi cations
Range:
49.2" (1.25 m)
Accuracy:
0.125" (3 mm)
Resolution:
0.019" (0.5 mm)
Beam width:
2" (5 cm)
Dead band:
2" (5 cm)
Supply voltage:
24 VDC (loop)
Loop resistance:
400Ω max
Consumption:
0.5W
Signal output:
4-20 mA , two-wire
(when loop powered)
Contact type:
(4) SPST relays 1A
Loop fail-safety:
4 mA, 20 mA, 21 mA,
22 mA or hold last
Relay fail-safety:
Power loss: Hold last
Power on: Open, close
or hold last
Hysteresis:
Selectable
Configuration:
Software, PC Windows®
USB 2.0
Temp. comp.:
Automatic over range
Process Temp.:
F: 20˚ to 140˚
C: -7˚ to 60˚
Ambient Temp.:
F: -31˚ to 140˚
C: -35˚ to 60˚
Pressure:
MWP = 30 PSI
Enclosure:
Type 6P
encapsulated, corrosion
resistant & submersible
Encl. material:
PC/ABS FR
Strain relief mat.:
Santoprene
Trans. material:
PVDF
Cable length:
48" (1.2 m)
Cable jacket mat.:
Polyurethane
1" NPT (1" G)
Process mount:
Mount. gasket:
Viton®
Classification:
General purpose
Approvals:
CE, cFMus
Safety
1. Installation should be done by properly trained staff
2. Supply voltage should never exceed a maximum of 24 VDC
3. Always use stepper relays between the sensor and external loads
4. Make sure the sensor is chemically compatible with your application
5. Design a fail-safe system that accommodates the possibility of sensor and/or power failure.
6. This sensor should not be used in classifi ed hazardous environments

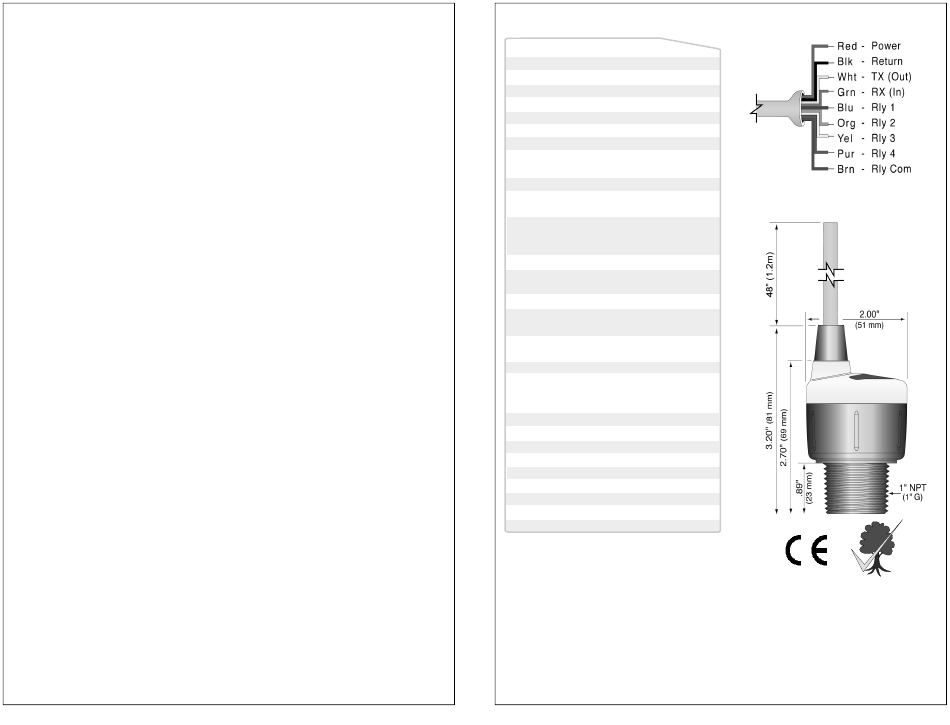

Wiring
Dimensions
RoHS
Compliant
7
