Roper Rhodes HAM600US Quick Manual

BEFORE YOU START

It is recommended that the unit and basin are secured to a suitably reinforced wall to ensure stability. This can be done through the back
rail (fixings not included.)

JOINING UNITS

Two units can be joined together using fixing bolts (not provided) to make a 1200 double unit. It is recommended that units are joined before
they are fixed to the wall.
Clamp the units together using suitable clamps, ensuring they are flush and level with each other. Drill holes through the side of the unit and
using the bolts, join units together.

FITTING HANDLES

• A pilot hole located at the back of the door can be drilled if
using a single screw knob.
• If you have chosen a pull handle with 2 screws then please
pilot and then drill through the door with the handles in the
desired location.
• Carefully drill any holes using a clamped block of wood to
protect the front of door - See figure 2.
• The handles can simply be screwed into place using the
screws supplied with the unit.
• If you choose third party handles please measure carefully
before drilling.
block of wood

FITTING WORKTOP WITH UNDERSLUNG BASIN

• Follow supplementary instructions supplied with worktop and basin for fitting basin to worktop.
• Apply a layer of silicone sealant to the worktop on all 4 sides to be fixed to the panels, back rail and front section as per figure 1.
• Connect plumbing services as necessary.
pilot holes

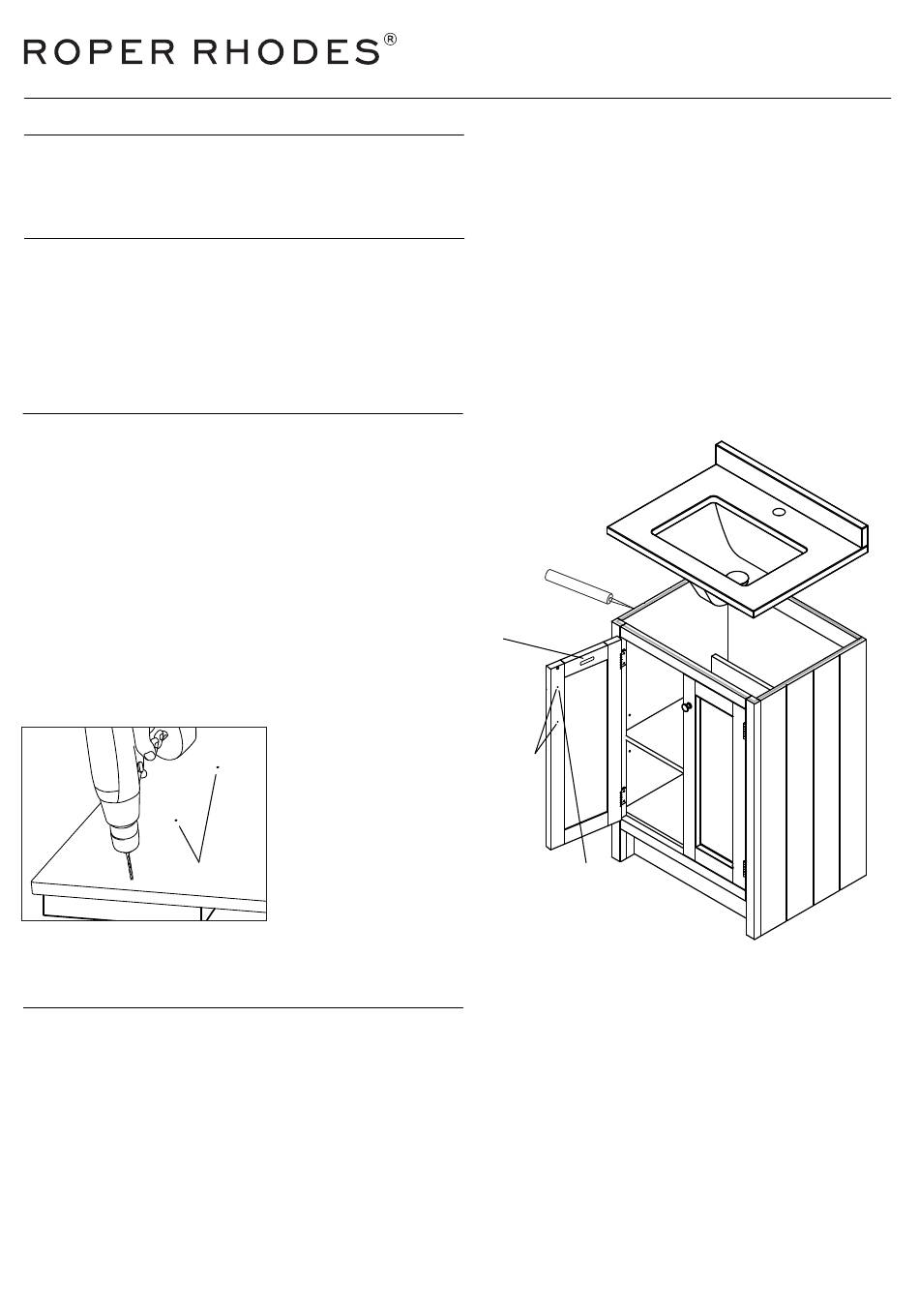

Figure 2
