Roper Rhodes Henley T261102 Installation & Aftercare Instructions

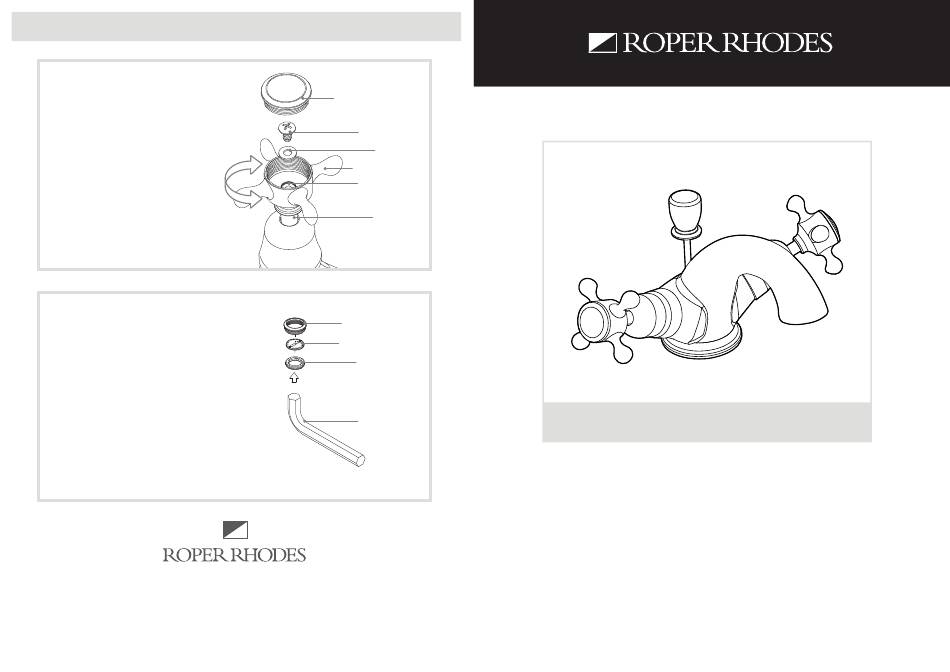

Handle and Indices Adjustment:
ADJUSTING HANDLE ALIGNMENT
To adjust the alignment of the handle in
relation to the body, unscrew the bezel and
ceramic indices from the top of the handle.
Unscrew the spindle bolt, and set aside
with the spindle bolt washer.
Lift the handle off the spindle and replace at
the desired angle using the micro
adjustment teeth.
Re-attach the washer and spindle bolt and
tighten.
Screw the bezel and ceramic indices
assembly back onto the handle body.
ADJUSTING CERAMIC INDICES
To adjust the alignment of the ceramic indices, first
unscrew the bezel and ceramic indices assembly from
the tap handle.
The ceramic indices are held in place by a threaded brass
plate. Loosen the brass plate with a No. 16 Hex (Allen)
Key, but do not remove from bezel.
Rotate the ceramic indices until the printed logo is at the
desired position. You may need to screw the bezel and
indices assembly back onto the handle body to check
alignment and adjust as necessary.
When you are happy with the position, re-tighten the
brass plate , making sure to hold the ceramic indices still.
Tel: 01225 303 900 Fax: 01225 448 877
Email: sales@roperrhodes.co.uk
www.roperrhodes.co.uk
Roper Rhodes Limited
Brassmill Lane Trading Estate, Bath, BA1 3JF
Bezel and Ceramic
indices assembly
Spindle Bolt
Washer
Handle Body
Micro Adjust
Spindle
Bezel
Ceramic Indices
Brass Plate
No. 16
Hex Key
Customer Service
teeth

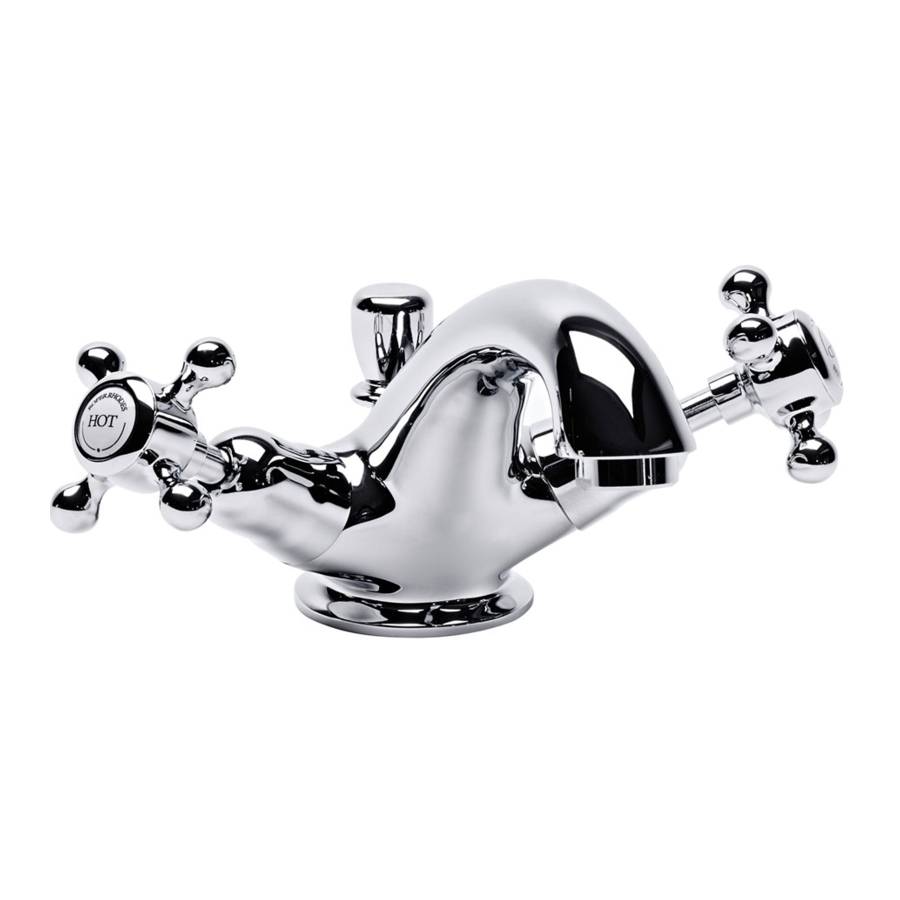

Henley Basin Mixer
