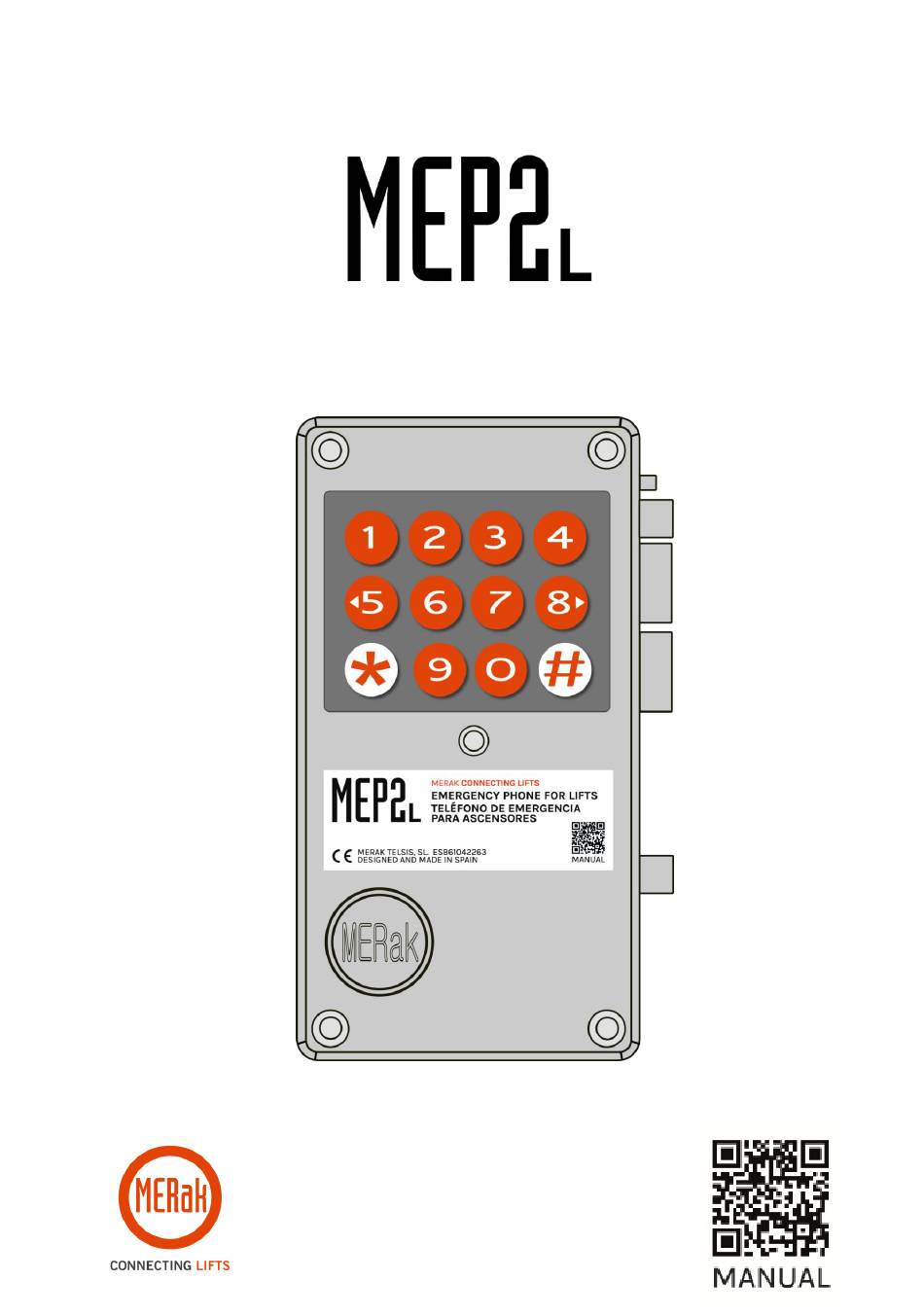

  • Page 1 COMMAND MANUAL VOICE MODE...

  • Page 2: Table Of Contents

    Programming phone number for periodic test call ..............9 Test call mode ........................... 9 Test call protocol ........................10 Test call attempts ........................10 Identifier for P100 ........................10 Rev. M2.4 © Merak. All rights reserved 2 for 22 Command Manual · Voice Mode...
  • Page 3 Alarm filtering (J2) ........................17 Auxiliary LEDs and digital output (J3) ..................18 Peripheral Connector (J4)......................19 PARAMETER LIST................ 20 TEST CALL DIAGRAM IN PROTOCOL P100 ........22 Rev. M2.4 © Merak. All rights reserved 3 for 22 Command Manual · Voice Mode...

  • Page 4: Connections

    Example of operating language query with parameter 81: PRESS RESPONSE REMARKS *81#n "Enter password" Default value 0000 0000 "Correct command" Rev. M2.4 © Merak. All rights reserved 4 for 22 Command Manual · Voice Mode...

  • Page 5: Programming Commands

    PROGRAMMING COMMANDS Language selection (81) The MEP2L incorporates a flash memory with the capacity to store up to four voice synthesis languages for car and programming messages. Unless otherwise indicated, these languages are ES, EN, FR and PO. It is possible to change one or all languages by connecting to a PC via an FTDI cable and the appropriate PC software.

  • Page 6: Maintenance Phone Number Programming

    COMMAND ACTION REMARKS n: 0. 1 Default value 0 Enables/disables *19#n 0: ignores alarm filtering input alarm filtering 1: use the filtering information Rev. M2.4 © Merak. All rights reserved 6 for 22 Command Manual · Voice Mode...

  • Page 7: Alarm Call Attempts

    Alarm call mode The Merak MEP2L phone has three modes of operation when establishing outgoing calls. It can be operated according to the strict EN 81-28 standard, in EN 81-28 standard mode with ACK call but without EOA management, or just as a hands-free phone.

  • Page 8: Ack Time (Tack)

    Set number of rings in incoming call Set ring number before picking up the call, default value is 3 and must be greater than or equal to 2 rings. When you pick up the call, the MEP2L plays the locution "Enter command” COMMAND PROGRAMMING...

  • Page 9: Incoming Call

    From any telephone with a keypad that communicates with the MEP2L, it is possible to force the hang up of the call to the MEP2L using this sequence (*0#). This is useful in those situations where the MEP2L is known not to be able to detect the line signalling corresponding to the hang-up (busy tone or dead tone), and ends up hanging up by timeout.

  • Page 10: Test Call Protocol

    1440 minutes (one day) COMMAND PROGRAMMING REMARKS Schedule test time The time in minutes, default value *24#n 4320 min (72 hours), minimum 1440 min *24* Consult test time Rev. M2.4 © Merak. All rights reserved 10 for 22 Command Manual · Voice Mode...

  • Page 11: Time For Next Test Call

    Test number 2 must NOT be *06#... #..# programmed *21#1 Retry test calls at 1 Out-of-standard test Prevent orange light from *41#0 management mode flickering Rev. M2.4 © Merak. All rights reserved 11 for 22 Command Manual · Voice Mode...

  • Page 12: Other Commands

    Record voice message Wait for the green light to start *51#..# talking. End with # (max 20 sec) *51* Voice Message Playback *52# Delete voice message Rev. M2.4 © Merak. All rights reserved 12 for 22 Command Manual · Voice Mode...

  • Page 13: Hardware And Firmware Version Check

    Parameter 11 manages the use or non-use of line signalling by the MEP2L for dial-up and hang- up tasks. By default, the MEP2L has this option enabled, so it waits for a dial tone before dialling, and hangs up once it receives a busy tone.

  • Page 14: Periodic Phone Line Check

    EMERGENCY TELEPHONE FOR LIFTS Periodic Phone Line Check The MEP2L is able to detect whether the telephone line is faulty or unavailable. This check is carried out automatically on a regular basis, at time intervals set by parameter 49. The default value of parameter 49 is 10 minutes.

  • Page 15: Configuration Of B1 And B2 Buttons No/Nc

    BEFORE you wire the NC buttons. Multi-car (FW 1.5 or higher) It is possible to share the phone line with up to 4 MEP2L phones. Do not mix different brands and models. If there is more than one phone sharing a phone line it is ESSENTIAL to assign different phone numbers to each phone using parameter 29.

  • Page 16: Wiring Diagram

    MEP2L EMERGENCY TELEPHONE FOR LIFTS WIRING DIAGRAM Rev. M2.4 © Merak. All rights reserved 16 for 22 Command Manual · Voice Mode...

  • Page 17: External Connections

    We present below the electronic scheme associated with the alarm filtering input, which is connected to terminals 4 and 5 of connector J2. As you can see in the diagram, it is an optocoupled input, so it has polarity. The supported voltage is up to 30Vdc. Rev. M2.4 © Merak. All rights reserved 17 de 22 Command Manual · Voice Mode...

  • Page 18: Auxiliary Leds And Digital Output (J3)

    Yellow 12V auxiliary LED Between J3.1 and J3.2 Green 12V auxiliary LED Between J3.1 and J3.3 4 Y 5 Auxiliary digital output Between J3.4 and J3.5 Rev. M2.4 © Merak. All rights reserved 18 de 22 Command Manual · Voice Mode...

  • Page 19: Peripheral Connector (J4)

    The J4 connector is RJ45 type and incorporates audio signals (speaker and microphone), as well as other control and power signals. Auxiliary roof and under car points connect to this port. Rev. M2.4 © Merak. All rights reserved 19 de 22 Command Manual · Voice Mode...

  • Page 20: Parameter List

    Events Battery Event Thresholds *27# *27* 00-00 99-99 3639 Events Serial Number *89* Hardware *48* Events Event Call Protocol *48# *55* Events Network monitoring *55# Rev. M2.4 © Merak. All rights reserved 20 de 22 Command Manual · Voice Mode...
  • Page 21 Reset low battery status *91# Events Reset failed test call status *92# Test Check phone line status *94# Events Reset to default settings *852# Hardware Rev. M2.4 © Merak. All rights reserved 21 de 22 Command Manual · Voice Mode...

  • Page 22: Test Call Diagram In Protocol P100

     The test server goes down  The test server in P100 sends a "D"  MEP2L responds with its identifier in a P100 protocol type 3 frame Automated assisted translation.  The server has successfully received the frame and responds with an "A"...
