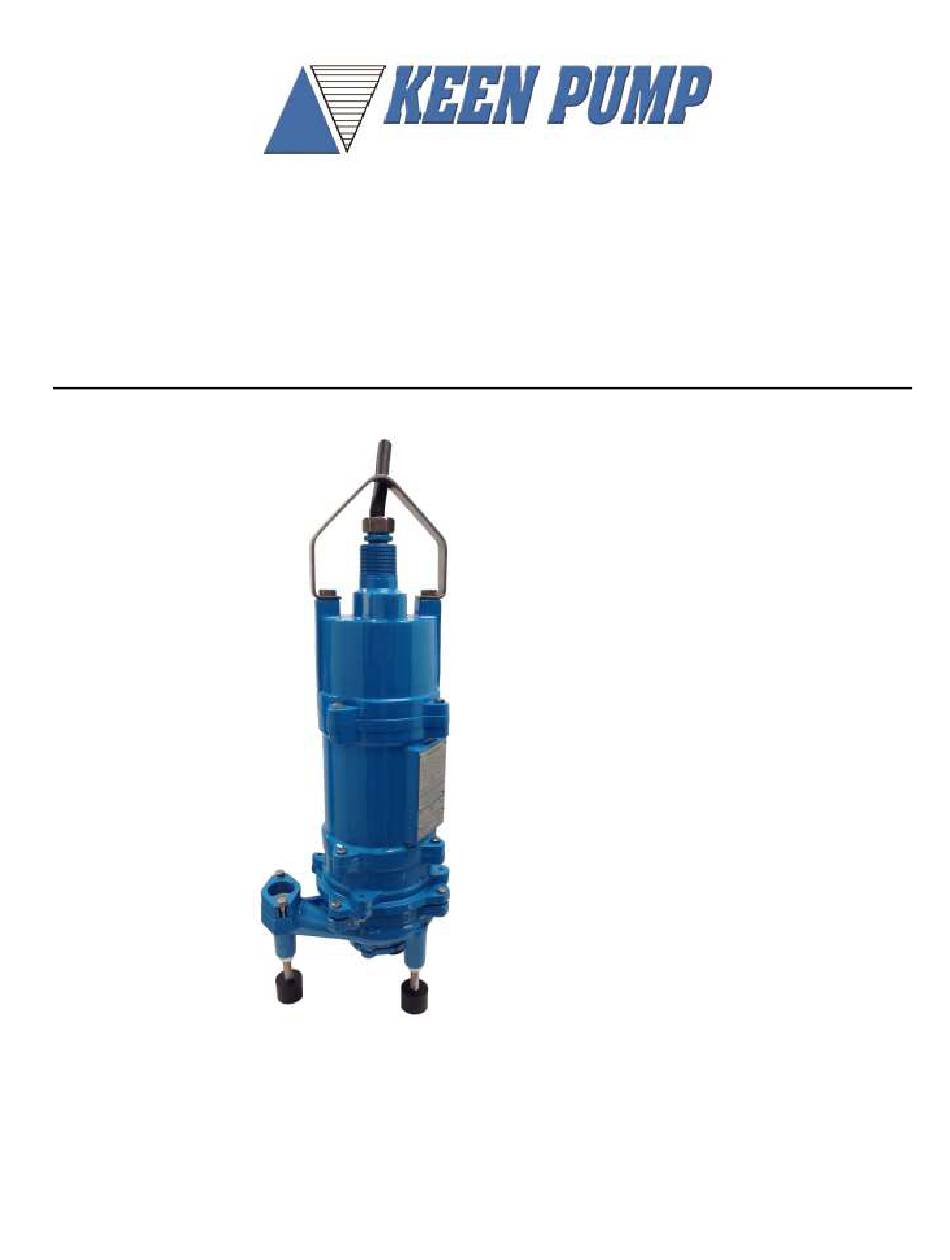

- Page 1 _________________________________________________________________________________ INSTALLATION AND SERVICE INSTRUCTIONS AND REPAIR PARTS LIST FOR 2HP CENTRIFUGAL “BUILDER’S GRADE” SUBMERSIBLE GRINDER SEWAGE PUMPS P/N O&M-BG2GRINDER...
- Page 2 01/2016 MODELS: 2hp “BG2” Series BG2-21 200 / 230 Volt, 1- Phase P/N O&M-BG2GRINDER...
- Page 3 Read all instructions in this manual before operating pump. Most accidents can be avoided by using COMMON SENSE. Please read this before installing or operating pump. This information is provided for SAFETY and to PREVENT EQUIPMENT PROBLEMS. To help recognize this information, observe the following symbols: CAUTION! Pumps build up heat and pressure during operation –...
- Page 4 For non-leaded copper alloy materials of construction, please contact factory. KEEN PUMP is not responsible for losses, injury or death resulting from a failure to observe these safety precautions, misuse, abuse or misapplication of pumps or equipment. WARNING! WARNING !
-
Page 5: Wiring Diagrams
PUMP SPECIFICATIONS: WIRING DIAGRAMS BG2-21, 200/230 VOLT, 1-PHASE P/N O&M-BG2GRINDER... -
Page 6: Pump Specifications
PUMP SPECIFICATIONS DISCHARGE…………………………. 1-1/4” NPT, Vertical LIQUID TEMPERATURE…………… 120 degrees F (Continuous) 140 degrees F. (Intermittent) MOTOR HOUSING………………….. Cast Iron, ASTM A-48, Class 30 CORD CAP…………………………… Cast Iron, ASTM A-48, Class 30 VOLUTE………………………………. Cast Iron, ASTM A-48, Class 30 SEAL PLATE…………………………. Cast Iron, ASTM A-48, Class 30 IMPELLER……………………………. -
Page 7: Installation
Installation USAGE: ELECTRICAL: The 2 HP grinder pumps are for pumping MOTOR OVERLOAD PROTECTION domestic sewage. One pump can handle the Single phase motors are provided with an sewage from a maximum of 2 homes. on-winding thermal overload switch. If motor overloads or overheats for any These pumps are not to be used for reason, the switch opens, stopping motor. -
Page 8: Troubleshooting
TROUBLESHOOTING The troubles listed below are potential problems involving the pump. Other troubles can occur from faulty control box operation. Consult control box instructions for troubleshooting list involving the control box. PROBLEM PROBABLE CAUSE Pump will not run. Tripped breaker, blown fuse, poor electrical connection, interruption of power, improper power supply. - Page 9 REPLACING GRINDER IMPELLER AND SHREDDING RING Note: This is the only disassembly operation permitted in the field. All other repairs must be performed at an authorized service center or the factory. STANDARD TOOLS REQUIRED: Standard socket wrench set. Standard set of open end wrenches.
- Page 10 PARTS LIST “BG2-21” P/N O&M-BG2GRINDER...
- Page 11 Pump Model Numbers BG2-21 REF. # DESCRIPTION QTY. PART NUMBER 2 HP Castings, Non-X proof, Non-C Pumps KGA2173 Bearing Plate, Upper, Cast Iron KGA2070 Housing, Lower Bearing, Cast Iron KGA2011 Seal Plate, Lower, Cast Iron KGA2014 Volute Case, Cast Iron KG2015 Adapter, Discharge, 1-1/4"...
- Page 12 LABOR, ETC., COSTS: Keen Pump shall in no event be responsible or liable for the cost of field labor or other charges incurred by any customer in removing and/or reaffixing any Keen Pump product, part or component thereof or any temporary pumping of other equipment.
