  • Page 1 Instruction manual Autodim Welding Helmet with ventilation unit...
  • Page 2 Warning Please read these instructions carefully before using the equipment! Incorrect use can result in danger to life and health! 1. Introduction Respiratory Systems is a combined face and breathing protection device for increased safety and comfort during welding. Please read these instructions carefully before unpacking. For proper use, see User Instructions or contact your supplier for help. Adress and telephone number information is printed at the back of this leaflet.

  • Page 3: Unpacking & Assembly

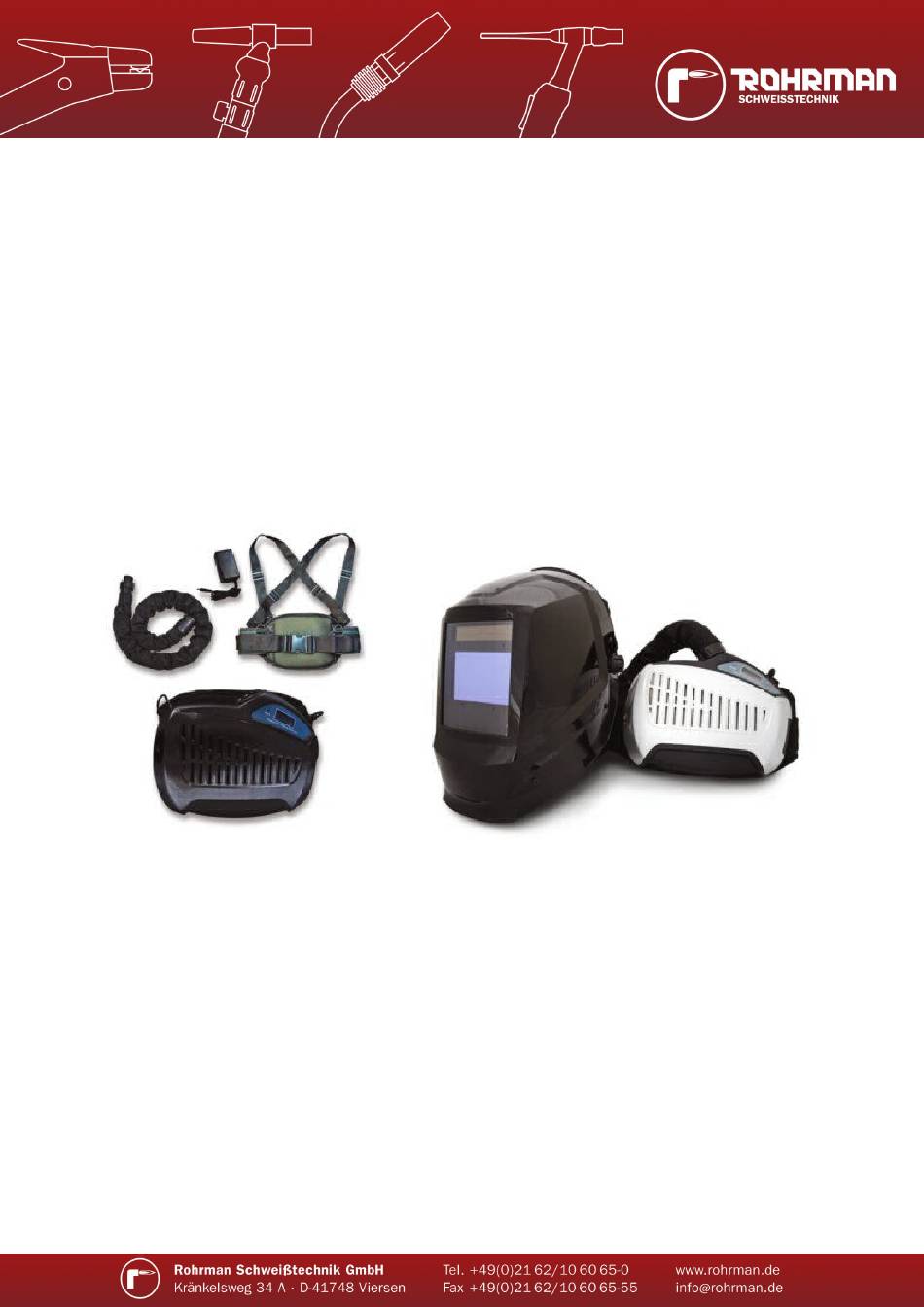

    4. UNPACKING / ASSEMBLY Check the correct number of components has been supplied, as in FIGURE 1. Check that the apparatus is complete, undamaged and correctly assembled. Any damaged or defective parts must be replaced before use. -- Open the Autodim PAPR unit and check the spark arrestor, pre-filter and filter, FIGURE 2 (A) NOTE: If it is broken, please replace it.
  • Page 4 - Connect the breathing hose between the welding head top and the Autodim PAPR blower, FIGURE 4. Check that the breathing tube is securely fastened. NOTE: If the breathing tube is broken, please replace it. The breathing tube might make a loop and get caught up by something in the surrounding area. Carefully observe the instructions that explain how the equipment is to be used, before taking it into service.
  • Page 5 5. BEFORE USE / FITTING 5.1 Battery charging, FIGURE 6. The system has a 100-240Volt, 1.5A battery charger. The battery can be charged when installed in the Autodim PAPR unit or seperately. WARNING: The battery can only be charged with supplied battery charger (Part.No.: 40.0A52010) The Filter cartridges of the Autodim Welding helmets contain Li-Ion button cell batteries.
  • Page 6 Recommended surrounding temperature at charging is between 0 to 40°C. If the charger indicator light will not light up when connecting the charger to the battery, please check the battery´s charge connector and the charger´s cords and connectors. 4. After charging is completed, disconnect the battery charger from the main supply. 5.
  • Page 7 WARNING! Leave the contaminated area immediately if: a) Any part of the system becomes damaged b) Airflow into the head top decreases or stops c) Breathing becomes difficult d) Dizziness or other distress occurs e) You tast or smell contaminants or irritation occurs f) At very high work rates, the pressure in this Autodim PAPR device may become negative at peak inhalation flow.

  • Page 8: Part List

    NOTE: There are 3 levels of air flows. Level 1 is no lower tah 165L/min, Level 2 is 200L/min and Level 3 is 230L/min. Autodim PAPR will shut down the entire circuit and switch to sleep mode if not used for more than 30 minutes. Press the "on" button to can activate the system.
  • Page 9 Part Number Description Manufacturing Date 40.0A05001A AUTODIM PAPR HELMET WITH POWERED AIR-PERIFYING RESPIRATOR (PAPR) 40.0A050011 Helmet Autodim XA-5001 Pro black 40.0A51001 Face Seal Autodim PAPR 40.0A51002 Airduct Autodim PAPR 40.0A310005 Protection window 106,0 x 66,0 x 1,0mm Polycarbonate without picture 40.0A310005...

  • Page 10: Troubleshooting

    7.2 Replacement Replacing the filter, Figure 22 a) Remove the filter cover by pressing in the latch of the filter cover (Figure 19) b) Remove the used filter by lifting it out from the filter cover. c) Install a new filter in the filter cover. (NOTE: Unauthorized filter will void the warranty and expose the user to the risk of personal injury. Do not confuse the markings on a filter relating to any standard other than EN 12941 with the classification TH2 P R SL of Autodim PAPR device when used with this filter.) d) Change the Pre-filter if needed.

  • Page 11: Specification

    10. SPECIFICATION 11. MARKING EXPLANATION Powered filtering device: EN 12941:1998 Respiratory protective devices- Powered filtering devices incorporating a helmet or a hood - Requirements, testing, marking. TH2 P R 8Sl) classification of the unit. "TH2" defines the level of protection. "P R" indicates the filter type ("P"= Particle filter, "R"=Reusable type of particle filters) and "SL"...
  • Page 12 Warranty: The Autodim PAPR Blower unit is guaranteed for a period of 12 months from date of purchase against mechanical or electrical defects. The Autodim PAPR battery is guaranteed for a period of 6 months from the date of purchase. The company undertakes to exchange or repair without charge, any part found to be defective within this period.
