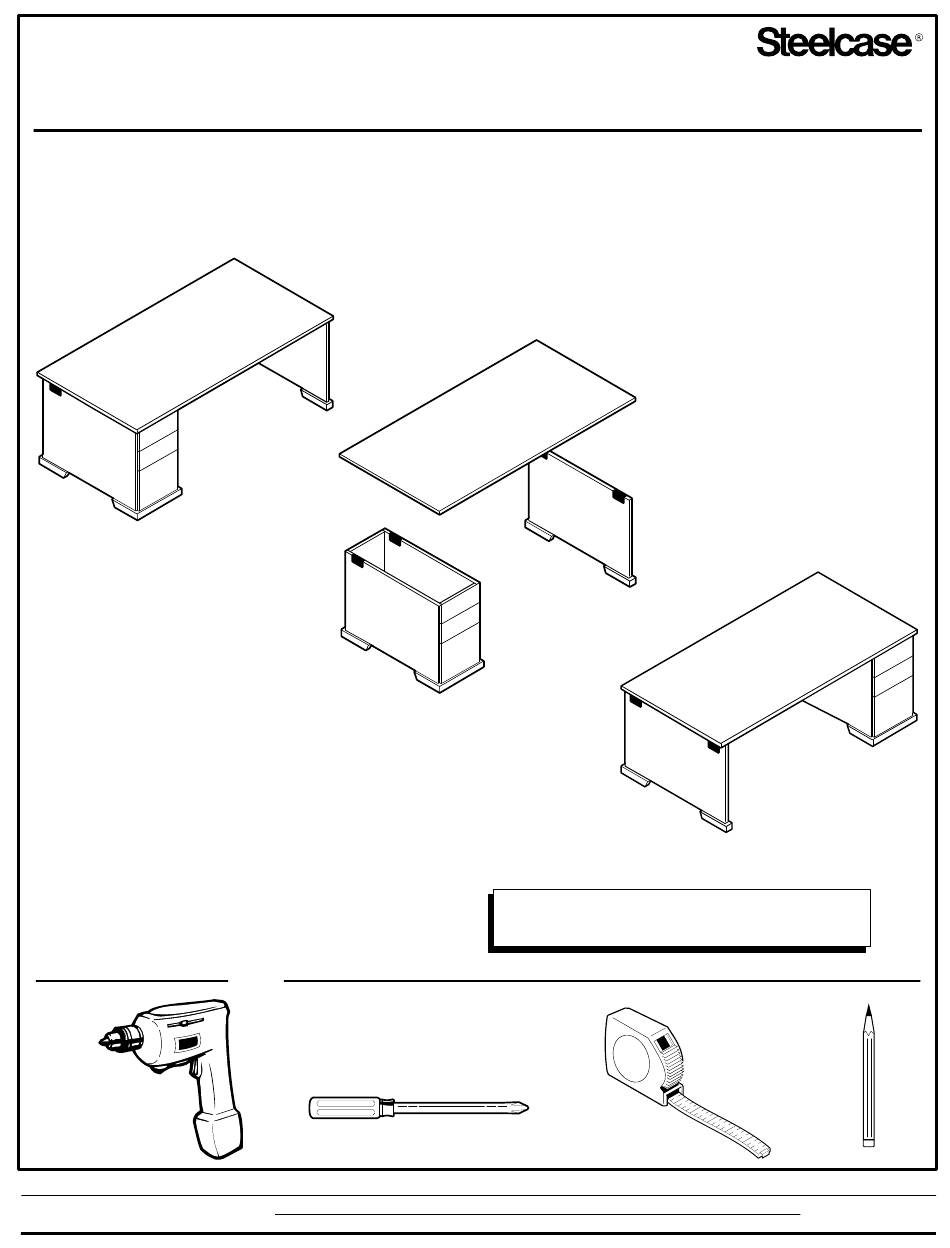

Pedestal Relocation - Single Ped Desk
This instruction will
demonstrate how to
convert a LH single ped
desk to a RH single ped desk.
Ped relocation for RH to LH
will be accomplished in this same
manner.
Power Driver
with Phillips tip
Assembly Directions
Tools
Posi-Drive
- Arbor
- Ashbury
NOTE: Be certain to save all screws
and hardware as you remove them.
Rev. B
93-9501794
Advertisement
Table of Contents
Related Manuals for Stellcase RH
Summary of Contents for Stellcase RH
- Page 1 - Ashbury This instruction will demonstrate how to convert a LH single ped desk to a RH single ped desk. Ped relocation for RH to LH NOTE: Be certain to save all screws will be accomplished in this same and hardware as you remove them.
- Page 2 Remove drawers and end port. Place pad on floor and carefully flip unit over onto it's top. Page 2 of 8 93-9501794...
- Page 3 SCREWS WITH Remove screw with sleeve SLEEVES from lock tape. (ACTUAL SIZE) LOCK TAPE (4) SCREWS Remove lock assembly. (ACTUAL SIZE) (3) SCREWS #10 x 1.50" FLAT HD Remove skirt from rear of unit. 93-9501794 Page 3 of 8...
- Page 4 CAM LOCKS (5) SCREWS 8-15 x .625" PAN HD HALF TURN Remove (5) screws through angle bracket. Loosen cam locks (in modesty panel). Pull end panel straight off steel dowels. (4) 5 mm x .62" EURO SCREWS (2) SCREWS 8-15 x .625" PAN HD Remove connector bracket and (2) angle brackets to...
- Page 5 (2) SCREWS PER STRETCHER Remove pedestal from top. NOTE: The unit is now completely disassembled. Use the following steps to move the pedestal to the other side and reassemble. PIN IN BOTTOM OF STRETCHER WILL FIT INTO OTHER END OF SLOT TO LOCATE PEDESTAL.
- Page 6 (A) Remove angle brackets and reinstall on opposite surface (pilot holes provided). (B) Flip panel 180 as shown and lower into position. HALF TURN Install screws in these holes first to pull ped and panel tightly together. Slide modesty panel onto steel dowels of end panel and turn camlocks. Make sure locating pin on stretcher is in groove, then push pedestal tight to modesty panel and secure with connector bracket.
- Page 7 Reinstall skirt onto assembly. 1/4" from outside edge of end panel FRONT TO BACK LOCATION (PROFILE VIEW) ASHBURY ARBOR Install top drawer. Pencil in outline of lock housing opening. (for side to side location) LOCK ASSEMBLY Remove drawer and install lock housing (in locked position).
- Page 8 Align lower lock pin with positioning hole in ped. Tape in place. Install screw with sleeve through hole in white lock Align lower pin with hole. tape and into black lock tape DO NOT OVERTIGHTEN. TAPE Remove tape. SCREW WITH SLEEVE (ACTUAL SIZE) WHITE...
