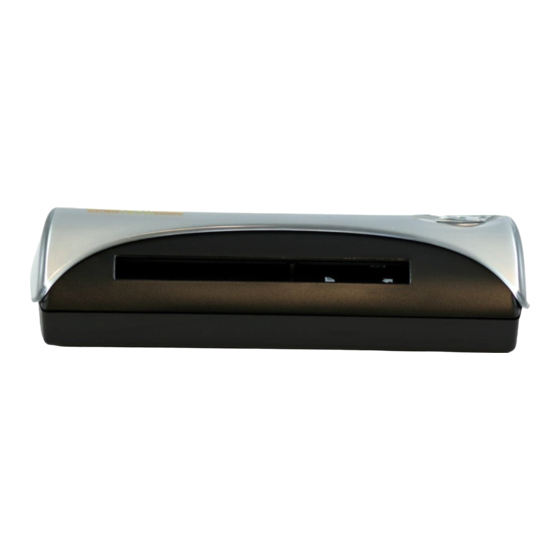

ScanShell 800R/NR
The mobile A6 ScanShell 800R/NR sheet-fed twain compatible
color scanning device which interfaces to any standard USB
port. It is the scanning solution of Photo, Business Card, Bank
Check, ID card, driving License, and Lottery Ticket. The ideal
compact design and scanning quality makes it a perfect
companion for your computer facility. Saving and keeping the
information of Bank Check, ID Card, and Photo quickly and
clearly.
Dimension of ScanShell 800R/NR
L x W x H: 7.5" x2"x1.7" (190mm x 51mm x 44mm)
Weight: 8.4 ounce (240g)
Cable length: 60 inches (152cm) , detachable
System Requirements
Windows Vista, XP, 2000, ME, & 98SE
Pentium 100MHz or higher CPU
64MB of DRAM or above
VGA monitor with true color and at least 800x600 pixels
60 MB free disk space
One USB port
A CD-ROM drive
Scanner Specification
Image sensor: Linear color CMOS
Optical Resolution: 600 dpi
Interface: USB 2.0 (High speed)
Power Consumption: 0.2W Stand-by, 2.0W during Scan, fully USB powered!
Scanning Area: 4.13"x10" (LXW) (105mm x 254mm) 6 format
Scan Speed: 6 ppm (page per minut) B&W, 3 ppm color
Scan Modes: 48-bit color (internal), 24-bit color (output), 8-bit grayscale, 1-bit B&W
Paper Sensor: Electro-Mechanical
Paper Thickness: 0.1mm to 1.5mm
Regulatory Requirements: FCC Class B, CE, USB-IF.org
Environmental Requirements: WEEE, RoHS
© 2005 All rights reserved to CSSN card scanning solutions
