Sealey AP6350.V3 Quick Start Manual

Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to
Wear protective
instructions
gloves
1. SAFETY
WARNING! ensure Health & Safety, and local authority regulations are adhered to when assembling and using this rack.
‰
locate rack in a suitable area where it will not be an obstruction.
9
Keep the general area clean, uncluttered and ensure there is adequate lighting.
9
WARNING! erect rack on a level and solid surface such as concrete.
‰
Keep children and unauthorised persons away from the storage area.
9
DO NOT use the rack for any purpose other than that for which it is are designed.
8
DO NOT site the rack out of doors.
8
DO NOT get the rack wet or use in damp or wet locations or areas where there is condensation.
8
DO NOT clean the shelf supports with any solvents which may damage the surface.
8
ensure that the rack is properly assembled before loading them with heavy items.
9
WARNING! maximum load for each shelf is 350kg.
‰
Where possible the rack should be fixed to the wall with suitable fixings
9
Place heavier items on the lower shelves.
9
Heavier items should be evenly distributed across the shelves.
9

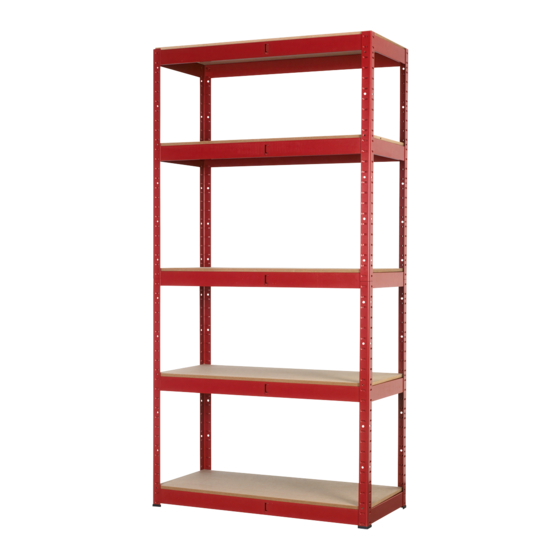

2. INTRODUCTION
Fully painted steel/galvanised frame with five mdF shelves (AP6350 painted/AP6350GS galvanised). 350kg capacity per level giving a maximum
capacity of 1750kg per rack. no nuts and bolts for easy assembly. Clips together in minutes. Two piece uprights allow use as a single bay rack, or
split in two separate shelf systems or workstations.
3. SPECIFICATION
model no.......................... .............. AP6350.V3/AP6350GS.V3
Coating..................................... .................... .Paint/Galvanised
Height.................................. ........................................1800mm
Width.................................... .........................................900mm
depth..................................... ........................................400mm
Weight ............................................................................ 21kg
4. CONTENTS
o
Carefully unpack the product and check the contents against the list below. Should any items be missing or damaged make immediate
contact with your Sealey stockist.
© Jack Sealey limited
RACKING UNIT WITH 5 SHELVES
(350KG CAPACITY PER LEVEL)
AP6350.V3 & AP6350GS.V3
model no:
Original Language Version
AP6350.V3, AP6350GS.V3 | Issue 1 16/11/18
