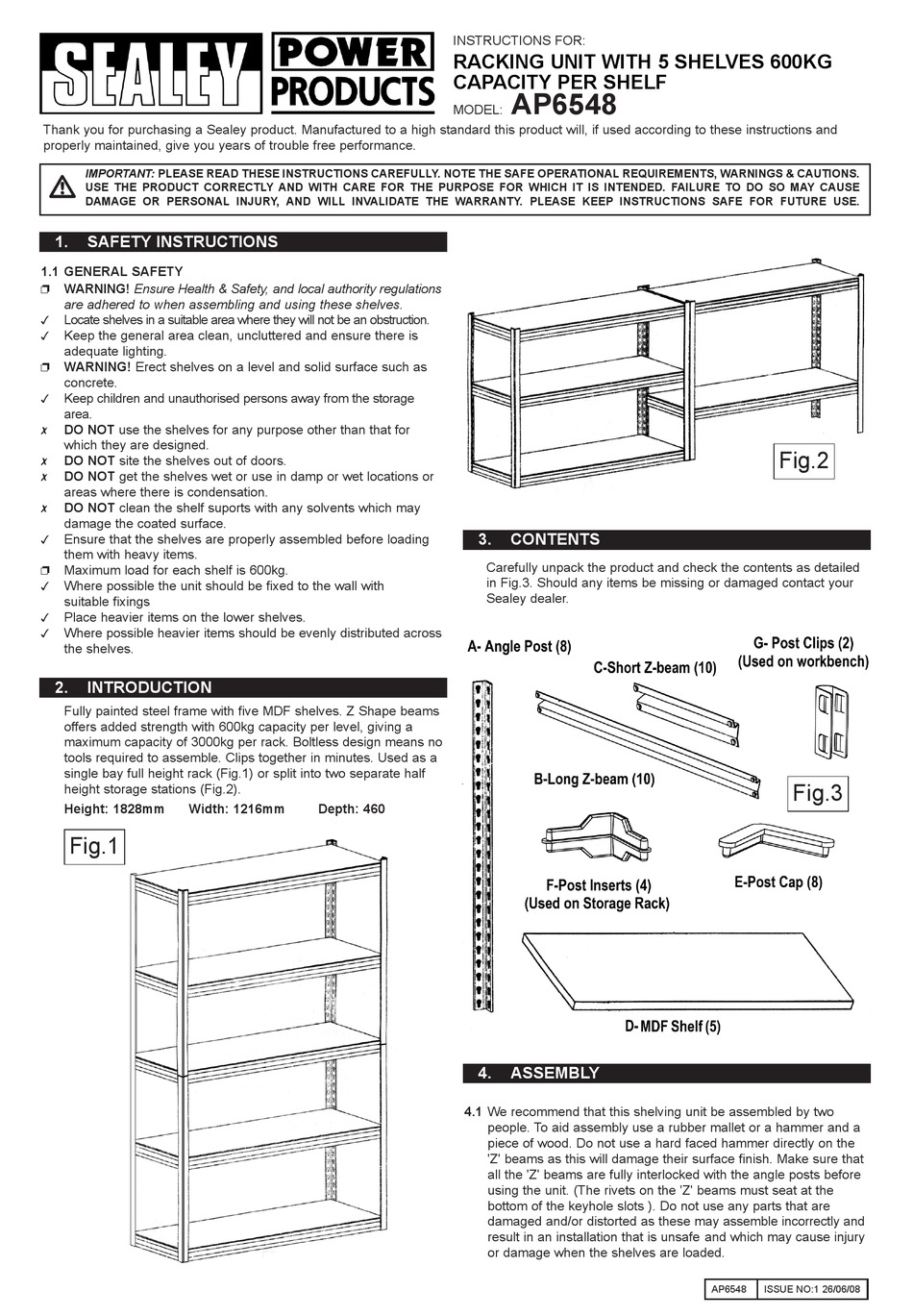

Sealey AP6548 Instructions

thank you for purchasing a sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: please ReaD these instRuctiOns caRefully. nOte the safe OpeRatiOnal ReQuiReMents, WaRnings & cautiOns.
use the pRODuct cORRectly anD With caRe fOR the puRpOse fOR Which it is intenDeD. failuRe tO DO sO May cause
DaMage OR peRsOnal inJuRy, anD Will invaliDate the WaRRanty. please keep instRuctiOns safe fOR futuRe use.
1. safety instRuctiOns
1.1 geneRal safety
WaRning! Ensure Health & Safety, and local authority regulations

are adhered to when assembling and using these shelves.
Locate shelves in a suitable area where they will not be an obstruction.

Keep the general area clean, uncluttered and ensure there is

adequate lighting.
WaRning! Erect shelves on a level and solid surface such as

concrete.
Keep children and unauthorised persons away from the storage

area.
DO nOt use the shelves for any purpose other than that for

which they are designed.
DO nOt site the shelves out of doors.

DO nOt get the shelves wet or use in damp or wet locations or

areas where there is condensation.
DO nOt clean the shelf suports with any solvents which may

damage the coated surface.
Ensure that the shelves are properly assembled before loading

them with heavy items.
Maximum load for each shelf is 600kg.

Where possible the unit should be fixed to the wall with

suitable fixings
Place heavier items on the lower shelves.

Where possible heavier items should be evenly distributed across

the shelves.
2. intRODuctiOn
fully painted steel frame with five MDf shelves. Z shape beams
offers added strength with 600kg capacity per level, giving a
maximum capacity of 3000kg per rack. Boltless design means no
tools required to assemble. clips together in minutes. used as a
single bay full height rack (fig.1) or split into two separate half
height storage stations (fig.2).
height: 1828mm Width: 1216mm
fig.1
InstructIons for:
Racking unit With 5 shelves 600kg
capacity peR shelf
MoDEL:
3.
carefully unpack the product and check the contents as detailed
in fig.3. should any items be missing or damaged contact your
sealey dealer.
Depth: 460
4.
4.1 We recommend that this shelving unit be assembled by two
people. to aid assembly use a rubber mallet or a hammer and a
piece of wood. Do not use a hard faced hammer directly on the
'Z' beams as this will damage their surface finish. Make sure that
all the 'Z' beams are fully interlocked with the angle posts before
using the unit. (the rivets on the 'Z' beams must seat at the
bottom of the keyhole slots ). Do not use any parts that are
damaged and/or distorted as these may assemble incorrectly and
result in an installation that is unsafe and which may cause injury
or damage when the shelves are loaded.
ap6548
cOntents
asseMbly
fig.2
fig.3
AP6548 IssuE no:1 26/06/08
