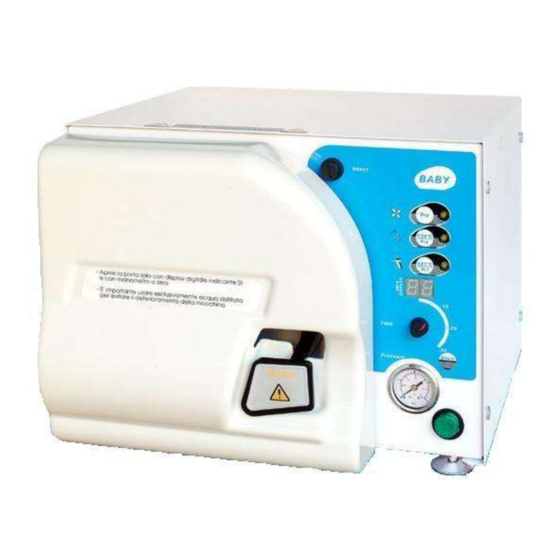

- Page 1 Cod.4073 Operation and maintenance manual STEAM AUTOCLAVE MODEL STERILX BABY...
-
Page 2: Table Of Contents
Manuale di uso e manutenzione – Sterilizzatrice a vapore mod. Sterilix Baby Thanks you for having bought one of its products and asks you to read this manual. The manual contains all the information you require in order to use the machine you have purchased. Please carefully comply with the instructions given in the manual and carefully read all its parts. -
Page 3: Introduction
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 1. INTRODUCTION The machine described in this operation and maintenance manual is a steam sterilizer that has been specially designed to sterilize most of the materials and instruments used in dental surgeries, doctors' surgeries and hospitals in general. -
Page 4: Technical Specifications
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 2. TECHNICAL SPECIFICATIONS This autoclave as been designed and built in compliance with the operators' need for functionality, practical use and safety. This autoclave has functional characteristics that make it unique, i.e.: ... - Page 5 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby Description Unit of Values measurement Power source voltage rating Alternata 230 ~ Power source frequency 50/60 Machine power rating 1000 Boiler volume Ø 170 x 270 Operating pressure 2.1 - 1.1 Machine dimensions X, Y, Z 390 x 370 x 300 Gross weight...
-
Page 6: General Recommendations
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 3. GENERAL RECOMMENDATIONS 3.1 Regulations for the operator Always wear personal protective equipment in compliance with the directives that establish the current accident-preventing provisions. Do not approach the machine with inflammable materials. ... -
Page 7: Location Of The Controls
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 4. LOCATION OF THE CONTROLS Autoclave features an elegant casing treated with scratch-proof epoxy powder paint in the RAL 7035 COLOUR. No particular preparations are required to operate the machines. Just fit the plug into a 230 V power socket. - Page 8 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 1 TRAY HOLDER, 2 TRAYS, 1 TOOL TO TAKE OUT THE TRAYS AND ADJUST THE DOOR, 1 SPONGE, 1 INSTRUCTION MANUAL, 1 10 LITER CAN, 1 250 CC DISPENSER. DESCRIPTION OF THE REAR PART 12) Power cable with Shuko France plug.
-
Page 9: Starting And Setting At Work
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 5. STARTING AND SETTING AT WORK 5.1 Removing the machine from the packing The machine is consigned packed on a wooden pallet out a cardboard box: make sure that there are no dents and that the wrapping is in optimum conditions. -
Page 10: Installation And Preliminary Inspections
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 5.2 Installation and preliminary inspections The installer is obliged to make sure that the place in which the sterilizer is installed is fit for that purpose (CEI 62/4). The machine is sent packed on a wooden pallet. Make sure that the packing has not been damaged and that everything is in a perfect condition. -
Page 11: General Instructions For Use
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 6. GENERAL INSTRUCTIONS FOR USE 6.1 Method of use a) Open the door by means of the device (10). b) Turn on the main switch (7). c) Arrange the instruments on the supplied Trays without overlapping the packets. The maximum load allowed is 1 kg. -
Page 12: How To Arrange The Instruments For The Sterilizing Process
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 7.HOW TO ARRANGE THE INSTRUMENTS FOR THE STERILIZING PROCESS 7.1 Standard sterilizing Before being sterilized, the instruments must be cleaned to remove blood residues, incrustations, foreign bodies, etc. These impurities can damage the items being sterilized, the autoclave components and prevent the sterilizing process from being correctly carried out. -
Page 13: Sterilizing Cycles
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 8. STERILIZING CYCLES 8.3 Sterilizing table Rev. 00 del 03-01-2007 - \\SERVER2012\oo\SETTORE DENTALE\BABY\MANUALI Pag. 13 of 26 ISTRUZIONE\Baby GB- R00.doc... -
Page 14: Notes And Warnings
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby * Until he has acquired enough experience in using the autoclave, the operator must check to make sure that the operating pressure does not last less than the minimum effective sterilization minutes indicated in the table. -
Page 15: Faults
Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 9. FAULTS 9.1 Troubleshooting: Solutions / Remedies FAULTS CAUSES REMEDIES - Board burnt-out - Replace the board The timer fails to operate (5) - Check fuse F1A on the board - Power is not reaching the board with a tester - Pressure gauge (6) blocked or... - Page 16 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 10. MAINTENANCE Carry out the maintenance operations with the machine at a standstill, after having removed the plug from the power socket and after having allowed the components to cool down. The declaration of conformity to the standards in force is not valid unless the maintenance operations described below are carried out.
- Page 17 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby 10.4 Monthly routine maintenance Lubricate the pins and locking mechanisms. Check the movement of the hinge and door locking pin. Lubricate with Vaseline oil. Make sure that the door is well regulated. If it is excessively slack, it must be adjusted by means of the supplied wrench.
- Page 18 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby ELECTRICAL SYSTEM : Rev. 00 del 03-01-2007 - \\SERVER2012\oo\SETTORE DENTALE\BABY\MANUALI Pag. 18 of 26 ISTRUZIONE\Baby GB- R00.doc...
- Page 19 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby HYDRAULIC PLANT : Rev. 00 del 03-01-2007 - \\SERVER2012\oo\SETTORE DENTALE\BABY\MANUALI Pag. 19 of 26 ISTRUZIONE\Baby GB- R00.doc...
- Page 20 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby SPARE PARTS 4404 Cavo con spina 3240 Sfiato termodinamico 1374 Valvola di sicurezza 3848 Beaker 250 ml 1542 Fusibile 5x20 T10A 3071 Maniglia verniciata 0396 Termostato automatico 3968 Porta tray 3937 Resistenza 500W 1730...
- Page 21 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby FORM RETURN REPARATION OF REVERBERI ARNALDO S.R.L To be filled by the technician AUTOCLAVES Via Don Luigi Sturzo n°6 42021 Barco di Bibbiano or an authorized person Reggio Emilia – ITALY Tel.
- Page 22 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby ACCEPTANCE FOR THE REPAIR Date………………………………………………………………………Stamp and Signature……………………………………………………………… It is obligatory for the installer to fill out all parts of this form and to declare that he has complied with all the conditions ensuring that the appliance is correctly installed in compliance with sect.
- Page 23 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby WARRANTY This document certifies that the appliance has been correctly manufactured. Carefully read the instruction manual before forwarding complaints. The appliance will be repaired if it operates in a faulty way during the warranty period owing to manufacturing defects, the manufacturer's judgement over such matters being final.
- Page 24 Operation and Maintenance Manual – Steam sterilizer mod. Sterilix Baby WARRANTY CERTIFICATE and stamped APPLIANCE: The undersigned reseller certifies that the warranty has been examined and certifies that the appliance has been consigned and installed in compliance with the instructions given by the manufacturer on:……………………………………………………………………………………………..
- Page 25 Fax 0039 ( 0 )522 / 875579 BARCO, 03-01-09 SUBJECT: TRACEABILITY OF THE AUTOCLAVES REVERBERI S.R.L. IS OBLIGED TO BE ABLE TO TRACE ITS PRODUCTS THROUGH TO THE END USER. THUS, THE PERSON IN CHARGE OF THE WAREHOUSE AND/OR THE DEALER SHALL OBLIGATORILY KEEP THE TRANSPORT DOCUMENTS BEARING THE SERIAL NUMBERS OF THE AUTOCLAVES IN THEIR FILES FOR AT LEAST 10 (TEN) YEARS.
- Page 26 M9010/56 STERILIX BABY La Reverberi s.r.l. dichiara sotto la propria responsabilità che i prodotti elencati sono conformi alle norme: La maison Reverberi s.r.l. déclare sous sa responsabilité que les produit enumeres sont conformes aux directives: The company Reverberi s.r.l. declare under own exclusive responsability that the product listed are in conformity with the normatives: Reverberi s.r.l.
