Design, manufacture, sales & service of
pneumatic tools
OPERATION AND MAINTENANCE MANUAL
THIS MANUAL INTO THE HANDS OF THE OPERATOR.
FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
PERMON s.r.o.
Roztoky
27023 Křivoklát
CZECH REPUBLIC
SEIT 1826 - SINCE 1826
VK 23
tel:
+420 (0)313 558145
+420 (0)313 558271-4
fax:
+420 (0)313 558313
email:
export@permon.cz
www.permon.cz
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Permon VK 23
Summary of Contents for Permon VK 23

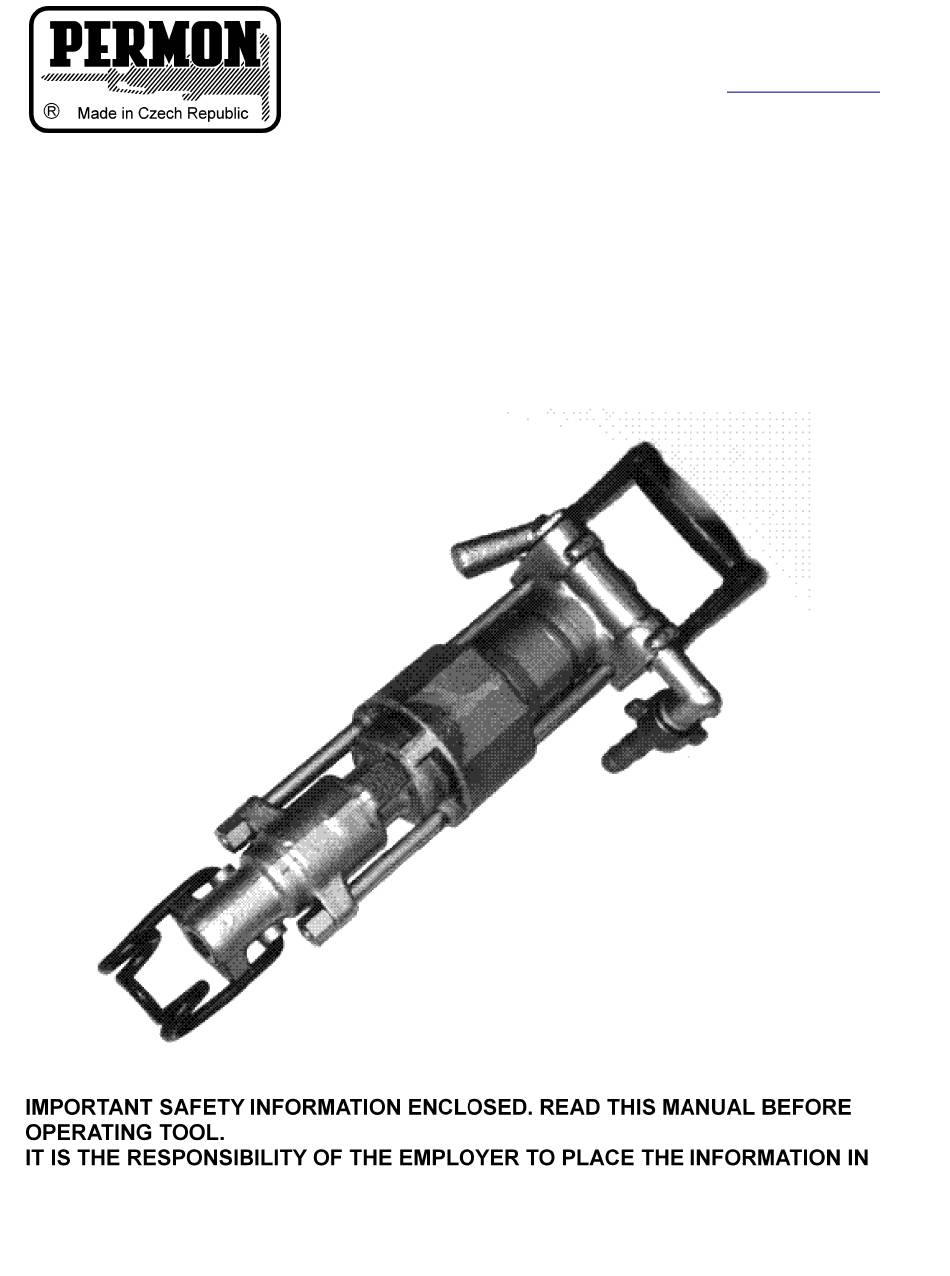

- Page 1 Design, manufacture, sales & service of SEIT 1826 - SINCE 1826 pneumatic tools OPERATION AND MAINTENANCE MANUAL VK 23 THIS MANUAL INTO THE HANDS OF THE OPERATOR. FAILURE TO OBSERVE THE FOLLOWING WARNINGS COULD RESULT IN INJURY.
- Page 2 The recommended drilling range is 6 – 8 m with a diameter of 45 mm or 1 – 2 m with a diameter of 62 mm. Permon is not responsible for any customer's modifications of tools for applications on which Permon was not consulted.
- Page 3 • Do not indulge in horseplay. Distraction can cause accidents. • Keep hands and fingers away from the throttle lever until it is time to operate the tool. • Never rest the tool or drill steel on your foot. • Never point the tool at others. •...
- Page 4 Accessory Installation Always turn off the air supply and disconnect the air supply hose before installing, removing or adjusting any accessory on this tool or before performing any maintenance on this tool. Failure to do so could result in an injury.
- Page 5 Disassembly of the flushing valve: Screw off the plug (20) with the ring (19) from the cylinder head (3). Remove the spring (23), starting rod (16) and the starting pin (15). If necessary, remove inner piece (14) with rings (17, 18). Disassembly of the starting lever and air inlet: Press out the pins (7) and remove balls (6) through the free holes –...
- Page 7 Parts List REF. PART NO. PART NAME QTY. REQ. NOTES SET VK23 9403-470 5091-436 CYLINDER 5002-313 PISTON 5253-991 CYLINDER HEAD 4500-731 SPRING ARRESTING PIN 3071-040 BALL 3/16“ 324393 PIN 6x31 3040-690 321020 SUPPLY ELBOW R1 4424-391 SUPPLY ELBOW Rd 4424-100 RING O 40x32 273034 DIRECT VALVE Js13...
- Page 8 3925-102 DISTRIBUTION COVER 3902-091 DISTRIBUTION RING 2068-320 TANG NUT RING O 70x3 273036 IMPACT SLEEVE 2261-501 STOP 4207-060 DRILL BUSHING 22x108 2089-931 CARRIER 0441-040 CYLINDER COVER 5152-021 SPRING 22x108 4760-100 8011-062 STIRRUP 3140-101 4501-330 SPRING RING 2045-170 3050-080 PIN 3X12 311198 QUICK COUPLING 414290...
