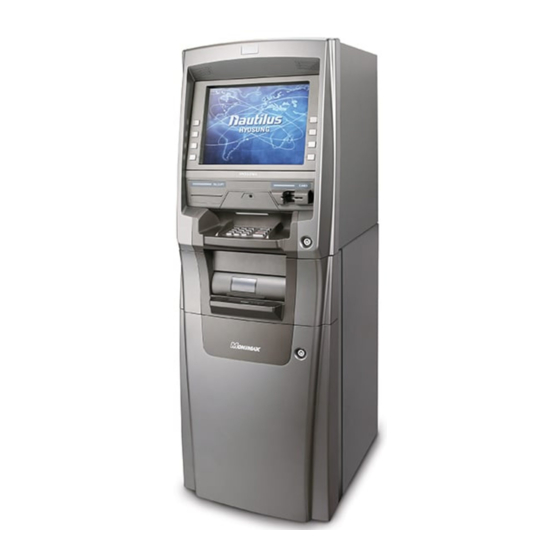

Installation Manual
MONiMAX5300SE System
V01.00.00 (2016. 3. 14)
© 2016 Nautilus Hyosung Inc. All Rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Monimax 5300SE and is the answer not in the manual?

Questions and answers

Related Manuals for Nautilus Hyosung Monimax 5300SE

Summary of Contents for Nautilus Hyosung Monimax 5300SE

  • Page 1 Installation Manual MONiMAX5300SE System V01.00.00 (2016. 3. 14) © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 2 Version Date Description of Change Chapter V01.00.00 2016/03/14 New Publication © 2016 Nautilus Hyosung All Rights Reserved. The content of this specification is protected by copyright laws. 2016. 3. 14. 1st Release © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 3: Table Of Contents

    Installation and Service Clearance ....................... 3-8 Biz Type ..............................3-8 Level-1 Type ............................3-10 Chapter4. System Installation ....................... 4-1 Unpacking the ATM ............................4-1 Bolting Down the MX5300SE ........................4-2 Notes ............................Notes-1 © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 4: Chapter1. Preface

    ▶ If any question or installation error occurs while preparing for and installing MX5300SE in compliance with this manual, please contact maintenance staffs of Nautilus Hyosung. For the contact of maintenance staffs of Nautilus Hyosung, see the E-mail addresses and telephone numbers provided separately.

  • Page 5: Terminologies

    Europay, Mastercard, Visa Elementary Program Encryption PIN Pad Hardware Interface International Standard Organization Journal Printer Liquid Crystal Display Magnetic Card Unit Operation Panel for Customers to Operate OSD board On Screen Display Board © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 6 Power Supply Personal Identification Number Panel Control Board Printer (mainly Receipt Printer) Switch Sensor and Indications Unit Service Provider Slip Printer (Receipt Printer) Text Terminal Unit (OPL or SPL) Vacuum Fluorescent Display © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 7: Safety Precautions (English)

    ▪ Do not touch the equipment when it is running. ▪ The equipment can get extremely hot and may cause a burn. ▪ Make sure to close the cover before running the equipment. © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 8 TYPE. DISPOSED OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS 3. FOR PLUGGABLE EQUIPMENT, THE SOCKET-OUTLET SHALL BE INSTALLED NEAR THE EQUIPMENT AN SHALL BE EASILY ACCESSIBLE 4. THE EQUIPMENT IS TO BE SECURED TO THE BUILDING STRUCTURE BEFORE OPERATION © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 9: Précautions Pour La Sécurité (French)

    • Ne pas retirer le couvercle. Seul le technicien d'entretien est autorisé à ouvrir le couvercle. • Ne pas toucher. Vous pouvez avoir un choc électrique. • Assurez-vous d'éteindre l'appareil lors de l'entretien de l'équipement. © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 10 2. RISQUE D'EXPLOSION SI LA BATTERIE EST REMPLACEE PAR UN TYPE INCORRECT. DISPOSER POUR UTILISATION DES BATTRIES SELON LES INSTRUCTIONS 3. POUR LES APPAREILS RACCORDES, LA PRISE DOIT ETRE INSTALLEE PRES D’EQUIPEMENT POUR ÊTRE FACILEMENT ACCESSIBLE © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 11: Related Document

    4. L’EQUIPEMENT DOIT ETRE SECURISE A LA STRUCTURE DU BATIMENT AVANT D'UTILISER Related Document ▶ The related documents are listed as follows. If needed, please contact staffs of our technical support team and maintenance team. ▪ Operator Manual ▪ Service Manual © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 12: Chapter2. Introduction

    Allows tellers to calculate and close amount faster than the existing manual calculation. Allows easy and quick installation and maintenance. © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 13: Chapter3. Installation Information

    2. Avoid locations where strong static electricity can occur. 3. The floor must allow easy wheelchair access from the front or the side. 4. Space required for servicing the machine should be considered before installation. © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 14: Exterior Dimensions

    Installation Manual Chapter3. Installation Information Exterior Dimensions Biz Type ► Front View © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 15 Installation Manual Chapter3. Installation Information ► Side View © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 16 ► Top View 1. Out Door Bezel Opened <Note!> The measurements of above picture are in metric. For inch scale, see the table below. 960.1mm (37.8inch) 570.8mm (22.47inch) 459.1mm (18.07inch) 451.9mm (17.79inch) 501.1mm (19.73inch) © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 17 Chapter3. Installation Information 2. Front Door Opened <Note!> The measurements of above picture are in metric. For inch scale, see the table below. 909.4mm (35.80inch) 631.3mm (24.85inch) 460.4mm (18.12inch) 448.2mm (17.64inch) 449.1mm (17.68inch) © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 18: Level-1 Type

    Installation Manual Chapter3. Installation Information Level-1 Type ► Front View © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 19 Installation Manual Chapter3. Installation Information ► Side View © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 20: Installation And Service Clearance

    ► Following diagram is describing the areas required for installing and servicing the MX5300SE (Biz type). Hyosung recommends it is more convenient for your service personnel to have enough maintenance space as described below to service this ATM. 1. Top View © 2016 Nautilus Hyosung Inc. All Rights Reserved.
  • Page 21 Installation Manual Chapter3. Installation Information 2. Side View © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 22: Level-1 Type

    ► Following diagram is describing the areas required for installing and servicing the MX5300SE (Level-1 type). Hyosung recommends it is more convenient for your service personnel to have enough maintenance space as described below to service this ATM. 1. Top View © 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-10...
  • Page 23 Installation Manual Chapter3. Installation Information 2. Side View © 2016 Nautilus Hyosung Inc. All Rights Reserved. 3-11...

  • Page 24: Chapter4. System Installation

    ▪ Firmly close the vault door and lock the door by turning the knob completely. ▪ Only experienced staff members should move the heavy machine. ▪ Do not tilt the ATM when moving. © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 25: Bolting Down The Mx5300Se

    3. 5. Place the MX5300SE on the bolt location sheet, matching the mounting holes of the unit with the anchors. 6. Firmly tighten the mounting bolts in the anchors. © 2016 Nautilus Hyosung Inc. All Rights Reserved.

  • Page 26: Notes

    Installation Manual Notes Notes © 2016 Nautilus Hyosung Inc. All Rights Reserved. Notes-1...
