CUT SHEET:
SAGEGLASS SWITCH
PRODUCT
OVERVIEW

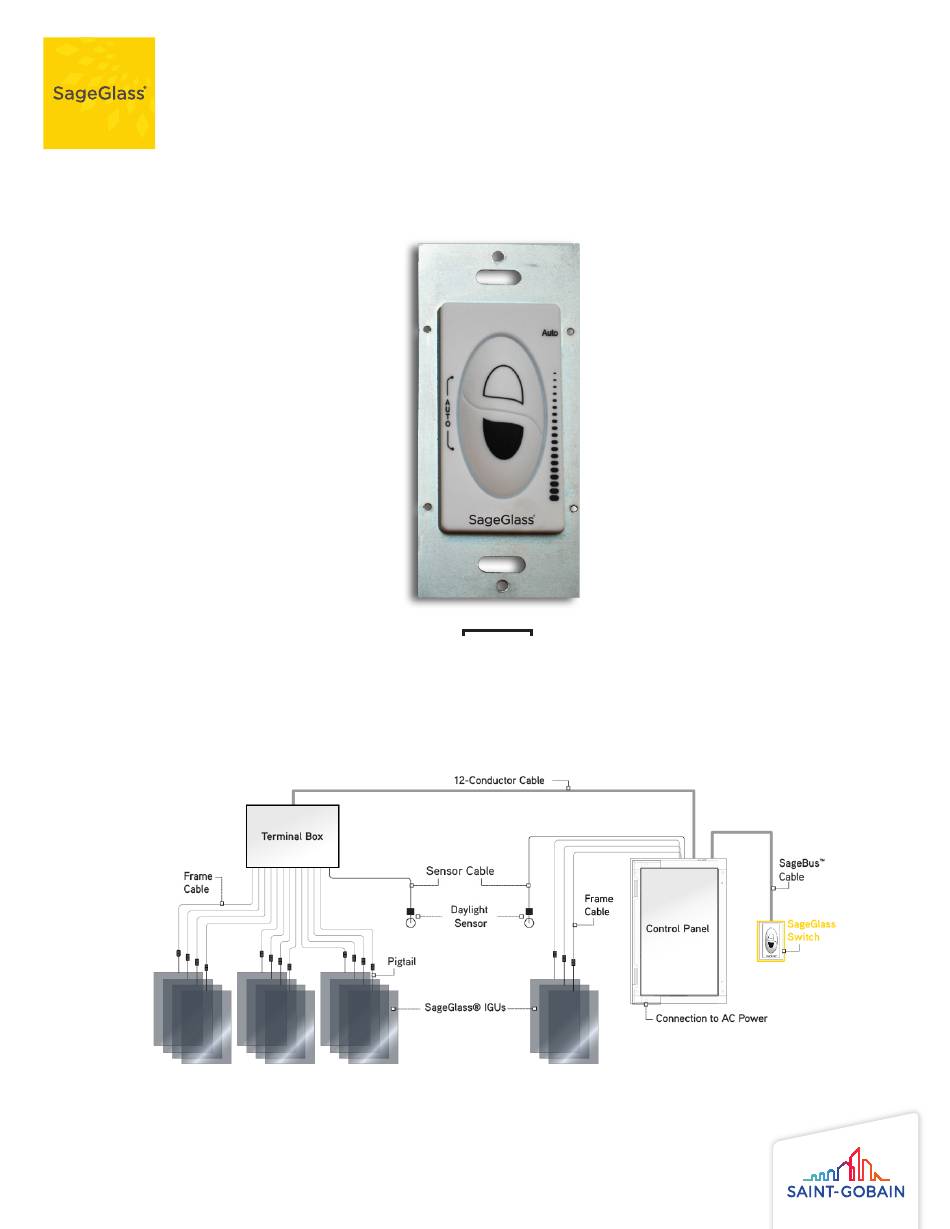

The SageGlass

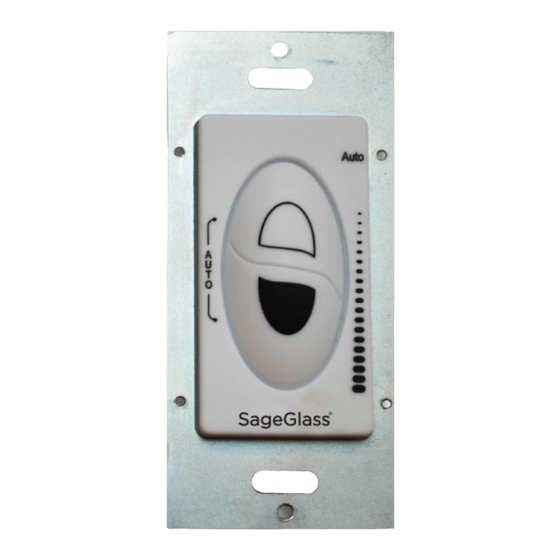

Switch provides manual override control for one or more zones of insulating glass units (IGUs). The
®
SageGlass Switch includes a user interface keypad and mounting kit for installation in a single or multi-gang box. The keypad
is typically located in the same room that contains the SageGlass IGUs, but this is not a requirement. One or more switches
can be used to control the same zone of IGUs; similarly, one switch may control multiple zones.
The SageGlass Switch contains a tint button, clear button and five LEDs: Automatic Mode,
Full Clear, Level 1, Level 2 and Full Tint. The buttons are used to control the SageGlass IGUs while
the LEDs indicate the current IGU tint level.
Advertisement
Related Manuals for SAINT-GOBAIN SageGlass Switch
Summary of Contents for SAINT-GOBAIN SageGlass Switch
- Page 1 ® SageGlass Switch includes a user interface keypad and mounting kit for installation in a single or multi-gang box. The keypad is typically located in the same room that contains the SageGlass IGUs, but this is not a requirement. One or more switches can be used to control the same zone of IGUs;...
- Page 2 SAGEGLASS SWITCH OPERATION The SageGlass Switch contains five LEDs and two independent buttons. A description of each of these is as follows: LED indicators • Auto - The “auto” LED will be ON when the zone is in automatic mode. This LED’s on state is blue.
- Page 3 ORDERING INFORMATION INSTALLATION REQUIREMENTS SageGlass Switches must be daisy-chained together using SageBus™ Cables, as shown below. SAGE PART NUMBER Termination jumpers are required on any SageGlass Switch located at the end of line of the daisy-chained SageBus. 300-1147-001 IN TOUCH SageGlass is the pioneer of the world’s smartest dynamic glass and is transforming the indoor...
