NetWave NW6000 Installation, Operation And Maintenance Manual

Voyage data recorder by orolia
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NW6000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for NetWave NW6000

Summary of Contents for NetWave NW6000

  • Page 2: Contact

    Although the utmost care has been taken with this publication, errors and omissions cannot be entirely excluded. Orolia NetWave or its employees or subcontractors therefore accept no liability, not even for direct or indirect damage, occurring due to or in relation with the application of...

  • Page 3: Table Of Contents

    INIMUM REQUIREMENTS ..............................29 ERMINATION 2.10 C ........................... 30 ABLE RECOMMENDATION INSTALLATION GUIDELINE ........................31 SYSTEM COMPONENTS ........................... 32 NW6000 VDR CORE MODULE (19” ENCLOSURE) ..................33 ................................33 ENERAL ........................... 33 OCATION AND MOUNTING ..............................34 OWER UPPLY ................................. 35 THERNET .................................
  • Page 4 ........................... 39 OCATION AND MOUNTING ................................40 OWER ..............................40 ONNECTIONS ............................. 41 ATA COMMUNICATIONS ............................... 42 NDICATORS ................................42 RRORS ..............................42 ONFIGURATION ........................... 42 PERATING INSTRUCTIONS NW6060 VHF / AUDIO INTERFACE ......................43 ................................43 ENERAL ..............................43 OWER SUPPLY ..............................
  • Page 5 12.7 E ................................104 RRORS 12.8 C .............................. 104 ONFIGURATION 12.9 O ..........................104 PERATING INSTRUCTIONS NW6890 FRM POE SPLITTER BOX FOR NON-NETWAVE CAPSULES ............105 13.1 G ................................. 105 ENERAL 13.2 L ..........................105 OCATION AND MOUNTING 13.3 P ................................105 OWER 13.4 C...
  • Page 6 14.3 P ..............................108 OWER UPPLY 14.4 C ..............................108 ONNECTIONS 14.5 W ............................... 109 IRING SCHEME NW6410 WAVENET BUSCOUPLER ......................111 15.1 G ................................. 111 ENERAL 15.2 L ..........................111 OCATION AND MOUNTING 15.3 P ..............................111 OWER SUPPLY 15.4 DAQ C ..........................
  • Page 7 PLAYBACK SOFTWARE ...........................139 21.1 O ........................139 BTAINING THE LAYBACK SOFTWARE 21.2 I PC ................139 NSTALLATION OF LAYBACK SOFTWARE LIENT TANDALONE NW6000 WEB PAGE ..........................140 22.1 D ..............................140 ASHBOARD 22.2 I VDR C ........................141 NSTALLING ROLIA ERTIFICATE 22.3 L ..............................
  • Page 8 1.3.1 G ................................. 164 ENERAL 1.3.2 N ............................164 ORMAL SELF TEST 1.3.3 E GPS- ......................164 XTENDED SELF TEST INCLUDING TEST 1.3.4 E ................................165 RRORS 1.3.5 V ............................165 ISUAL INSPECTION 1.3.6 R HRU, EPIRB M , TRON 40VDR ( ) ....
  • Page 9 RMRS R ....................187 ULES FOR EQUIPMENT DECOMMISSIONING ANNEX II; ENERGY SAVING ........................189 VDR PCB ............................ 189 CONTROLLERS ........................189 OWER CONSUMPTION CALCULATION ANNEX III; EQUIPMENT LABELLING RMRS .....................190 Page 9/ 191...

  • Page 10: General

    General Manual organization The following publications are applicable to the NW6000 series of Voyage Data Recorders. NW6000-00 Operator and maintenance manual* NW6000-10 Installation manual * NW6000-20 Netwave SVDR VDR Annual Performance Report Form * NW6000-60 Authority access manual NW6000-90 VDR Commissioning PT and TA certificates * * This documentation needs to remain on board the vessel.

  • Page 11: Amendment Records (Versions)

    When an amendment is incorporated into this publication, the details are recorded below. Where the equipment has been modified, the modification number shown on the Amendment Instruction Sheet is also to be recorded. Installation, operation and maintenance Voyage data recorder NW6000-manual Version Amendment reference...
  • Page 12 Voyage data recorder NW6000-manual’ above. The version indicated in above amendment record is the version of this complete document. General part (Related to ‘Installation manual’ and ‘Operator and maintenance manual’) Version Amendment reference Date Updated by - ‘Installation manual’ and ‘Operator and C.

  • Page 13: Safety Precautions And Warnings

    Safety precautions and warnings To ensure compliance with the IMO standards, installation of the VDR must be performed by a NetWave Systems approved installation technician. Only a NetWave Systems Certified Technician should access the interior components of the VDR. The following precautions and warnings are general safety measures that personnel should understand and apply during installation, operation and maintenance of all VDR system equipment.
  • Page 14 GROUNDING All cable shields must be grounded to avoid interference from AC wiring, fluorescent lights, or other high magnetic or RF fields. NMEA data cables should be grounded at the source. All other cables should be grounded at both ends. The equipment in the VDR enclosure is grounded to the rack. All other peripheral equipment should be grounded.

  • Page 15: Abbreviations

    Abbreviations Application Program Interface ARPA Automatic Radar Plotting Aid Bridge Alert Management Bridge Control Unit CCTV Closed Circuit Television CD ROM Compact Disk Read Only Memory Core Module Course Over Ground Data Acquisition Electronic Bearing Line ECDIS Electronic Chart Display Information System EPFS Electronic Position Fixing System EPIRB...
  • Page 16 Voyage Data Recorder VESA Video Electronics Standards Association Very High Frequency Variable Range Marker Page 16/ 191...

  • Page 17: Terms

    A battery, with suitable automatic charging arrangements, dedicated solely to the VDR. This battery is contained within the Core Module. Only authorized batteries, available from Orolia Netwave, are to be used with the NW6000. Failure to do so, will invalidate certification for the NW6000.
  • Page 18 Fixed recording medium Part of the Final Recording Medium which is protected against fire, shock, penetration and a prolonged period on the ocean floor. It is expected to be recovered from the deck of the vessel that has sunk. It has a means of indicating location. Float-free recording medium Part of the Final Recording Medium which should float-free after a sinking.

  • Page 19: List Of Specifications

    List of Specifications NEN-EN-IEC 61996-1: Maritime navigation and radio communication equipment and systems - Ship borne voyage data recorder (VDR) -- Part 1: Performance requirements, methods of testing and required test results (IEC 61996-1:2013, IDT) IMO A.658(16): Use and fitting of retro-reflective materials on life-saving appliances IMO A.662(16): Performance standards for float-free release and activation arrangements for emergency radio equipment IMO A.694(17): General requirements for ship borne radio equipment forming part of the Global...
  • Page 20 IEC 61097-2: 2002, Global maritime distress and safety system (GMDSS) – Part 2: COSPAS SARSAT EPIRB – Satellite emergency position-indicating radio beacon operating on 406 MHz – Operational and performance requirements, methods of testing and required test results IEC 61097-7:1996, Global maritime distress and safety system (GMDSS) – Part 7: Ship borne VHF radiotelephone transmitter and receiver –...

  • Page 21: Imo Guidelines On Voyage Data Recorder Ownership And Recovery

    IMO guidelines on Voyage Data Recorder ownership and Recovery 1.Ownership of VDR information The ship owner will, in all circumstances and at all times, own the VDR and its information. However, in the event of an accident the following guidelines would apply. The owner of the ship should make available and maintain all decoding instructions necessary to recover the recorded information.
  • Page 22 4.Access to the VDR information 4.1 A copy of the VDR information must be provided to the ship owner at an early stage in all circumstances. 4.2 Further access to the information will be governed by the applicable domestic legislation of the flag State, coastal State and other substantially interested States as appropriate and the guidelines given in the Code for the Investigation of Marine Casualties and Incidents.

  • Page 23: Service Request

    Performance Test as described in the chapter ‘Routine maintenance’ (Operator and maintenance manual). Please download the data set as described in ‘Download data set from the VDR system’ (Operator and maintenance manual) and send the following files to service@netwavesystems.com so Netwave Systems can assist in fault finding. Page 23/ 191...

  • Page 24: Part 1: Installation Manual

    - Bulkhead/DIN rail mounting - 24 VDC / 12 watt • Orolia Netwave recommends maritime CAT-6 ethernet cable for connecting all units to the core module switch. • Complete system runs from 110 (60Hz) to 230 Vac (50 Hz) through the core module.

  • Page 25: Introduction

    2. Introduction 2.1 Overview The Voyage Data Recorder (as required by Chapter V of the International Convention for Safety of Life at Sea (SOLAS taking into account the IMO resolutions), records the outputs from sensors (connected external equipment of which the outputs need to be recorded) and ultimately passes the data to three physically separated Final Recoding Media (fixed, float-free and long-term) so that the data can be recovered and played back.

  • Page 26: Architecture

    2.2 Architecture This particular VDR is characterized by a distributed data acquisition and conversion model which allows data to be acquired close to the sensor, converted into the LWE standard within the interface (i.e. NW 6410 WaveNet Buscoupler in conjunction with NW 64208 NMEA adaptor) unit or VDR sensor (i.e.

  • Page 27: Interfacing

    2.3 Interfacing Provided sensors are connected and configured to be recorded. Th following (minimum) data is stored (line numbers refer to IEC61996-1:2013). 4.6.1 Date and time 4.6.2 Ship’s position 4.6.3 Speed 4.6.4 Heading 4.6.5 Bridge audio 4.6.6 Communications audio 4.6.7 Radar data 4.6.8 ECDIS 4.6.9 Echo sounder 4.6.10 Main CAUTIONs...

  • Page 28: Address For Assignment

    2.5.1 IP address for assignment The VDR network is configurable with an address range of 172.16.0.1 to 172.31.255.254 with a 16-bit network address mask. The assigned IP address is fixed during normal operation of the VDR, including powering the equipment down and up. The VDR does not rely on (external) DHCP functionality and to overcome IP-address conflicts, caution must be observed not to connect a DHCP server (with the same IP range enabled) into the (VDR) network.

  • Page 29: Multicast Address Range

    (F)FRM at all times. Messaging Netwave supports the MSM and SBM message types. 2.6 Multicast address range The range 239.192.0.1 to 239.192.0.64 is reserved for current and future use in the application layer protocols however the VDR does not use multicast addresses in the range 239.192.0.1 to...

  • Page 30: Cable Recommendation

    2.10 Cable recommendation To provide optimal shielding maritime CAT.7 S/FTP 23 AWG LSFROH SHF1 is preferred which is specifically suited for installation on board ships and sea movable constructions, has a high shielding performance and can withstand harsh environments. Cable length max. 100m* unless otherwise specified in cable diagram. Cable screen must be grounded unless otherwise specified on connection diagram.

  • Page 31: Installation Guideline

    Configuration files o Data samples as per documentation o Photographs of installed units and cabling/connections o Vidchan files (Video configuration when video module is applied) o NW6000-90 VDR Commissioning PT and TA Certificates o TRON40 programming report Page 31/ 191...

  • Page 32: System Components

    4. System components The VDR consists of the following main Units: VDR Core Module (19” enclosure) NW6000 NW6000-100* CM 100W Power Module NW6000-160** CM 160W Power Module NW6000-200* CM Network Module NW6000-300* CM CPU Module NW6000-0155* 4x 6V 12Ah SLA battery...

  • Page 33: Nw6000 Vdr Core Module (19" Enclosure)

    5. NW6000 VDR Core Module (19” enclosure) 5.1 General Fitted on or near the bridge, this unit is designed for 19” rack- or bulkhead mounting in a protected environment. The actual siting of the equipment is generally shown on the approved compartment layout for the ship.

  • Page 34: Power Supply

    The 3 leads (L, N, GND) must have a minimal diameter of 2,0 mm or AWG14. To meet EMC compliance for IEC 60945 the supply into the NW6000 must use a series connected mains filter. The NW6000-050 Mains Filter adapter is provided for this purpose with all NW6000 core modules.

  • Page 35: Ethernet

    The PSU also contains the ability to completely power down the system and isolate the batteries, required on some installations where the vessel is laid up for long periods. This can be achieved without having to dismantle the core module if using the optional NW6000-160 PSU (PSU v2).
  • Page 36 Page 36/ 191...

  • Page 37: Contacts

    5.5 Contacts The CM Power modules also serves to provide an external CAUTION contact which must be connected to a central CAUTION system, when present on the ship. The following contacts are provided: During normal operational mode of the VDR (without any CAUTIONs internal to the VDR) the CAUTION relay is held energized (by the VDRs Central Processing Unit) and the CAUTION contacts are closed.

  • Page 38: Indicators

    5.7 Indicators Each network-port provides Link and Activity LEDs. Green LED Link speed (Green LED); The LED is on when there is a link connection, otherwise, the LED is off. Yellow LED LED is flashing when there is activity on the link. Otherwise, the LED is off.

  • Page 39: Nw6010 Bridge Control Unit

    6. NW6010 Bridge Control Unit 6.1 General The Bridge Control Unit (BCU) serves both as an interface for serial/NMEA data as well to display the operational status and provide user functionality like, but not limited to, operational performance tests. 6.2 Location and mounting The BCU may be mounted in a protected environment at any convenient location considering the compass safe distance as indicated on the unit.

  • Page 40: Power

    6.3 Power This unit has 1x 100 TX PoE port, receiving 802.3af compliant PoE @48V. The total power budget is 3.6 Watts. This device fully relies on the Ethernet PoE supplied from the Core Module without which it will not operate. 6.4 Connections The BCU allows for up to 3x NMEA (IEC61162-2) serial ports to be connected and recorded to the VDRs Core Module.

  • Page 41: Data Communications

    BCU LED1 ALARM Type & Serial number NC-CO-NO ~~~~~~~~ ETHERNET (PoE) to CM Serial / NMEA Fig. 6.4 Bridge Control Unit interfacing connections (back view) 6.5 Data communications The Bridge Control Unit fully relies on Ethernet connections to Core Module and has to be configured within the VDRs specified (commissioned) IP-range (refer to Network configuration).

  • Page 42: Indicators

    6.6 Indicators The BCU has 1 LED to indicate that the power supplied to it is present, in other words, at least a PoE link is established to the core module. In the event the LED is illuminated (steady, green), the video display on the unit must work.

  • Page 43: Nw6060 Vhf / Audio Interface

    7. NW6060 VHF / Audio Interface 7.1 General The NW6060 VHF/ Audio-interface allows interfacing functions for up to two VHF audio channels. This primary function serves to gather audio (line-in) information from the VHF communications equipment. characteristics. Location and mounting This interface may be placed in a protected environment at a location most practical to realize the connections.

  • Page 44: Data Communications

    7.4 Data communications The unit fully relies on Ethernet connections to the Core module devices which must be IEC61162- 450 compliant and the unit provides (audio) data within the VDRs specified (commissioned) IP- range (refer to Network configuration). 7.5 Indicators None.
  • Page 45 4. Use a second VHF radio (not connected to VDR) to broadcast a second test on the same frequency to ensure that the audio received is recorded correctly. Again, note the time of the broadcast and receipt test. 5. Download a small data set using the VDR Player software. 6.

  • Page 46: Nw6030 Analogue Microphones

    8. NW6030 Analogue Microphones 8.1 General The analogue microphones are constructed from sea-water resistant materials with the main housing being durable anodized aluminum. There is one type which may be used in both a protected (internal) and unprotected (external) environment. As the name suggests the interface to the microphone is analogue and uses a differential analogue driver to send the audio signal to the Audio Hub (NW6031) for further processing before sending this to the VDR over a PoE connection.
  • Page 47 The total maximum cable distance between microphone and Audio Hub (NW6031) is 150m. The microphone housings are provided with three mounting holes. The screw cover supplied with the NW6030 can be used to cover these. Please ensure that the additional rubber seal is added before placing the screw cover;...

  • Page 48: Power

    The following shows the mounting dimensions for the NW6030: 8.3 Power The microphones fully rely on the Audio Hub (NW6031) interfaces. This provides a separately controlled power supply voltage to each microphone. • Power for the microphone is provided via the NW6031 Audio Hub. •...

  • Page 49: Indicator

    8.6 Indicator Each microphone has a green led built within the enclosure which is only visible and may be controlled during commissioning and (operational performance) testing. The microphone contains an internal buzzer which is used during audio testing. This sounds when the green led is ON and is normally OFF.

  • Page 50: Nw6031 Audio Hub

    The power budget for the NW6031 with 6x NW6030 analogue microphones is 4W. No external power supply is required for use with the NW6030 or NW6031 as the NW6000 provides power to both via the NW6031 Audio Hub. Page 50/ 191...

  • Page 51: Connections

    9.4 Connections The NW6031 audio hub inputs support the NW6031 Analogue Microphone and is wired as follows: The inputs are individually configurable to receive audio data from a VHF transceiver VDR interface and are wired as follows: Note: Connections to microphones also require using the provided ferrite clamps on both ends of cable.

  • Page 52: Errors

    9.6 Errors If errors occur these will be indicated on the display of the Bridge Control Unit. 9.7 Configuration NW6031 Audio Hub IP-addresses must be set during commissioning time. Please refer to VDR Configuration functions. All inputs default to NW6031 Analogue Microphone input by default after probing for the first time. These can be changed via the configurator for VHF inputs if required.

  • Page 53: Nw6044 Video Interface (Option)

    10. NW6044 Video Interface (option) 10.1 General Where radars or ECDIS systems do not provide an Ethernet port (compliant to IEC61162-450 or the IEC62388 radar video standard) and thus capable of broadcasting their information onto the VDR network, this optional video interface module may be deployed to capture RGB, RGBHV, Monochrome, and composite video information from radars, video cameras, ECDIS, and other video sources.

  • Page 54: Location And Mounting

    10.2 Location and mounting When only one video channel is connected to the video module, the module is often mounted in the bottom cabinet of the source radar. When more than a single display needs to be recorded a practical location must be found considering minimal cable length between the (i.e. radar / ECDIS) displays and the interface.

  • Page 55: Power Supply

    10.3 Power supply The NW6044 requires an external 24Vdc power supply. The ship’s 24Vdc (emergency) power supply and be used if desired. The DC power supply connector sits next to the Ethernet port on the unit. 10.4 Connections The Video Module is connected to the CM (core module) via an Ethernet cable. Video Module Front Panel Connection Connector Description...

  • Page 56: Data Communications

    We recommend the above specifications. Alternative cables may be suitable for installations. Contact us for verification before using cabling other than that specified in the table above. 10.5 Data communications The unit fully relies on Ethernet connection to the Core module which must be within the VDRs specified (commissioned) IP-range (refer to 2.5 Network configuration).

  • Page 57: Configuration

    Press the ‘Add’ button and in the “Service Settings” window: i. Enter Video TCP in the ‘Description of service’ field. ii. Enter 192.168.199.228 in the ‘Name or IP address’ field. iii. Enter 3659 in the ‘External Port number for this service’ field. iv.

  • Page 58: Video Channel Configuration File

    10.10 Video Channel Configuration File Each video channel has a separate video channel INI file: <VidChan1.ini>, <VidChan2.ini>, <VidChan3.ini>, and <VidChan4.ini>; these files are located in the C:\VDRApps directory. Manual editing of an existing <VidChanx.ini> file is generally not done unless the file fails to provide an adequate initial capture.
  • Page 59 Typical Parameter Remarks Value 0 or 1. HSYNC Polarity - Changing this value will increase margin at the left of the image HPOL1 - Choose the value which produces the widest margin, and then adjust with XDim1 0 or 1. VSYNC Polarity VPOL1 Captured images will not be rectangular if incorrect value is chosen XCLAMPPOL1...
  • Page 60 Customize Entries in the VidChanX.ini Files Each entry in the <VidChanX.ini> file indicates the voltage level, timing, and signal characteristics of the video source. The values generated by Video Configuration Utility (VCS2) are based on VESA and Industry Standards and are adequate to capture initial images. If a video capture does not initiate, the most likely reason is that the VPOL1 field may be set wrong.

  • Page 61: Video Configuration Suite (Vcs2) Application

    10.11 Video Configuration Suite (VCS2) Application The Video Configuration Suite (VCS2) application is used to detect and adjust images to be captured by the Video Module. It has a built-in Auto Detection routine which detects many of the necessary parameters for the <VidChanX.ini> files. Existing <VidChanX.ini> files can also be directly modified within this application.

  • Page 62: Video Capture

    10.12 Video Capture The Video Configuration Utility automatically attempts to detect the video input on channel 1. To change the channel selection, click the radio button next to the number of the desired channel. To create settings for a new channel, click the New Video Channel button. If the channel uses Composite Syncs, select the “Composite”...

  • Page 63: Horizontal Polarization

    Once an initial image has been captured (either through Auto-Detection or Manual Configuration mode), go to paragraph Horizontal Polarization to continue setup. Figure 10.12.1 - Successful auto detection 10.13 Horizontal Polarization The Horizontal Polarity setting is used to set the most possible black space to the left of the captured image.

  • Page 64: Vertical Polarization

    10.14 Vertical Polarization Use the Vertical Polarity setting to correct skewed images. Upon initial capture, the image should appear with sides at perfect right angles to each other (similar to image #1 below). If it is vertically skewed (similar to #2 below), vertical Polarity must be adjusted.

  • Page 65: Sizing

    10.15 Sizing To capture the entire image, the image size and offset values must be adjusted using the controls under the Sizing tab. When adjusting the sizes, remember that a proper capture should fill the Capture window and keep all 4 edges of the image within the Capture window. •...
  • Page 66 3. Click OK and follow the instructions below to select the offset position. Figure 10.16.2 - Selecting the image offset 4. Position the crosshair on the top-left corner of the image by clicking on the top-left corner of the image in the Capture window. Horizontal and vertical values (co-ordinates will display in the Capture window.

  • Page 67: Dimensions

    10.17 Dimensions If part of the image is not visible in the Capture window after it is moved to the upper left corner, it may be necessary to adjust the image height and/or width. To adjust the image size: 1. Click the “Start” button on the Dimensions section of the Sizing page. 2.
  • Page 68 5. Click and drag the rectangle in the red transparent area. 6. Pan the image outside the current viewing area to select a larger size. 7. Alternatively, enter a Width and Height number by: a. Entering the desired width in the New Dimensions: Width scroll box (Must be multiple of 8).

  • Page 69: Interlaced Image

    10.18 Interlaced Image A video source may provide a captured interlaced image like the one below. The captured image appears vertically 2 or 3 times within the Capture window. To adjust a captured interlaced image, complete the following steps: Figure 10.18.1 - Interlaced image On the Configuration Page, set the Vertical Polarity to the same setting (negative or positive) as indicated in the Auto-Detection Information Box.
  • Page 70 If the images captured are not fully visible, then the image height must be adjusted. i. Click the Sizing tab to open the Sizing page. ii. Click the Start button in the Dimensions section. iii. Increase the image height to make this lower image visible. iv.
  • Page 71 Figure 10.18.3 - Interlaced image with height set properly Once the images are entirely visible; ensure a small amount of black space still appears at the top of the Capture window to allow for further adjustments. To increase the amount of black space at the top of the Capture window: i.
  • Page 72 Locate the top edge of the second image using the same process; however, click the “From Image” button in the Line 1 Start section instead for the bottom image. Figure 10.18.4 - Interlaced values chosen The image values have now been set. Click the Interlaced checkbox on the Sizing tab page.
  • Page 73 Once the image is properly interlaced, it can now be adjusted to finish correcting the image. Figure 10.18.5 – Incorrectly Interlaced image To achieve the optimal image capture. After properly interlacing the image, the installer may need to adjust the Sizing page’s Horizontal/Vertical offsets, Width and Height dimensions. Figure 10.18.6 - Properly Interlaced Image Page 73/ 191...

  • Page 74: Interleaved Image

    10.19 Interleaved Image If the captured image has a resolution of 1600 x 1200 pixels or greater, it may appear repeated within the Capture window as below. To correct this image, it must be properly interleaved. Complete the following steps: Figure 10.19.1 - Interleaved capture Click the Sizing tab to open the Sizing page.
  • Page 75 Click the Interleaved checkbox to activate Interleaved mode. If step 5 causes a prompt to increase the height of the image, click Yes (in most cases the image height will be too small). Zoom into the image. If the image does not look correct, adjust Line 1 Start one value at a time until it looks correct.

  • Page 76: Recalibration

    10.20 Recalibration Once the image has been captured (or adjusted in the case of an interlaced image), it must be checked to ensure a proper capture that fills the Capture window but keeps all 4 image sides (edges) visible in the window. Check the aspect ratio by looking for a skewed circle.
  • Page 77 First, locate a circle in the radar image in the Capture window. A Variable Range Marker (VRM) or range ring, available on most radar images, provides effective circles for assessing recalibration. If the image requires recalibration the ring will appear more oval than round. In that case it is necessary to recalibrate the image by setting the proper aspect ratio.
  • Page 78 Note: With many radar images, it may be difficult to determine the true upper left corner of the captured image. The installer may have to adjust the image’s position several times to ensure it is as close as possible to the top left corner without losing any part of the image. Figure 10.20.3 - Recalibrated image with Image Offsets adjusted Page 78/ 191...

  • Page 79: Adjustments Tab

    10.21 Adjustments Tab To adjust the image quality, click the Adjustments tab to open the Adjustments page. This page includes 4 sections including: 1. Sharpness 2. Gain / Offset Adjustment 3. Clamp 4. Coast In these for sections the installer will find all the controls needed to adjust the image values as described below.

  • Page 80: Sharpness

    10.22 Sharpness The Sharpness section of the Adjustments page holds three scroll boxes to adjust the Phase, charge pump (CPMP), and the voltage-controlled oscillators (VCO). 10.22.1 Phase Once the image position is adjusted, is may still display pixilation (visible noise), banding, and/or soft edges.

  • Page 81: Gain/Offset

    VCO range can be selected in accordance with the following table: Pixel Rate Range (MHz) VCORNGE VCO Gain, K Setting (MHz/V) Lower Upper Table 9.22.3 - VCO Pixel rate range (MHz) 10.23 Gain/Offset To create a more uniform image, the installer can fine-tune the gain and/or offset in the Gain/Offset Adjustment section.

  • Page 82: Clamp

    To fine tune the Gain and Offset using the histogram of Red, Green, and Blue icons: Click on the histogram icon to be adjusted. Drag the icon and observe changes in the Capture window image. When the adjustment is finished, release the icon. The new value is displayed in the corresponding scroll box beneath the histogram.

  • Page 83: Coast

    Disable (Positive) check button: The Disable (Positive) setting overrides the HSYNC ▪ signal and disables the Clamp command. Placement [0 – 255] and Duration [0 – 255] scroll boxes: These scroll boxes are only ▪ active if the Enable (Use HSync) check box is selected. They allow for the sampling of video to determine voltage corresponding to the image’s black levels.

  • Page 84: Info Tab

    Save the file. Click the Load <VidChanX.ini> file. Choose the <VidChanX.ini >file which was altered and saved in Step 5 above. The above procedure provides an image in the Video Config Suite application that can be properly configured in accordance with paragraph ‘Video Configuration Suite (VCS2) Application’. If the HSync value was obtained via the Video Config Suite application, it is recommended that the installer carefully check to make sure that the VCO, CPMP, and Phase settings are correct for the captured image.

  • Page 85: Vcs2 Menu Overview

    10.28 VCS2 Menu Overview This section provides an overview of the menu items available in the Video Diagnostics application. ▪ File Menu o Load Bitmap: Selecting this option opens a file selection window from which a user must choose a saved bitmap file to load to the Image window for viewing. o Save Bitmap: This will save the current image to a bitmap file.

  • Page 86: Test Video Inputs

    10.29 Test Video Inputs To ensure that video capture has been properly configured: 1. Connect the interface to the CM. 2. Deselect ‘Record’ from the ‘Tests’ menu. 3. Select ‘Video Test’ from the ‘Tests’ menu. 4. Maximize the Video Data window. 5.

  • Page 87: Nw6880 (Ffrm) Float Free Capsule Jotron Tron 40 Mkii

    Information in this NetWave manual gives additional information regarding the TRON 40VDR in combination with the NW6000 VDR and summarizes information out from the installation manual of Jotron. For full information about the TRON 40VDR NetWave Systems refers to the installation and user manuals of Jotron.
  • Page 88 This device fully relies on the Ethernet PoE supplied from the Core Module. This unit has 1x 100Mbps TX PoE port, receiving 802.3af compliant PoE @48V. The total power budget is 4 Watts. The unit fully relies on Ethernet connections to the Core Module and provide datas within the VDRs specified (commissioned) IP-range (refer to Network configuration).

  • Page 89: Location And Mounting

    11.2 Location and mounting The protective capsule must be sited in the vicinity of the bridge on the external deck area of the vessel to maximize the probability of its survival and recovery following an incident. Criteria to be considered when assessing the optimum position shall include but not be limited to the following: •...
  • Page 90 Make sure the total cable length of original installation + new installation does not exceed 100 meters. If the mounting of the TRON 40VDR requires a long outdoor cable, it is recommended to put the cable in a separate steel pipe, which is welded to the ship hull. This will protect the wire against RF signals interfering with the VDR signals.
  • Page 91 Page 91/ 191...
  • Page 92 Page 92/ 191...

  • Page 93: Connection Test With Flying Cable

    11.3 Connection test with flying cable Before connecting the TRON 40VDR device it is advisable to test the new position with a flying cable. Connection testing can be done with a running ICMP test by using the utility hrPing. This utility can be downloaded from: https://www.cfos.de/en/ping/ping.htm.

  • Page 94: Junction Box

    11.4 Junction box 11.4.1 Grounding of cables and junction box Please note that your connections may differ from pictures below, see paragraph ‘Wire schematic’. It is important that the grounding shields of the cables (of TRON 40VDR and VDR) are in contact with the cable glands of the junction box.
  • Page 95 To ensure water tightness make sure the cable glands are tightened well and the provided vulcanizing tape is placed around the 2 cable glands as shown on picture below. Page 95/ 191...

  • Page 96: Wire Schematic Junction Box

    - Connect inside the junction box on the VDR side the White/brown and Brown wires together. - Note that exchanging the DC + and DC – will not cause any damage, but the TRON 40VDR will not work. Connections NW6000 VDR side: Page 96/ 191...
  • Page 97 Cable type 1 Standard T-568B (of TRON 40 VDR MKI) Serial numbers docking module 0-7500 (summer 2014 - 2016) Connector VDR-side TRON 40VDR side White/Orange White/Orange Orange Orange White/green White/green Green Green NOT connected White/blue Connected but not used White/blue + Blue Blue White/brown + Brown White/brown...

  • Page 98: Led) Indicators On Docking Module

    Grease the 4 bolts of the junction box from top to bottom with some of the remaining silicone grease from the TRON 40VDR. This will prevent corrosion of the bolts and will enable the next engineer to open the junction box without replacing it. Some copper slip or other water dispersing formula can also be used.

  • Page 99: Nw6860 (Frm) Fixed Hss Capsule

    12. NW6860 (FRM) fixed HSS Capsule 12.1 General The hardened storage server (HSS) forms the Fixed Final Recording Medium and is colored bright orange for ease of location in the event of an incident. The HSS is designed to be mounted on the ´monkey island´...
  • Page 100 • 64 GB memory. • Exceptional read, write and erase performance. • Built-in proprietary technology for full hard-disk emulation, high data reliability and maximum flash lifetime. • Data integrity with Error Detection Code/Error Correction Code (EDC/ECC) based on a combination of BCH and Hamming algorithms. •...

  • Page 101: Location And Mounting

    12.2 Location and mounting The protective capsule must be sited in the vicinity of the bridge on the external deck area of the vessel to maximize the probability of its survival and recovery following an incident. The capsule shall be positioned clear of rigging and other potential obstructions and as near to the centreline of the ship as practically possible.
  • Page 102 The HSS consists of two sub-assemblies. A deckmount sub- assembly is directly fastened to the ship and provides watertight cable entries for the single wire WaveNet connection. Together with the deck mount a set of stainless-steel bolts are provided to be used for bolting the deckmount on a suitable position on deck.
  • Page 103 D) After attaching the RJ-45 connector to the network cable, plug the connector in the network plug on the blue CPU housing as below. E) Once the storage medium and the deckmount are placed upon each other, attach the vulcanized tape around the flanges to ensure water tightness. Stretch around 50cm of vulcanized tape and make sure to wrap it twice around the seam that is between the capsule and the deckmount.

  • Page 104: Data Communications

    12.5 Data communications The unit fully relies on Ethernet connections to the Core Module within the VDRs specified (commissioned) IP-range (refer to 2.5 Network configuration). 12.6 Indicators When in unassembled state (and viewed form the bottom of the capsule part) a LED is available to determine Link, Activity, and Error status during service.

  • Page 105: Nw6890 Frm Poe Splitter Box For Non-Netwave Capsules

    13. NW6890 FRM PoE Splitter Box for non-Netwave capsules 13.1 General This junction box provides 24V DC to power the HVR04 Final Recording Medium from a single PoE network cable originating from the CM (core module). This junction box is not required to install the standard fixed capsule or the Jotron free floating FRM.

  • Page 106: Connections

    13.4 Connections Ethernet OUT to HVR04 Ethernet OUT PoE IN Ethernet IN (fm Core Module (PoE) SHIELD 24V OUT to HVR04 24 VDC OUT to P D (powered device) Page 106/ 191...

  • Page 107: Nw64900 Data Acquisition System

    14. NW64900 Data Acquisition System 14.1 General This data acquisition system (DAQ) aims to provide a flexible, scalable and universal platform to interface analogue, digital or serial sensors to the VDR. The architecture allows for a single wire Ethernet (which includes PoE, power over Ethernet) to connect to the CM (core module).

  • Page 108: Location And Mounting

    14.2 Location and mounting The DAQ may be situated in any protected environment. 14.3 Power Supply This device fully relies on the Ethernet PoE supplied from the Core Module. This unit has 1 x 100 TX PoE ports, receiving 802.3af compliant PoE @48V. The total power budget is 12 Watts.

  • Page 109: Wiring Scheme

    14.5 Wiring scheme All DIN rail mountable adaptors have a unified connector and wiring identification scheme. Please note that there are 3 different sizes of adaptors (depending on port characteristics and number of ports), with a varying number of connectors and wires. Consequently, these adaptors differ in width.
  • Page 110 Please note: the largest width adaptor is shown with connectors in rows A, B and C. Smaller adaptors, with less channels, will have 1 row (A) or 2 rows (A and B). Top rows are identified by a T-prefix, whereas the bottom rows have a B-prefix. Page 110/ 191...

  • Page 111: Nw6410 Wavenet Buscoupler

    15. NW6410 WaveNet Buscoupler 15.1 General There must always be 1 buscoupler (BC) within any DAQ to provide data communications to the Core Module. There cannot be more than a single Buscoupler on a single DIN busbar. 24V AUX output, resettable fuse at 750 mA, 24V AUX input, max 1A.

  • Page 112: Connections

    15.5 Connections This adaptor has following ports: to be connected to the Core Module (or other brands’ IEC61162-450 Ethernet compliant VDR or otherwise) Channel 1 NMEA (IEC61162-2) input port (4k8 up to 38K4 Bd) Channel 2 NMEA (IEC61162-2) input port (4k8 up to 38K4 Bd) Channel 3 NMEA (IEC61162-2) input port (4k8 up to 38K4 Bd) Power A...

  • Page 113: Data Communications

    Figure 15.5.1 - Connection table Buscoupler 15.6 Data communications The adaptor has 1 x 10/100 TX PoE and three serial ports (IEC61162-2). In default ‘VDR mode’ in order to offload its data - it relies on the ethernet connection to the core module which must be IEC61162-450 compliant.

  • Page 114: Nw64208/16 Serial/Nmea 8/16 Channel Adaptors

    16. NW64208/16 Serial/NMEA 8/16 channel adaptors 16.1 General These adaptors provide input ports for serial / NMEA data with baud rates up to 38k4. They are available in 8 and 16 channel configurations within a harmonized configuration and wiring scheme. These adapters are compliant with IEC 61162-1.

  • Page 115: Connections

    16.4 Connections For physical connector and wiring identification please refer to the figures below. Figure 16.4.1 – Connection figure NMEA Module 8 channels Page 115/ 191...
  • Page 116 Figure 16.4.2 – Connection figure NMEA Module 16 channels Figure 16.4.3 – Connection table NMEA Modules Page 116/ 191...

  • Page 117: Data Communications

    16.5 Data communications The adaptor sends its data to the NW6410 Buscoupler for further processing and streaming onto the VDR network. In default ‘VDR mode’ in order to offload its data – the Buscoupler relies on the ethernet connection to the Core Module. 16.6 Indicators All adaptors have the number of ‘channel LEDs’...

  • Page 118: Power Supply

    17.3 Power Supply These adaptors receive their power (indirect PoE converted to 24V DC) via the DIN rail mounted NW6410 Buscoupler. Please note that for digital contacts additional 24 VDC will need to be supplied from either separate power supply or from 24 VDC output on the buscoupler. Page 118/ 191...

  • Page 119: Connections

    17.4 Connections For physical connector and wiring identification please refer to the figures below. Figure 17.4.1 – Connection figure Digital Module 8 channels Page 119/ 191...
  • Page 120 Figure 17.4.2 – Connection figure Digital Module 16 channels Page 120/ 191...
  • Page 121 Figure 17.4.3 – Connection figure Digital Module 24 channels Page 121/ 191...

  • Page 122: Data Communications

    Figure 17.4.5 – Connection figure Digital Modules 17.5 Data communications The adaptor sends its data to the NW6410 Buscoupler for further processing and streaming onto the VDR network. In default ‘VDR mode’ in order to offload its data - the Buscoupler relies on the ethernet connection to the Core Module.

  • Page 123: Nw64404/08/12 Analogue 4/8/12 Channel Adaptors

    18. NW64404/08/12 Analogue 4/8/12 channel adaptors 18.1 General These adaptors provide input ports for analogue data with voltage levels between -10V to +10V and -20mA to +20mA current. Depending upon the port-wiring combination, a choice may be made for voltage measurement or current measurement. 18.2 Mounting These adaptors connect to the DIN busbar by mounting them from the top first and only in a vertical direction.

  • Page 124: Connections

    18.4 Connections Depending upon which connector entry is chosen, a choice is made between voltage and current measurement. For physical connector and wiring identification please refer to the figures below. Figure 18.4.1 – Connection figure Analogue Module 4 channels Page 124/ 191...
  • Page 125 Figure 18.4.2 – Connection figure Analogue Module 8 channels Page 125/ 191...
  • Page 126 Figure 18.4.3 – Connection figure Analogue Module 12 channels Page 126/ 191...

  • Page 127: Data Communications

    Figure 18.4.4 – Connection table Analogue Modules 18.5 Data communications These adaptors send analogue data (-10V to +10V or -20mA to -20mA) they receive from their input ports onto the busbar ‘backplane’ for further processing by the Buscoupler which in its turn streams the data onto the (VDR) network.

  • Page 128: Connecting To The Vdr For Configuration Of The System

    2. Change the IP address of the PC to be within the IP-range of the VDR and set it to 172.16.8.199. 3. Open a web-browser and go to the URL 172.16.8.2 or https://nw6000.orolia.local. 4. If necessary, download & install the Player & Conversion Software as well as the Manual for these from the VDR to the PC.

  • Page 129: Hecking For Connected Sensor To The Vdr

    19.2 Checking for connected sensor to the VDR Connect to the VDR and using a browser select the configuration TAB for configuring the system on https://nw6000.orolia.local. Before configuring the VDR, it is important to get an understanding and check of all connected sensors to the VDR.

  • Page 130: Hange Of Type Of The Vdr

    19.3 Change of type of the VDR There I no longer the ability to change the type of the VDR as in the older Player V1. The VDR is now configured via it’s web pages. 19.4 Configuring the VDR For configuring the VDR, use a laptop with specifications as described above. Connecting to the VDR enables access to its configuration files once the user has been authenticated using their username and password.

  • Page 131: Configuration Page

    19.4.2 Configuration page The NW6000 Configuration web page is used to configure the system. On navigating to ‘Configuration’ the certified service engineer will have the option to configure the VDR and to provide a correct representation of recorded data from all the storage media.
  • Page 132 Configuration will start vessel particulars, to be filled. A. Vessel name, IMO and MMSI numbers must be filled. B. Start with the configuration of the VDR system. These are Video, Audio and NMEA sources. Page 132/ 191...
  • Page 133 C. Open a specified field (i.e. buscoupler) and rename the found hardware modules when desired In the menu structure on open the buscoupler and name the input of each connected NMEA input (max 3 configurable between 4800-38400Bd) as per tab. •...
  • Page 134 Please pay attention to the configuration of the Global Navigation Satellite System (GNSS). During installation it is required that position of the antenna will be registered by location on the vessel in General Settings. In the additional notes field please add the required z – coordinate (measured from high water line).

  • Page 135: Configuring The Opt

    19.4.3 Configuring the OPT Select the OPT Configuration button to configure Operational Performance Test for NMEA, Audio and Video sources. Add categories for groups of NMEA OPT items. Dragging or double clicking the NMEA sources will add that item to the currently selected category.

  • Page 136: Configuring The Lwe Video

    19.4.4 Configuring the LWE video To configure the video channels via the LWE 450 protocol, please take the following steps. 1. Connect to the NW6000 Web pages at https://nw6000.orolia.local 2. Make sure all video channels are enabled and are sending data over the VDR network.
  • Page 137 As it is not required to record all available image sources at the same time (only the source used for navigation), the NW6000 allows two methods for recording sources of the same type. 1. DEFAULT: Devices with the same type are recorded in round-robin. For two sources of ECDIS source 1 is recorded first and then source 2 when it arrives in the following time slot.

  • Page 138: Creating A Download From The Vdr System

    To perform a download requires installation of the Player software and configuration of the PC used for the download. 20.1 Download data set To download a data set from the NW6000, please set your PC to fixed IP address 172.16.8.199 using local area connection network. Fill the following IP addresses: IP address: 172.16.8.199...

  • Page 139: Playback Software

    The installation of playback software is automated and requires little interaction. The install is performed via a self-extracting executable file and is automatically installed to the C:\Program Files\Netwave\VDR directory, with a shortcut placed on the Windows desktop. The install file will normally be named “Install VDR Playback.exe”.

  • Page 140: Nw6000 Web Page

    22. NW6000 Web page The VDR webpage can be accessed by using the http://nw6000.orolia.local on core modules with software version 1.5.17 or lower. Later versions require a certificate to be installed. The webpage is secured and therefore needs to be accessed with https://nw6000.orolia.local.

  • Page 141: Installing Orolia Vdr Certificate

    22.2 Installing Orolia VDR Certificate After upgrading the core module from v1.5.17 or later, access the VDR with http://172.16.8.2 to download the “Installer Orolia Certificate”. Save the downloaded file “setup-orolia-certificate.zip” and uncompress the file with for example WinZip or 7Zip. Execute the file “setup-orolia-certificate.exe”.
  • Page 142 Then click the button “install” to proceed with the installation. Click the button “Finish” to end the installation. Access the VDR webpage with a browser by using https://nw6000.orolia.local/ Page 142/ 191...

  • Page 143: Live Video

    22.3 Live Video The Live Video webpage will display all configured video channels. This includes the video channels from a Video module (NW6044) as well as connected LWE video channels. See chapter 7.7 how to configure video channels. Figure 22.3.1 – Live video page, video channel Each configured video channel will be displayed on the Live video page.

  • Page 144: Annual Performance Test

    VDR is not synchronized. 22.4 Annual Performance Test Netwave Systems recommends performing an Annual Performance Test (APT) every 12 months referring to MSC.1/Circ.1222. The VDR page retrieves information from the VDR, that is required for the APT, and will be filled in automatically in the APT page.

  • Page 145: Lwe Settings

    22.5.1 LWE Settings Figure 22.5.1.1 – Configurator page, LWE settings X-Band When enabled will cause the VDR to record the LWE video sources transmitting X-Band images. In case there is also an X-Band source connected to a Video Module this setting can be switched off to disable the X-Band video recording from an LWE source.

  • Page 146: Vlan Settings

    22.5.2 VLAN Settings The NW6000 VLAN implementation relies on a separate VLAN enabled switch which is connected to ETH1 on the VDR CPU. This requires a direct connection to this port in the core module. The VLAN-ID and associated network(s) are configured independently.

  • Page 147: Bam Settings

    22.5.3 BAM Settings The VDR can be connected to a Bridge Alert Management (BAM) system if available. When enabled VDR alert messages will be transmitted to the BAM system. Full details of alert identifiers are available in the BAM Interface specification.
  • Page 148 Figure 22.5.3.2 – Configurator page, BAM interface settings After setting the BAM Interface to serial the Fig.21.4.3. BAM dropdown list is shown. Select the desired output channel which is connected to the BAM system. The Bus Coupler and BCU ports can be used as inputs for NMEA signals or for BAM alert messages as output.

  • Page 149: Advanced Settings

    22.5.4 Advanced Settings Figure 22.5.4.1 – Advanced Settings Log Reboot This setting is used to control whether the NW6000 logs additional information when the platform reboots. This can be used to help track down problems if required and should be used in consultation with support.

  • Page 150: Analyze Tool

    22.6 Analyze Tool The analyze tool scans real time incoming NMEA data sources and presents them in an easy to configure filterable list. This data can be used for configuring the playback software as well as trouble shooting connections. Figure 22.6.1 - Configurator page, Analyze tool The buttons in the left menu from top to down have the following functionality.

  • Page 151: Bam Tool

    The filter option will show only data containing the text entered in the filter box. For example, typing “hdt” in the box will only show data containing the text “hdt”. Source Device ID sending the data Module number Port number Group Group, hover over to receive additional information Talker Id...

  • Page 152: Rebooting The Vdr

    22.8 Rebooting the VDR The VDR will reboot automatically if the Save to VDR is accessed and the OK button is pressed. All configured settings will be stored to the VDR and will be used by the VDR after it reboots. Figure 22.8.1 –...

  • Page 153: Bam Interface Specification

    23. BAM Interface Specification The following sections detail the BAM interface on the NW6000 in compliance with IEC 62923:2018. 23.1 Bridge Alert Management (BAM) BAM reporting is available as follows: Types Supported Maximum Number IEC 61162-1/2 IEC 61162-450 BAM configuration is provided here in BAM Settings.

  • Page 154: Alert Identifiers

    23.4 Alert Identifiers The description of the alert identifiers (ID) coming from the NW6000 are as follows: Alert ID Caption (max 16) Description 10002 NO TIME Time not received for 30s 10003 NO POSITION Position not received for 30s 10004...

  • Page 155: Frequently Asked Questions

    24.1 Browser Shows Insecure Webpage 404 Not Found The latest update to the NW6000 internal web server includes secure web page access using https. This requires that there is a certificate installed on the machine that is being used to access the VDR web server and also requires the use of the NW6000 local hostname.

  • Page 156: Browser Compatibility With Vdr Web Server

    When using Firefox some additional steps are required to configure the browser for use with the NW6000. This requires enabling the NW6000 certificate in the Firefox certificates database. Enabling the Windows certificate store trust can be done following the below steps.

  • Page 157: What Is The Recording Capacity Of The Vdr

    24.3 What is the recording capacity of the VDR? Under IEC 61996-1 each of the recording mediums have the following recording requirements… Storage Area Hours Long Term Recording Medium (LTRM) Fixed Recording Medium (FRM) Float Free Recording Medium (FFRM) Recordings include NMEA, Audio and Video data sources along with additional support files – config, log files etc.

  • Page 158: Part 2: Operator And Maintenance Manual

    Netwave Systems recommends performing an Annual Performance Test (APT) every 12 months referring to MSC.1/Circ.1222. The APT can only be performed by Netwave Systems certified agents. An overview of the global service network of Netwave Systems can be found on www.oroliamaritime.com...
  • Page 159 2014/12/04 11:17:20 UTC # ALERTS: 0 STATUS RECORDING 40 of 42 channels 5593 / 720 Hours on Long Term Storage 204 / 48 Hours on Netwave Capsule 332 / 48 Hours on Free Float Capsule ALERTS MENU NIGHT 2014/12/04 11:17:25 UTC...

  • Page 160: Audio Test

    1.2.2 AUDIO test For example, when choosing AUDIO, the screen will provide all connected audio sources. 2014/12/04 11:17:45 UTC # ALERTS: 3 AUDIO VHF 1 – PN2000.1 VHF 2 – PN2000.2 PN1014.1 – PN1014.1 PN1006.1 – PN1006.1 PN1002.1 – PN1002.1 PN1007.1 –...

  • Page 161: Video Test

    Choosing the VHF will provide the VHF test screen. The audio level should be > 20 for ‘pass’. 2014/12/04 11:17:55 UTC # ALERTS: 3 Device VHF 1:2 Update time 2014/12/04 11:17:52 Audio Level FAIL BACK PASS NEXT PREV After all audio devices have been checked, click ‘back’ and the system will get the operator in the main menu and i.e.

  • Page 162: Nmea Test

    It is required by clicking anywhere on the screen that the picture will zoom into the original display size. Clicking once again will provide the buttons. You can pan around the picture and ‘pass’ or ‘fail’ can be pressed. Outcome will be recorded in the logging. BACK PASS FAIL...

  • Page 163: Opt Log

    In case there are difficulties and assistance is required, please download the data set as described in the chapter ‘Download data set from the VDR system’ (Operator and maintenance manual) and send the dataset to service@netwavesystems.com so Netwave Systems can assist in fault findings.

  • Page 164: Tron 40Vdr Float Free Capsule

    1.3.1 General The information about the TRON 40VDR provided in this chapter is based on the ‘User Manual’ of Jotron. For full information about the TRON 40VDR Netwave Systems refers to the User Manual of Jotron. This user manual: is hardcopy enclosed to the delivery box of the TRON 40VDR.

  • Page 165: Errors

    1. Release FB-40 top cover by removing the cotter pin. 2. Take TRON 40VDR out of the bracket. 3. Move Switch to TEST-position twice within 3 seconds and release back to READY-position. 4. EPIRB will BEEP shortly every 3 seconds until GPS position acquired. 5.

  • Page 166: Eplacement / Maintenance Hru, Epirb Module /Battery Pack , Tron 40Vdr ( Capsule And Bracket )

    1.3.6 Replacement/maintenance HRU, EPIRB Module/Battery pack, TRON 40VDR (capsule and bracket) The expiry date of the Hydrostatic Release Unit (HRU), EPIRB Module/Battery pack, TRON 40VDR (capsule and bracket) will be checked during the APT but please note that these can expire in between the APT’s.

  • Page 167: Nw6010 Bridge Control Unit

    2. NW6010 Bridge Control Unit 2.1 General The Bridge Control Unit (BCU) serves both as an interface for serial/NMEA data as well to display the operational status and provide user functionality like, but not limited to, operational performance tests. 2.2 Location and mounting The BCU may be mounted in a protected environment at any convenient location taking into account the compass safe distance as indicated on the unit.

  • Page 168: Screen Description

    # ALERTS: 3 STATUS RECORDING 42 of 42 channels 5593 / 720 Hours on Long Term Storage 204 / 48 Hours on Netwave Capsule 332 / 48 Hours on Free Float Capsule ALERTS MENU NIGHT By touching the ALERT button, screen will change from status to alert position and indicate all alerts applicable for the moment, with latest alert on top.

  • Page 169: Alert Conditions Indicated On Bcu

    2.7 Alert conditions indicated on BCU Any recording errors, being it data integrity, loss of sensor information or other circumstance as represented in the VDR Performance Standard will lead to an ALERT condition which stays active and displayed on the BCU. In case the ALERT is resolved, the text line will disappear. Following indications can appear on the BCU.

  • Page 170: Storage

    2.7.5 Storage A) Connection problem capsule’ No connection to the Netwave capsule B) Connection problem (type) capsule’ If other then Netwave capsule is connected. C) ‘Float free not accessible’ No connection to Float free capsule. In the event the system is either unable to read from data recently written into any of the Final Recording Media, a data volume becomes unavailable, or any data volume has an overflow, an ALERT will be generated.

  • Page 171: Alert Logging

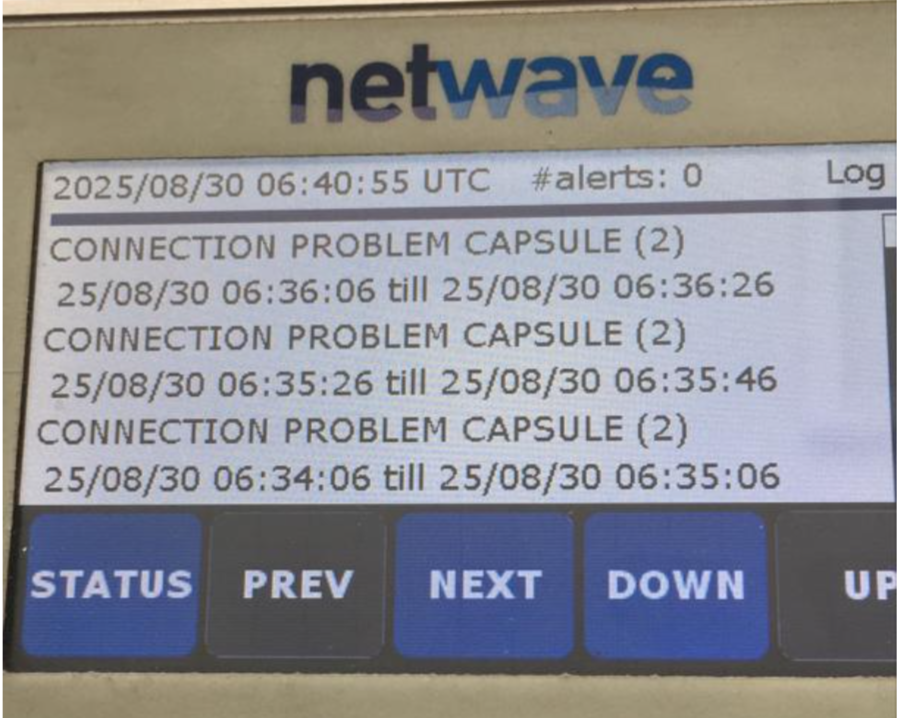

    2.9 Alert logging STATUS information will provide access to a logging screen which provides a list of last 25 logged events. Using PREV and NEXT the user will be led forward or aft through the menu. 2014/12/04 11:17:25 UTC # ALERTS: 3 CONNECTION PROBLEM CAPSULE (2) 14/12/03 10:43:16 till 14/12/03 10:43:18 PREV...

  • Page 172: Screen Test

    2.11 Screen test The Bridge Control Unit has screen test included. By choosing in the MENU display, the SCREEN button, the display will provide a rectangular black in white figure. This will test the correct brilliance. Page 172/ 191...

  • Page 173: Nw6880 Tron 40Vdr Frm Float Free Capsule

    NW6880 TRON 40VDR FRM Float Free Capsule 3.1 General According to the IEC61996-1:2013 (MSC.333 (90)/5.4.3) recording of the VDR data shall also take place on an approved free-floating Final Recording Medium for a period of not less than 48 hours. The unit to be installed in conjunction with this VDR is the Jotron TRON 40VDR which basically comprised of an EPIRB with internal memory to the VDR.

  • Page 174: Nw6860 Fixed Hss Capsule

    NW6860 Fixed HSS Capsule 4.1 General The hardened storage server (HSS) forms the Fixed Final Recording Medium and is colored bright orange for ease of location in the event of an incident. The HSS is designed to be mounted on the ´monkey island´...

  • Page 175: Playback Software

    Playback software 5.1 Setting up the PC To download a data set from the NW6000, please set your PC to fixed IP address 172.16.8.199 using local area connection network. Fill the following IP addresses: IP address: 172.16.8.199 Submask: 255.255.0.0 Page 175/ 191...

  • Page 176: Obtaining The Playback Software

    - login (only accessible for service engineers). Additional playback software, which may be downloaded from the Netwave website is available for use in shore-side offices. This additional software is necessary for the playback of data once it has been removed from the ship and transported to the office environment.

  • Page 177: Installation Of Playback Software - Client/Standalone Pc

    3. The installer will automatically install the Player, follow the instructions on the screen. Note: Most likely your windows safety software will warn you about the publisher of this software because Orolia NetWave is not an official Microsoft product manufacturer. Page 177/ 191...

  • Page 178: Starting The Playback Application

    5.4 Starting the Playback Application The player can be started by pressing the Desktop icon for the player placed during installation. Once the player has started the Start App screen is displayed. This is used to launch player sessions. Click on Start App to start a playback session. The session can be used to playback a previously stored dataset or alternatively to download a dataset from a storage device which subsequently can be played back using the player.

  • Page 179: Configuration File

    Although the Playback can be modified to display specific items in the case of an incident the underlying data files and configuration history remains intact. With the NW6000, the ship’s configuration file is included in a dataset. When a dataset is selected the configuration file will be automatically reloaded as necessary.

  • Page 180: Downloading A Dataset From Recording Medium

    5.6 Downloading a Dataset from Recording Medium After pressing the START APP button, oo download a dataset from one of the final recording mediums (FRM, FFRM or LTRM) select the DOWNLOAD button. Select a storage device to download from using the dropdown menu. The IP address of the VDR will be shown in the box under the stroage device selection.
  • Page 181 Tips: 1) The mouse scroll wheel or touchpad can also be used to change items in the selection boxes. 2) When selecting a date or time that results in a time that has not recording data to retrieve the relevant numbers will be changed and flashed red to either the start or end of the recording time.

  • Page 182: Choosing An Existing Dataset

    5.7 Choosing an existing dataset Once the playback software has been started (see Starting The Playback Application) then use following steps to import the dataset and to start a playback session from an existing folder. a. Select the MANUALLY import dataset button Note: Dataset needs to be available on the computer.

  • Page 183: Starting Data Playback

    5.8 Starting data playback Once the dataset has been loaded, either manually or via a download from an existing final recording medium, the player can then start to perform a playback of the voyage data from the dataset. When a dataset has been imported into the Player the screen will contain something similar to the view on the right.
  • Page 184 Figure 5.8.1 Sample dataset playback Page 184/ 191...

  • Page 185: Conversion Of Extracted Data

    5.9 Conversion of extracted data Once a dataset has been opened by the playback software it can be exported and converted to industry standard files. These converted files are from the downloaded dataset itself and can be moved to another medium for other use. To export data from the Player please select page ‘options’...

  • Page 186: Logging Functions

    The second password is for configuration. This password is only available for Netwave certified service agents (provided during training). 7.2 Playback Controls Please refer to Player V2 operator manual for further information on using the Player V2.

  • Page 187: Annex I; Equipment Decommissioning

    “a” of the paragraph 160 of the “Technical Regulations”. b. All VDR components (NW6000 PSU, batteries, switch and CPU), optional Interface Boxes, microphones, should be switched off and disconnected from their power sources.
  • Page 188 e. Utilization Company considers itself – How to utilize autopilot components according to Russian Federation rules for utilization of such components and paragraph 219 of the “Technical Regulations on the Safety of Sea Transport Items”. VDR PCB controllers can be easily dismounted form the metallic boxes and utilized separately, as electronic equipment! Page 188/ 191...

  • Page 189: Annex Ii; Energy Saving

    6. Storage media (float free and hardened capsule) 12 W Calculation of the Power Consumption per NW6000 system: P = NW6000 core module + (2W x Number of microphones + VHF interface) + (2W x number of interface modules (8 channels) + 4W coupler) + storage media.

  • Page 190: Annex Iii; Equipment Labelling Rmrs

    Russian Federation legislation on technical regulation.” Following components of NW6000 VDR System are labelled according to the Russian Federation Government Order “On Conformity Mark” No. 696 of 19 November 2003 and Section 20 of the “Technical Regulations on the Safety of Sea Transport Items”...
  • Page 191 FRM Capsule: Current software versions on VDR indicated on the BCU (see chapter Software version recognition): 2014/12/04 11:17:40 UTC # ALERTS: 3 SOFTW BCP – SI6000 – v 0.6.0 BCU – PN5000 – v 0.4.17 CAP – PN7000 – v 0.4.3 MIC –...

This manual is also suitable for:

Nw6900Nw6010Nw6030Nw6031Nw6060Nw6860 ... Show all

Table of Contents

Save PDF
