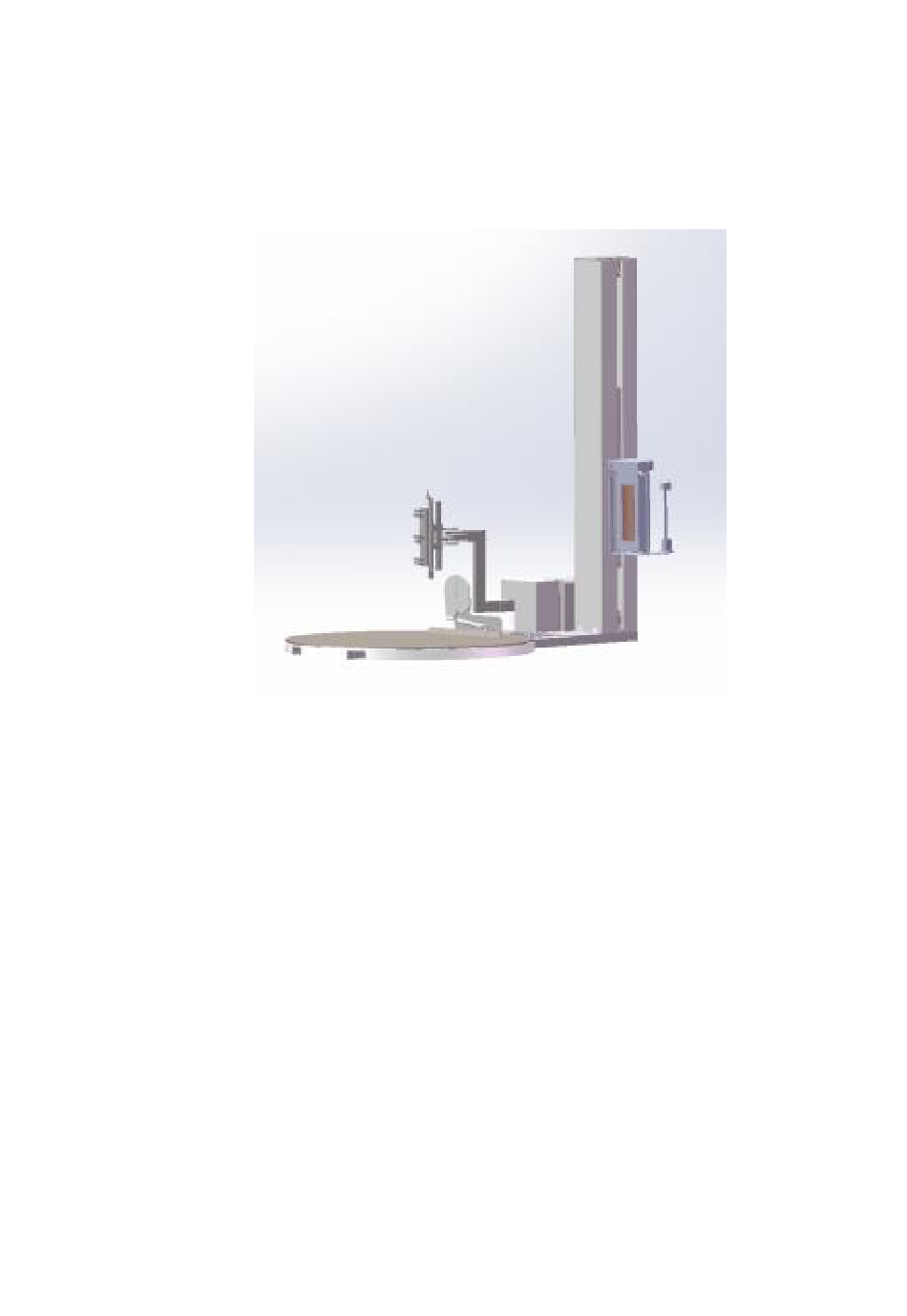

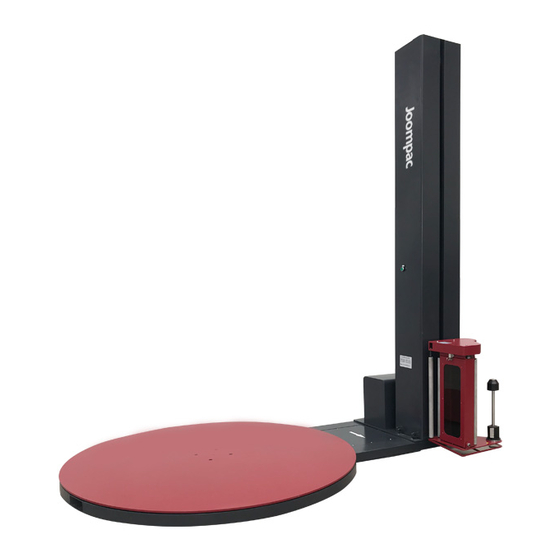

- Page 1 Full-automatic pallet stretch wrapping machine User manual 第 页...
-
Page 2: Table Of Contents
Table of contents Catalogue ............ 错误!未定义书签。 §1 Introduction ..................3 §2 About ....................5 §3 Main parameter ................... 6 §4 Unpacking, installation and debugging ..........7 §5 Facilities maintenance ................. 8 §6 Use of safe ..................11 §7 Product warranty ................13 §8 Instructions for mechanical parts ............ -
Page 3: Introduction
§1 Introduction 1. How to refer to and use this manual 1) Please read this manual carefully before using the machine 2) The manual is the full description of the product. Please keep it with the machine. 3) If the machine is resold or lent to others, this manual shall go with it 4) Do not damage this manual 5) Do not delete or modify this manual without permission 6) If you adjust the technical parameters of the machine, please... - Page 4 turntable. 5) When replacing parts, the power should be cut off and replaced according to the correct steps. 6) During normal packaging, please do not touch the part where the membrane is formed. 7) Do not pack the goods beyond the scope of the package to avoid damage to the film frame.
-
Page 5: About
1. The stretch film wrapping packaging machine is a professional packaging machine with LLDPE stretch film as the packaging material to wrap a variety of goods.2. T100 series film wrapping and stretching packaging machines can reduce the packaging cost, facilitate storage and transportation, and facilitate the recovery of packaging materials (films) to reduce environmental pollution. -
Page 6: Main Parameter
§3 Main parameter 1. Size of packing： Model L(mm) D（mm） H（mm） G(Max kg) T103FZ 800~1200 800~1200 max:2400mm 2000kg Note: the diagonal length of the goods shall not be greater than 1650mm. The technical ； agreement shall prevail for other unmarked equipment 2. - Page 7 pressure 200-300% it is recommended to choose suitable film and drawing equipment to achieve the maximum amount of drawing Ordinary stretch film up to 250% will cause damage to the membrane tissue; our company stretch film can be increased to more than 300%, for you to save packaging costs.
-
Page 8: Unpacking, Installation And Debugging
§4 Unpacking, installation and debugging 1. After the machine arrives at the site, check whether the machine, parts and accessories listed in the packing list are complete and whether the machine is damaged during transportation. 2. Check the certificates to confirm that the machines you will use are qualified products and meet the requirements of your order. -
Page 9: Facilities Maintenance
cable is strictly prohibited). 9. Connect the motor connection and the sensor lead according to the corresponding line number, connect the power supply to the machine power outlet line, confirm the accuracy and conduct ground detection before the test; When connecting, pay attention to the positive and negative direction of the motor. - Page 10 worm speed governor to complete the speed change. During the use process, please use according to the following requirements: A) The reducer is lubricated with oil, and the immersion depth is the full tooth height of the worm if the worm is under or on the side of the worm wheel; The oil immersion depth is 1/3 of the outer diameter of the worm on the worm wheel.
-
Page 11: Use Of Safe
of the equipment. §6 Use of safe 1. Read the manual of inverter carefully before operating the converter. 2. When the machine is in normal use, check every connection part of the machine regularly whether it is loose or falling off. If so, be sure to tighten it. 3. - Page 12 cabinets. 12. Due to the characteristics of frequency converter, the leakage protector cannot be used in the power supply of this equipment, or the leakage protector specially used for frequency converter can be used. 第 页...
-
Page 13: Product Warranty
§7 Product warranty 1. Under the premise of installation, maintenance and use in accordance with the requirements of the machine manufacturer, the product shall be guaranteed for one year from the date of delivery, all expenses shall be borne by the manufacturer, and all expenses beyond the warranty shall be borne by the user. -
Page 14: Instructions For Mechanical Parts
§8 Instructions for mechanical parts 一、 Film carriage： 1. Economical pre-stretch film carriage 1) Film operation diagram: please penetrate the film as follows Chart1 Side 1 Guide roll 2 Floating roll 3 Rubber covered roller 4 Rubber covered roller 5Film roll Chart 2 Front 1 Guide roll... - Page 15 2) Pre-drawn film output Pre-stretching: such as chart 2 shows in the direction of the thin film export is a floating roller guide roller on the swing arm, when the film is pulling the guide roll inward, sensors, sensor less than when the swing arm startup pre-stretching motor, film is output, when traction reduce or relax, swing arm back, sensors, sensor to stop when the swing arm pre-stretching motor output.
- Page 16 pre-stretching motor, the film is output, when traction reduce or relax, swing arm back, sensors, sensor less than stop when the swing arm pre-stretching motor output. In use or manual traction should be appropriately adjusted film tension, to avoid the film is rolled back to the cots, affecting the work efficiency. 3.
- Page 17 year);As shown in the figure, if replacement is needed, please provide the parts number as shown in the figure. Chart 5 Name of part Roller Supporting shaft Baffle Deep groove ball bearing Type A hole with retaining ring Type A shaft with retaining ring 三、...
-
Page 18: Instructions For Electrical Operation
§9 Instructions for electrical operation 一、 Power supply The working power supply used by this device is Voltage: single-phase AC220V ±10% Frequency: 50Hz ±2% Electrical damage or other damage caused by incorrect external power supply is not included in the warranty. 二、... - Page 19 Press this button during the automatic operation of the device to make the device temporarily stop (the device's turntable stops, the motion of the film frame stops, but the device is still in the automatic state). After the device is suspended, press the auto run button again, and the device will continue to run automatically, completing the automatic winding process of the device.
- Page 20 四、 Directions for use 1. Manual operation: Under manual operation mode, press the buttons of turning inventory, membrane frame rising and membrane frame falling respectively to complete manual operation of the equipment. In this mode, the above three keys are all operated by holding down the corresponding part of the key, and stop after releasing the key.
- Page 21 of the man-machine interface again to enter the manual operation mode. 3. Automatic operation: Make the machine in the initial state, put the goods, wear the film, set up the number of up and down turns, up and down times, over the top time and the number of strengthening turns, press the automatic start button, the whole process is completed automatically (photoelectric height measurement is effective), manually raise the press top and remove the goods.
- Page 22 And so on until the up and down times reach the set value of the packaging process is completed. Notes: 1. When the goods are lower than the height of the film frame, the film frame does not rise or fall when the film frame is wound automatically. When the rotary table counts the number of the bottom turns, it slows down and stops, and the packaging process is completed.
- Page 23 五、 Parameter setting and man-machine interface function description 1. Operating instructions for man-machine interface The following four buttons can switch different interfaces, among which the advanced parameter setting interface requires password entry. Upper right corner packaging volume statistics can monitor the packaging volume of the device.
- Page 24 Device status display bar: displays the running status of the device Winding process step: winding process description Turn inventory, film frame rise, film frame fall: three manual keys, press and hold the corresponding motor to start, release and stop; When the motor starts, the corresponding red frame flashes. Speed of turntable, rising speed of film frame, falling speed of film frame: setting of lifting speed of turntable and film frame, unit Hz, range 10-50.
- Page 25 Number of reinforcing cycles: this parameter is set to a range of 1-20 cycles The number of reinforcing turns refers to the number of winding turns in the middle of the cargo after the "reinforcing" button is pressed during the automatic operation of the equipment.
- Page 26 Automatic altimeter: the range of this parameter setting value is 0 -- 1; "0" : the photoelectric height measurement function is not used, which means that the equipment will not detect the height of the cargo when the membrane frame rises in the automatic operation, and the membrane frame will not stop until it reaches the upper limit of rising or reaches the parameters set by the equipment.
- Page 27 Increasing this value can accelerate the rising speed of the membrane frame, and decreasing this value can reduce the rising speed of the membrane frame. Descending speed: this parameter is set to a range of 10-50, the unit is the frequency Hz The falling speed refers to the falling speed of the membrane frame.
- Page 28 Operation instruction: Swing arm extension: press once, swing movement to the position of the broken membrane, during the movement, press again, stop the movement Swing arm return: press once to move the swing arm to the starting position. During the process, press again to stop the movement Film extension - return: press once, extend, press again, return Splint open/tighten: press the splint to tighten and press again to loosen Break film heating: press and hold this button, break film heating wire heating,...
- Page 29 Welding film heating: press once, welding film heating plate heating, press again, stop heating Note: 1. Reach out of the swing arm and return button, the operation will have a delay of 1 second 2. The massage heating should be preheated for about 5 minutes. It is recommended to preheat each time the machine is started 3.
- Page 30 speed. Anti-vibration time: to prevent the jitter of the film feeding motor due to the back pressure of the film after the packaging. If this happens, you can increase the anti - shake time appropriately. Restore factory parameters: this button can restore the default parameters of the factory equipment, and it will take effect after holding down for more than 2 seconds 6.
-
Page 31: Safe
§10 Safe 1. Read the manual of inverter carefully before operating the converter. 2. When the machine is in normal use, check every connection part of the machine regularly whether it is loose or falling off. If so, be sure to tighten it. 3. -
Page 32: Maintenance Record
§11 Maintenance record Date Project User Remark 第 页... -
Page 33: §12 Appendix
§12 Appendix 1、Schematic diagram 第 页... - Page 34 2、Pneumatic schematic 第 页...
