Summary of Contents for CME WIDI-XU

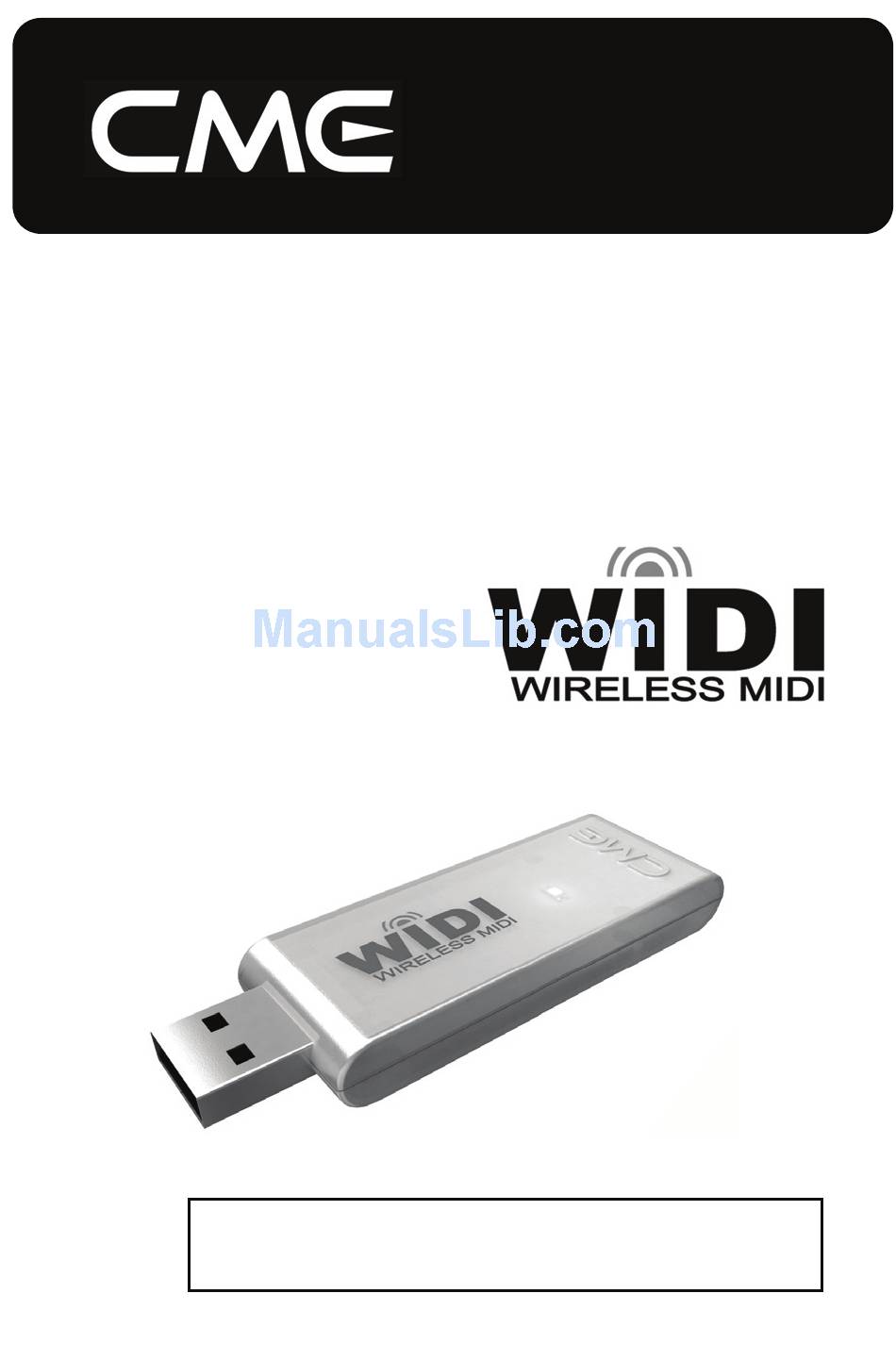

- Page 1 Wireless MIDI Interface User’s Manual ————————————————— Model：WIDI-XU Read “Precautions” on page 5 before use Please read this manual carefully before use. Please keep this manual for reference.
- Page 2 Central Music Co. before copying any part of the manual to any kind of media. © Central Music Co. 2007 Please check all the items in your WIDI-XU package: The WIDI-XU product 1 pcs User’s manual 1 pcs Wireless MIDI Interface User’s Manual...
-
Page 3: Special Message Section
Specifications Subject To Change: The information contained in this manual is believed to be correct at the time of printing. However, CME reserves the right to change or modify any of the specifications without notice or obligation to update existing units. -
Page 4: Environmental Issues
Please study this manual carefully and consult your dealer before requesting service. Environmental Issues: CME strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In... -
Page 5: Disposal Notice
This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by CME may void your authority, granted by the FCC, to use the product. 2. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. - Page 6 12 Do not use the product when thundering; otherwise the thundering may cause long-distance electrical shock. 13 Do not use the product when there is a gas leak nearby. 14 Switch off the product when inside or near aircraft. The use of RF Wireless MIDI Interface User’s Manual...
- Page 7 If you suspect vehicle problems caused by radio transmissions, consult your dealer and do not switch on your WIDI-X8 until it has been checked by qualified approved installers. Wireless MIDI Interface User’s Manual...
-
Page 8: Efficient Use
Hz-300 GHz, Official Journal of the European Communities, July 12,1999. ANSI/IEEE C95.1-1992. “Safety levels with respect to human exposure to radio frequency electromagnetic fields, 3kHz to 300 GHz”. The Institute of Electrical and Electronics Wireless MIDI Interface User’s Manual were developed independent scientific... - Page 9 All the pictures and the LED display in the manual are used for demonstration; they may be different from the real instrument. Trademarks CME and WIDI-XU are the trademarks of Central Music Co. Other names and brands belong to the respective owners. Wireless MIDI Interface User’s Manual...
-
Page 10: Table Of Contents
4.Automation ·········································································· 14 4.1 Automatic Communication Establishing ······················· 14 4.2 Automatic Notes Off ····················································· 15 4.3 On-line Detection ························································· 15 5.Notice·················································································· 15 6.Appendix ············································································· 16 6.1 System Control Messages ··········································· 16 6.2 Channel List································································· 16 Wireless MIDI Interface User’s Manual Content... -
Page 11: Features
Continuous working for more than 20 hours with the battery power supply. Maximum wireless transfer distance is 80m (262 feet) without obstacle. RF means wireless transfer (Radio frequency) Specifications and appearance are subject to change without notice. Wireless MIDI Interface User’s Manual... -
Page 12: System Requirement
2 System Requirement Another WIDI compatible product (or built-in WIDI compatible product) such as UF50/60/70/80, WIDI-X8 or another WIDI-XU. GM compatible sound card. Computer with 366MHz or faster with available USB port. Windows XP/Vista or Mac OS X. Cakewalk, Sonar, Cubase or other music software. -
Page 13: Wireless Connection
The route mode is: USB Note: a): WIDI-XU is used as the receiver to receive the wireless MIDI data from the sender such as another WIDI-XU, and transfer the MIDI data to the computer. In your music software, please choose “USB Audio Device”... -
Page 14: Channel Selecting
System command data: F0 00 20 63 00 07 02 02 10 nn F7 Set the WIDI-XU to channel nn, nn is a hex number from 01 to 40, in dec the data range is 1-64, see appendix 2 for more detail. -
Page 15: Removal Of The Product
1-32. An available WIDI device means this WIDI device dose not establish communication with another one. WIDI devices include WIDI-X8, WIDI-XU, WIDI-EK, etc. 3.5 Removal Of The Product If you finish using the product, please remove it from your computer in the proper way as below: Close the music software that uses the product. -
Page 16: Automatic Notes Off
To get a good communication, the green indicators on both sides should be If many pairs of WIDI products are used at the same place, please limit the channel settings to 1-32 for best communication quality. Wireless MIDI Interface User’s Manual... -
Page 17: Appendix
Disable RF F0 00 20 63 00 07 02 02 10 60 F7 6.2 Channel List Freq Wireless MIDI Interface User’s Manual MIDI data Set channel to nn, nn range 01-40(hex), for 1-64(dec) Auto find an available WIDI device and establish communication... - Page 18 Wireless MIDI Interface User’s Manual...
- Page 19 2007...
