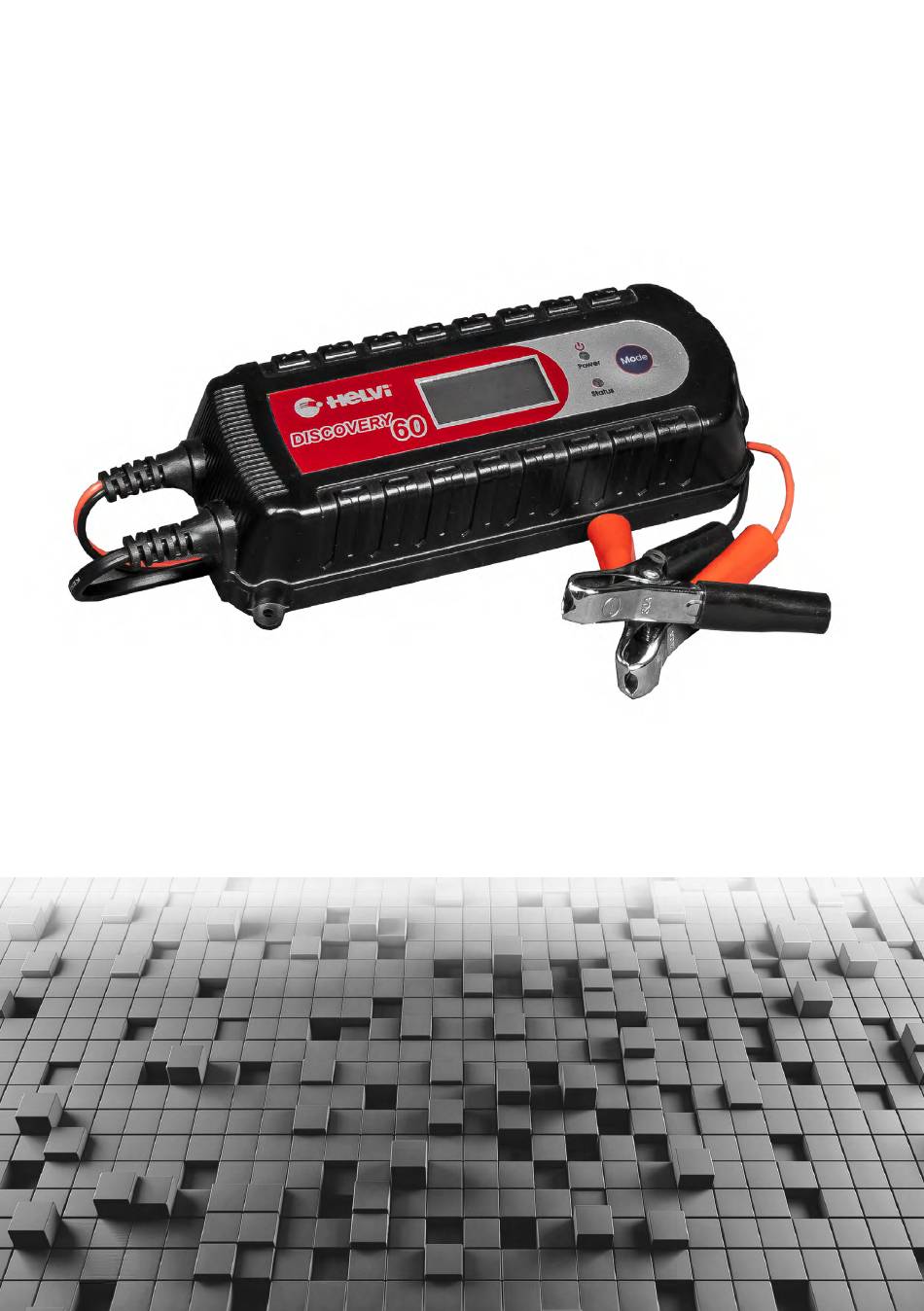

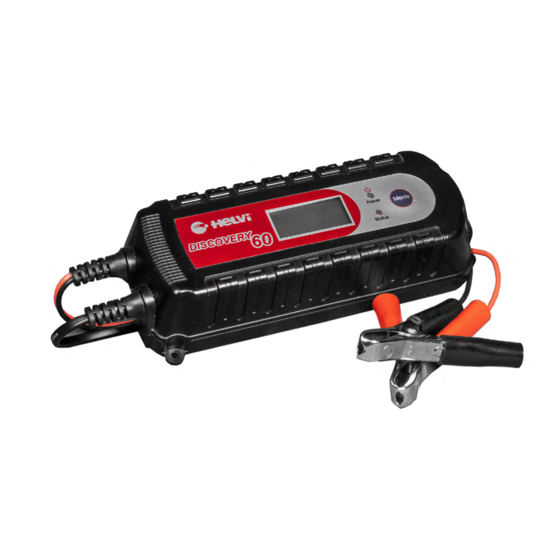

MANUALE DI ISTRUZIONI INSTRUCTIONS MANUAL DISCOVERY 60...
Page 2
Adatto per batterie a 6/12V al Piombo normali o stagne, Batterie al GEL do potenza compresa tra 5 e 120 Ah AVVENTENZE SICUREZZA Quando si inizia a caricare la batteria si potrebbe notare il ribollire del liquido a causa del rilascio di gas. Dato che il gas è infiammabile non si devono avere fiamme libere nelle vicinanze della batteria e l’area deve essere ben ventilata.
Page 3
CARATTERISTIChE Carica batterie automatico con 4 stadi di carica Il DISCOVERY 60 è controllato da microprocessore e ha 4 stadi di carica, adatti alla carica di batterie per automobili, moto, motoslitte, trattori, barche,…. Il microprocessore verifica le condizioni della batteria e genere la corrente e tensio- ne di carica corrette per la batteria (caratteristiche di carica).
Page 4
Modalità LowTemp i: Multimetro 1) Se durante la carica il DISCOVERY 60 viene spento, alla sua riaccensione il pro- cesso di carica ricomincerà dal punto in cui si era interrotto. Attenzione: se le pinze vengono scollegate, la memoria dello stato di carica verrà...
Page 5
FIG.3 Note: i) 6V: quando la tensione della batteria è compresa tra 3.5V-5V, il caricabatterie funziona a 6V / modalità lenta. Il display LCD visualizza la tensione della batteria in tempo reale alla frequenza di 1 Hz e l’icona della batteria scorre. Premere il tasto per mettere in pausa / riprendere il processo di ricarica.
Page 6
FIG.4 FIG.5 PRECAUZIONI E ISTRUZIONI OPERATIVE 1) Precauzioni: a. La tensione di alimentazione del prodotto è di 220 ~ 240 V ; assicurarsi che la tensione di rete si conforme alle specifiche del prodotto prima di utilizzarlo; b. Il caricabatterie è adatto a batteria 6V / 12V al piombo con capacità 5Ah ~ 120Ah; c.
Page 7
FIG.7 FIG.6 B. precarica, corrente costante (Bulk, tensione costante (Assorbimento): fissare i terminali di uscita alla batteria per identificare se è 6V o 12V; per la batteria 6V, inizia la carica in modalità 6V / Slow; per la batteria 12V, inizia la carica in modalità 12V / Slow; è possibile premere il ta- sto MODE per passare tra le tre modalità...
Page 8
E. Carica completa: staccare la spina dalla presa di alimentazione, e quindi rimuo- vere i cavi dalla batteria. MANUTENZIONE E CURA DEL CARICA BATTTERIE E ‘essenziale mantenere la batteria carica regolarmente durante tutto l’anno, so- prattutto durante i mesi invernali. In inverno l’efficacia della vostra batteria dell’auto è...
Suitable for 6/12V Normal Lead Acid, Sealed or Gel Batteries between 5-120Ah IMPORTANT SAFETY INSTRUCTIONS Gases When the battery is being charged you may notice bubbling in the fluid caused by the release of gas. As the gas is flammable no naked lights should be used around the battery, and the area should be kept well ventilated.
Page 10
FEATURES Automatic and Intelligent 4-Stage Charging Curve The DISCOVERY 60 is controlled by a microprocessor with 4-stage charging cha- racteristic for charging batteries automobiles, motorcycles, snow mobiles, tractors, personal watercraft, boats etc.
Page 11
APPEARANCE AND LCD DIAGRAM FIG.2 a: reverse polarity icon b: wrong battery icon c: 12V battery icon d: 6V battery icon e: analog battery icon f: slow mode icon g: fast mode icon h: LowTemp mode icon i: Digit/character icon 1) Power-down memory function: in the charging process (constant current and follow-up stage), the product can re- member the current charging mode after power outage, and restores the original...
Page 12
FIG.3 Remark: i) 6V: When the battery voltage is between 3.5V–5V, the charger will work at 6V/Slow mode. LCD flashes the real time battery voltage at 1Hz frequency and the battery icon scrolls. Press the button to pause/resume the charging process. The battery icon stops scrolling when it is “pause”.
Page 13
FIG.4 FIG.5 PRECAUTIONS AND OPERATING INSTRUCTIONS 1) Precautions: a. The supply voltage of the product is 220~240VAC; please make sure that the mains voltage meets the specifications of the product before using; b. The charger is suitable for 6V/12V regular and Lead-acid batteries with 5Ah ~ 120Ah capacity;...
Page 14
FIG.6 FIG.7 B. Pre-charge, constant current & constant voltage charging: clamp the output termi- nal to the battery to identify 6V or 12V battery; for 6V battery, it will start charging in 6V/slow mode immediately; for 12V battery, it enters 12V/slow mode by default; you can press the MODE button to switch among the three modes sequentially(Slow/ Fast/Low Temp), each time you press the button, the backlight is turned on for 10 seconds;...
E. Charging completes: unplug the power plug, and then remove the clips from the battery. MAINTENANCE AND CARE It is essential to keep your battery regularly charged throughout the year, especially during the winter months. In the winter the effectiveness of your car battery is redu- ced by the cold.
