Shur-Co SHUR COVER Owner's Manual

Sheeting system w/smart3
Hide thumbs

Advertisement

Quick Links

Download this manual
P/N 1127925 Rev. B
Sheeting System w/SMART3™

Advertisement

loading
Need help?

Need help?

Do you have a question about the SHUR COVER and is the answer not in the manual?

Questions and answers

Related Manuals for Shur-Co SHUR COVER

Summary of Contents for Shur-Co SHUR COVER

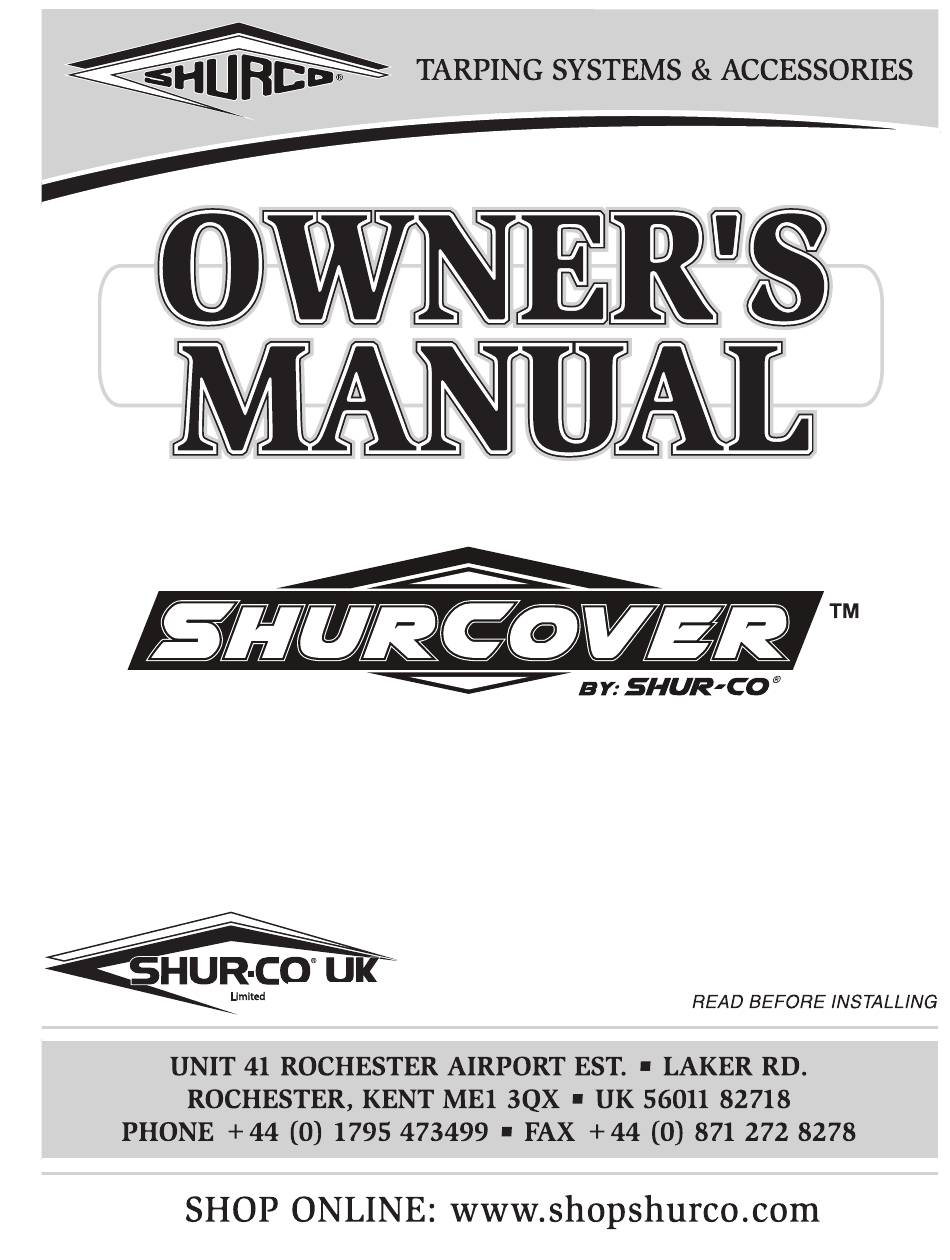

  • Page 1 P/N 1127925 Rev. B Sheeting System w/SMART3™...
  • Page 2 Shur-Co , LLC products will void this product warranty. ® at 866-748-7435, and sent, with freight paid by us, to Shur-Co , LLC, 2309 ® *Certain products have specifi c warranties that differ from this warranty, for example motors and elec- Shur-Lok St., PO Box 713, Yankton, SD 57078.

  • Page 3: Table Of Contents

    P/N 1127925 Rev. B MESSAGE TO OWNERS TABLE OF CONTENTS Hardware Identification/Box Preparation ........1 Thank you for buying this sheetinging system from Shur-Co We ap- ® Sheet Installation ..............2-3 preciate your confidence in our products. Please read and thoroughly Center Pole Drive Motor ..............

  • Page 4: Hardware Identification/Box Preparation

    Hardware Identification P/N 1127925 Rev. B 1705376 - Flanged Cap Screw - M5 x 16 1700407 - Hex Nut - 3/8" 1705357 - Cap Screw - M10 x 1.5 x 45 - CL10 1705353 - Machine Screw - M6 x 10 1705555 - Nylon Lock Nut - M10 x 1.5 1705556 - Cap Screw - M10 x 1.5 x 65 1705371 - Cap Screw - M5 x 12...

  • Page 5: Sheet Installation

    Sheet Installation P/N 1127925 Rev. B Item Part # Description 1. 1123980 Center Pole Plug - UK 2. 1701354 U-Clamp 3. ______ Center Pole 4. ______ Pulling Bar 5. ______ Fixing Bar 6. ______ Sheet (not shown) D. 1700398 Self-Drilling Screw - 1/4" x 3/4" STEP 5: Insert center pole plug assembly into center pole.
  • Page 6 Sheet Installation - continued P/N 1127925 Rev. B STEP 9: Repeat step 7 for fixing bar. STEP 7: Insert center pole into center pole pocket on sheet. Align hole in center pole with hole in sheet and secure 9.5mm sheet to pole with U-clamp and screw .

  • Page 7: Center Pole Drive Motor

    Center Pole Drive Motor P/N 1127925 Rev. B Item Part # Description 1124987 Center Pole Pivot Arm Assembly - High Rise 1124981 Center Pole Pivot Arm Assembly - Low Rise 1128030 Center Pole Drive w/Motor 1128032 Center Pole Drive w/Motor - Reverse Roll 1705344 Wire Clip - 1/2"...

  • Page 8: Web Spool & Drive Motor

    Web Spool & Drive Motor P/N 1127925 Rev. B Item Part # Description 1. 1124434 Spool Bracket - 5.25" UK 1124805 Spool Bracket - 5.25" UK - RR 2. 1705381 Spool Web Guide 3. 1123999 Spool Assembly - 5.25" - UK 4.
  • Page 9 Web Spool & Drive Motor - continued P/N 1127925 Rev. B STEP 3: Fasten spool roller to spool bracket with M12 cap STEP 5A: Align edge of bracket flush with side of trailer or edge screw and lock nut of mounting bracket. spool bracket 300mm...
  • Page 10 Web Spool & Drive Motor - continued P/N 1127925 Rev. B STEP 5D: Secure spool bracket to trailer with impact wrench STEP 6: Install web spool and plastic washer into spool bracket. and four self-tapping screws Secure with impact wrench and screws NOTE: Use lock washers and nuts if possible.
  • Page 11 Web Spool & Drive Motor - continued P/N 1127925 Rev. B STEP 8: Rotate web spool so M8 x 120 screw is facing forward. STEP 10: Push webbing and spacers back into spool and secure Remove screw and loosen other two screws so two with M8 x 120 cap screw and lock washer.

  • Page 12: Smart3™ Wireless Receiver

    SMART3™ Wireless Receiver P/N 1127925 Rev. B spool Item Part # Description bracket 1. 1126867 SMART3™ Remote 2. 1128008 Jumper Wire - Spool - Standard - 300mm 1128009 Jumper Wire - Arm - Standard - 7000mm 1128010 Jumper Wire - Spool - Reverse Roll - 1250mm 1128011 Jumper Wire - Arm - Reverse Roll - 400mm 3.
  • Page 13 SMART3™ Wireless Receiver - continued P/N 1127925 Rev. B STEP 3: Align holes on wireless receiver with holes on trailer. STEP 5: Route connected wires from spool motor to wireless Fasten with screws , washers and nuts receiver. Secure wire to bottom of spool bracket with 5/8"...
  • Page 14 SMART3™ Wireless Receiver - continued P/N 1127925 Rev. B SKIP TO SYSTEM SETUP. STEP 6: Repeat steps 4 through 5 for center pole drive motor. NOTE: Receiver has manual switch. Locate where easily center pole drive motor accessible and safe to operate sheet, typically on driver side of front skin where it can be reached without climbing on trailer.
  • Page 15 SMART3™ Wireless Receiver - continued P/N 1127925 Rev. B STEP 11: Pull all three wires out of rubber grommets on bottom STEP 13: Align holes on wireless receiver with holes on trailer. of receiver bracket. Insert two 1" plugs into rubber Fasten receiver to trailer with screws , washers grommets.
  • Page 16 SMART3™ Wireless Receiver - continued P/N 1127925 Rev. B STEP 15: Connect jumper wire between wireless receiver wire STEP 17: Repeat steps 15 to 16 for center pole drive motor, securing wire to box with wire clips and M6 screws. mandel spool and wire conncected to spool motor.

  • Page 17: System Setup

    System Setup P/N 1127925 Rev. B Item Part # Description 1. 1705554 Webbing Strap Guide - Large 2. 1705553 Webbing Strap Guide - Small 3. 1124992 Webbing Strap Guide Plate - Large 4. 1124989 Webbing Strap Guide Plate - Small K.
  • Page 18 System Setup - continued P/N 1127925 Rev. B STEP 4: Stretch webbing and mark 2540mm from spool bracket. STEP 7: Thread webbing through guides and secure webbing to pull tube. Do not cut webbing to length at this time. Connection may need to be adjusted but should be secured to take full torque of motor.
  • Page 19 System Setup - continued P/N 1127925 Rev. B STEP 9: Press and hold Open button until center pole reaches STEP 11: With sheet still in fully open position, release webbing fully open position, just short of reaching sheet stops. clamps (not supplied) and remove all slack from web- This will protect sheet from damage from rubbing bing and sheet.

  • Page 20: Replacement Parts

    Replacement Parts P/N 1127925 Rev. B SHEET COMPONENTS Item Part # Description 1. 1123980 Center Pole Plug - UK 2. 1700398 Self-Drilling Screw - 1/4" x 3/4" 3. 1701354 U-Clamp 4. ______ Center Pole 5. ______ Pulling Bar 6. ______ Fixing Bar 7.
  • Page 21 Replacement Parts - continued P/N 1127925 Rev. B CENTER POLE DRIVE MOTORS Item Part # Description Item Part # Description 1124970 Center Pole Arm Plate - Manual Side - Standard 16. 1124975 Center Pole Arm Plate - Motor Side - Standard (Includes 32, 37, 38, 39, 41, 2 of 36 &...
  • Page 22 Replacement Parts - continued P/N 1127925 Rev. B WEB SPOOLS & DRIVE MOTORS Item Part # Description 1125376 Replacement Spool Cover Kit (Includes 14, 35, 4 of 3) 1. 1124434 Spool Bracket - 5.25 UK 1124805 Spool Bracket - 5.25 UK - RR 2.
  • Page 23 Replacement Parts - continued P/N 1127925 Rev. B WIRELESS RECEIVERS Item Part # Description 1120817 Female SMARTwire™ - 1.9m 1704994 Female SMARTwire™ - 12m 1704988 Female SMARTwire™ - 19.8m 1704989 Female SMARTwire™ - 27.4m 1125396 Female SMARTwire™ - 30.0m 1128008 Jumper Wire - Spool - Standard - 300mm 1128009 Jumper Wire - Arm - Standard - 7000mm...
