BUNN
®
CWT-CS
CWTF-CS

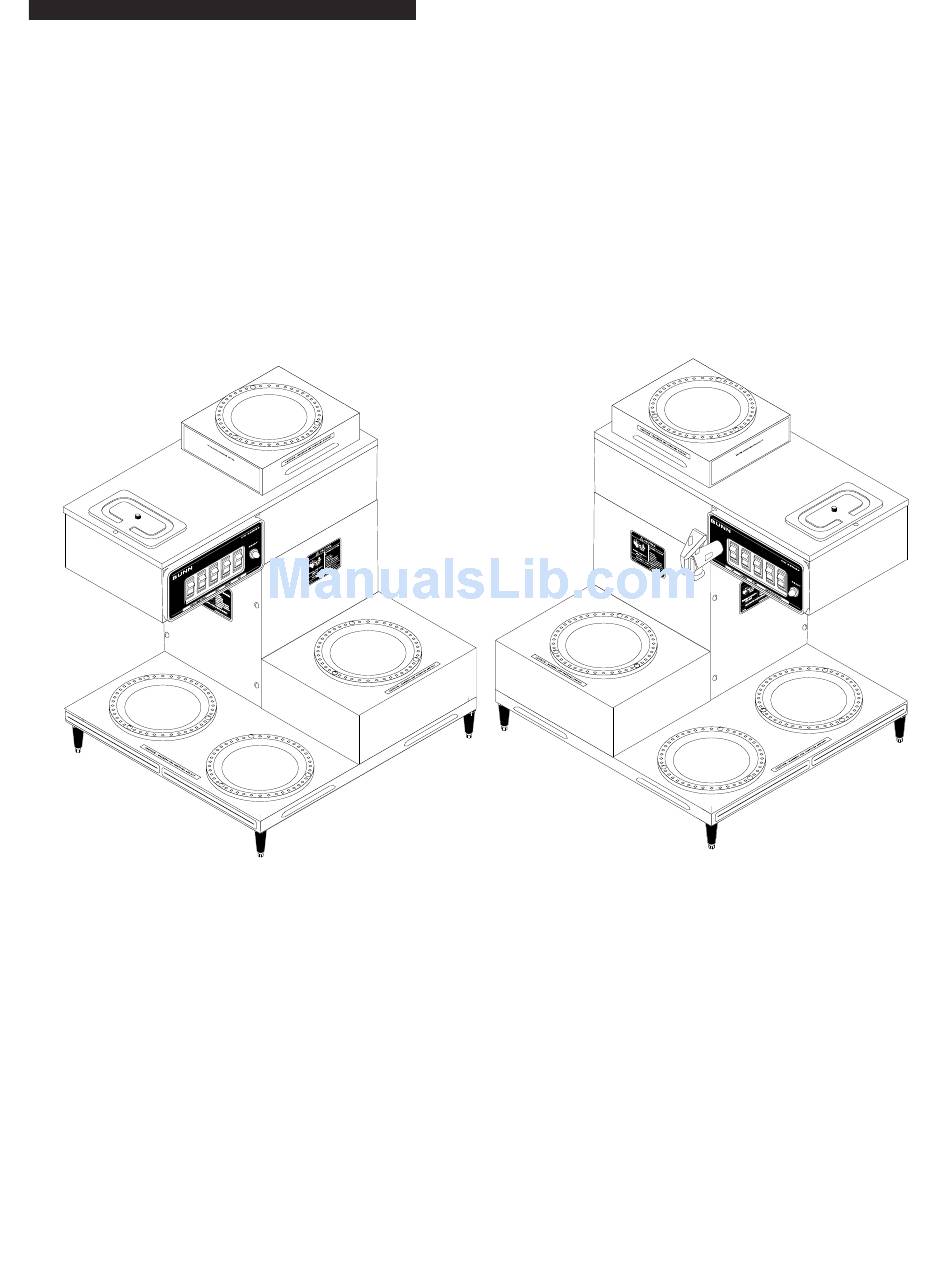

ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifications, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
www.bunnomatic.com
26492.0000 09/02 ©1995 Bunn-O-Matic Corporation
Advertisement
Table of Contents
Related Manuals for Bunn CWT-CS
Summary of Contents for Bunn CWT-CS
- Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifications, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 www.bunnomatic.com 26492.0000 09/02 ©1995 Bunn-O-Matic Corporation...
- Page 2 SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profits, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
- Page 3 TABLE OF CONTENTS Electrical and Operating Controls (Without Faucet) ... 18 Electrical and Operating Controls (With Faucet) ... 20 Faucet and Tubing ... 16 Fill Basin ... 8 Funnel ... 24 Hood, Trunk, Panels and Base (Without Faucet)... 4 Hood, Trunk, Panels and Base (With Faucet) ... 6 Numerical Index...
- Page 4 HOOD, TRUNK, PANELS AND BASE W/OUT FAUCET ® BUNN E HO D SU S AN M ER W AR IO N: : I F IF : . CR D DR . SC . BO HI GH D EL . HE .
- Page 5 HOOD, TRUNK, PANELS AND BASE W/OUT FAUCET ITEM PART NO. QTY. 25310.0001 25633.0003 01303.0000 00916.0000 12364.0000 02722.0000 01319.0000 00912.0000 01592.0001 13350.0013 02308.0000 13354.0000 - - - - - - - - - - - - - - - - 26513.0000 25144.0004 01382.0000 00988.0000...
- Page 6 HOOD, TRUNK, PANELS AND BASE W/FAUCET ® BUNN D IS IF : . CR N TE N TE . SC . BO N TS . HE IL ED IL U . US : 65 . OR W HE N EM...
- Page 7 HOOD, TRUNK, PANELS AND BASE W/FAUCET ITEM PART NO. QTY. 25310.0001 25633.0003 01303.0000 00916.0000 12364.0000 02722.0000 01319.0000 00912.0000 01592.0001 13350.0012 02308.0000 13354.0000 - - - - - - - - - - - - - - - - 26513.0001 25144.0004 01382.0000 00988.0000 00658.0000...
- Page 8 CWT - CS ® FILL BASIN BUNN CWTF - CS P876 26492 030100...
-
Page 9: Fill Basin
ITEM PART NO. QTY. 11424.0000 01212.0000 04270.0002 01201.0000 12914.0002 12928.0000 ------------- FILL BASIN DESCRIPTION Plate, Splash Guard Fitting, Tank Inlet Fill Basin Gasket, Tank Inlet Tube Assembly, Solenoid To Fill Basin (Includes item 6) Grommet, Basin Solenoid (See STRAINER-FLOW CONTROL, SOLENOID & LINES) 26492 030100... - Page 10 TANK AND COMPONENTS W/OUT FAUCET ® BUNN 10 11 CWT - CS CWTF - CS P654 26492 030100...
- Page 11 TANK AND COMPONENTS W/OUT FAUCET ITEM PART NO. QTY. 25319.1000 25319.1001 25319.1002 01315.0000 00912.0000 04119.0000 04118.0000 04260.0000 04221.0000 25158.0002 00908.0000 00942.0000 29329.1000 00943.0000 04236.1000 04636.1000 04637.1000 23769.0000 23768.0000 11431.0002 00908.0000 05515.0000 05518.0000 01075.0000 01082.0007 ------------- DESCRIPTION Tank Assy, 1320W 120V (Includes items 1 thru 14) Tank Assy, 1800W 120V (Includes items 1 thru 14) Tank Assy, 3500W 120/240V (Includes items 1 thru 14) Screw, Truss Head #8-32 x .3/8”...
- Page 12 ® BUNN TANK AND COMPONENTS W/FAUCET CWT - CS CWTF - CS 14 15 P655 26492 030100...
- Page 13 ITEM PART NO. QTY. 25320.1000 25320.1001 25320.1002 01315.0000 00912.0000 04119.0000 04118.0000 04260.0000 04221.0000 25158.0003 00908.0000 00400.0001 12687.0000 12688.0000 12689.1000 29329.1000 00942.0000 00943.0000 04236.1000 04636.1000 04637.1000 20211.0100 23768.0000 11431.0002 00908.0000 05515.0000 05518.0000 01075.0000 01082.0007 -------------- TANK AND COMPONENTS W/FAUCET DESCRIPTION Tank Assy, 1320W 120V (Includes items 1 thru 18) Tank Assy, 1800W 120V (Includes items 1 thru 18) Tank Assy, 3500W 120/240V (Includes items 1 thru 18) Screw, Truss Head #8-32 x .375”...
- Page 14 ® BUNN STRAINER - FLOW CONTROL, SOLENOID AND LINES 14 29 15 16 16 15 BREWERS WITH FAUCET BREWERS WITHOUT FAUCET CWT - CS CWTF - CS SOLENOID REPAIR PARTS P870 26492 030100...
- Page 15 STRAINER - FLOW CONTROL, SOLENOID AND LINES ITEM PART NO. QTY. 26440.0222 26216.0000 20577.0001 21812.0010 22300.0222 26217.0001 22249.0000 23721.0000 ------------- 22307.0222 20526.1222 01155.0000 01154.0000 00459.0000 01532.0000 00463.0000 26322.0000 26320.0000 00402.0001 01085.0000 01327.0000 01502.0000 07441.0000 02308.0000 -------------- 26319.0000 01079.0000 01101.0000 01111.0000 24356.0222 24354.0000 00670.0000...
- Page 16 ® BUNN 6 7 8 9 10 11 FAUCET AND TUBING CWT - CS CWTF - CS 26492 030100 P871...
- Page 17 ITEM PART NO. QTY. 26456.0000 13059.0000 01532.0000 12915.0000 13061.0000 13053.0000 02858.0000 13060.0000 13055.0000 13054.0000 13056.0000 13057.0000 13058.0000 ------------- FAUCET AND TUBING DESCRIPTION Tube Assembly, Coil to Faucet Faucet Jam Nut Lockwasher, Internal Tooth .438” I.D. Faucet, Hot Water (Includes items 5 thru 14) Faucet Handle/Stem Assembly (Includes items 6 thru 11) Faucet Handle Kit (Includes item 7) Pin, Spring .125”...
- Page 18 ® BUNN ELECTRICAL AND OPERATING CONTROLS W/OUT FAUCET MODEL 20 & 35 BREWERS 12 11 15 13 REPLACEMENT PART 18 19 CWT - CS CWTF - CS 2 3 2 2 3 2 AI SE T- R -F R W ER...
- Page 19 ELECTRICAL AND OPERATING CONTROLS W/OUT FAUCET ITEM PART NO. QTY. 12921.0000 12920.0000 01063.0000 22295.0013 22295.0014 04243.0000 13352.0008 02301.0000 01510.0000 02371.0000 22289.0001 12984.0002 12984.0004 01663.0000 02235.1000 02308.0000 04227.1001 02308.0000 12698.0000 01347.0000 02308.0000 02332.0001 00870.0000 07038.0000 01317.0000 07073.0000 23697.0000 23696.0000 25102.0000 23522.0000 01686.0000 01685.0000 01719.0000...
- Page 20 ELECTRICAL AND OPERATING CONTROLS W/FAUCET ® BUNN 2 3 2 2 3 2 /R EA S TA /R EA W ER -F R S TA T- R A IS W ER -F R T- R A IS THREE LOWER ONE UPPER &...
- Page 21 ELECTRICAL AND OPERATING CONTROLS W/FAUCET ITEM PART NO. QTY. 12921.0000 12920.0000 01063.0000 22295.0013 22295.0014 04243.0000 13352.0008 02301.0000 01510.0000 02371.0000 22289.0003 12984.0002 12984.0004 01663.0000 02235.1000 02308.0000 04227.1001 02308.0000 12698.0000 01347.0000 02308.0000 02332.0001 00870.0000 07038.0000 01317.0000 07073.0000 23697.0000 23696.0000 25102.0000 23522.0000 01686.0000 01685.0000 01719.0000 12985.0000...
- Page 22 ® BUNN WARMER ASSEMBLIES CWT - CS CWTF - CS P874 26492 030100...
- Page 23 ITEM PART NO. QTY. 03652.0000 01303.0000 00916.0000 11440.0005 01303.0000 00916.0000 03656.0000 01227.0000 11442.0000 13042.0001 05212.0000 00970.0000 -------------- -------------- 28382.0000 25348.0000 24204.0001 25326.0000 04828.1001 WARMER ASSEMBLIES DESCRIPTION Warmer Assembly 100W 120V, Top and Side Warmers (Includes items 3 thru 6) Screw, Pan Head #4-40 x .50” Fastener, J-Type #4-40 Warmer Assembly 100W 120V, Base Warmers (Includes items 3 thru 6) Screw, Pan Head #4-40 x .50”...
- Page 24 CWT - CS FUNNEL ® BUNN CWTF - CS P875 26492 030100...
- Page 25 FUNNEL ITEM PART NO. QTY. DESCRIPTION 04274.0002 Funnel, Pouch-Pack Black (Large)(7.125”) 26492 030100...
-
Page 26: Numerical Index
PART NO. PAGE NO. PART NO. 02765.0000 ... 5,7 00400.0001 ... 13 02858.0000 ... 17 00402.0001 ... 15 00459.0000 ... 15 02999.0000 ... 5,7 00463.0000 ... 15 03359.0001 ... 5,7 00656.0000 ... 5,7 03652.0000 ... 23 00658.0000 ... 5,7 03656.0000 ... 23 00670.0000 ...
