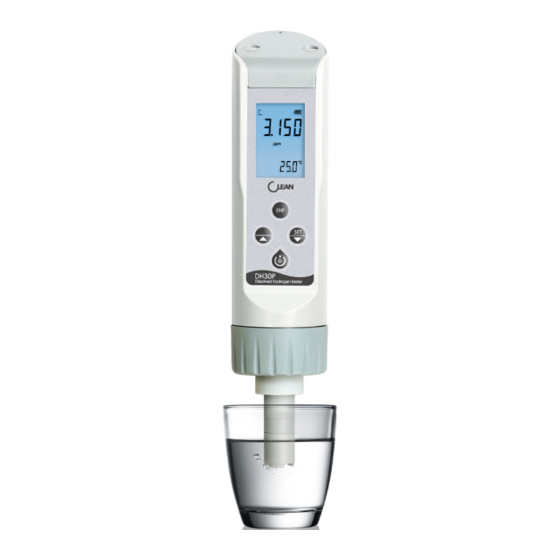

CLEAN Instruments DH30P Instruction Manual

DH30P tester
Operation
Manual
Professional Dissolved Hydrogen meter
Instruction Manual
Thank you for selecting Clean products.
Before using the meter, relevant person must read and understand the contents
of this operation manual. Operation Manual should be kept accessible within
the person who use the meters.
DH30P tester body
MDH30P tester body
CS6933 sensor
1.5VAAA battery *1
Electrode electrolyte-(ESDH6933 30mL )
Replacement membrane cap*2- (CS6933CAP)
P
Dissolved Hydrogen Meter
Instruction Manual

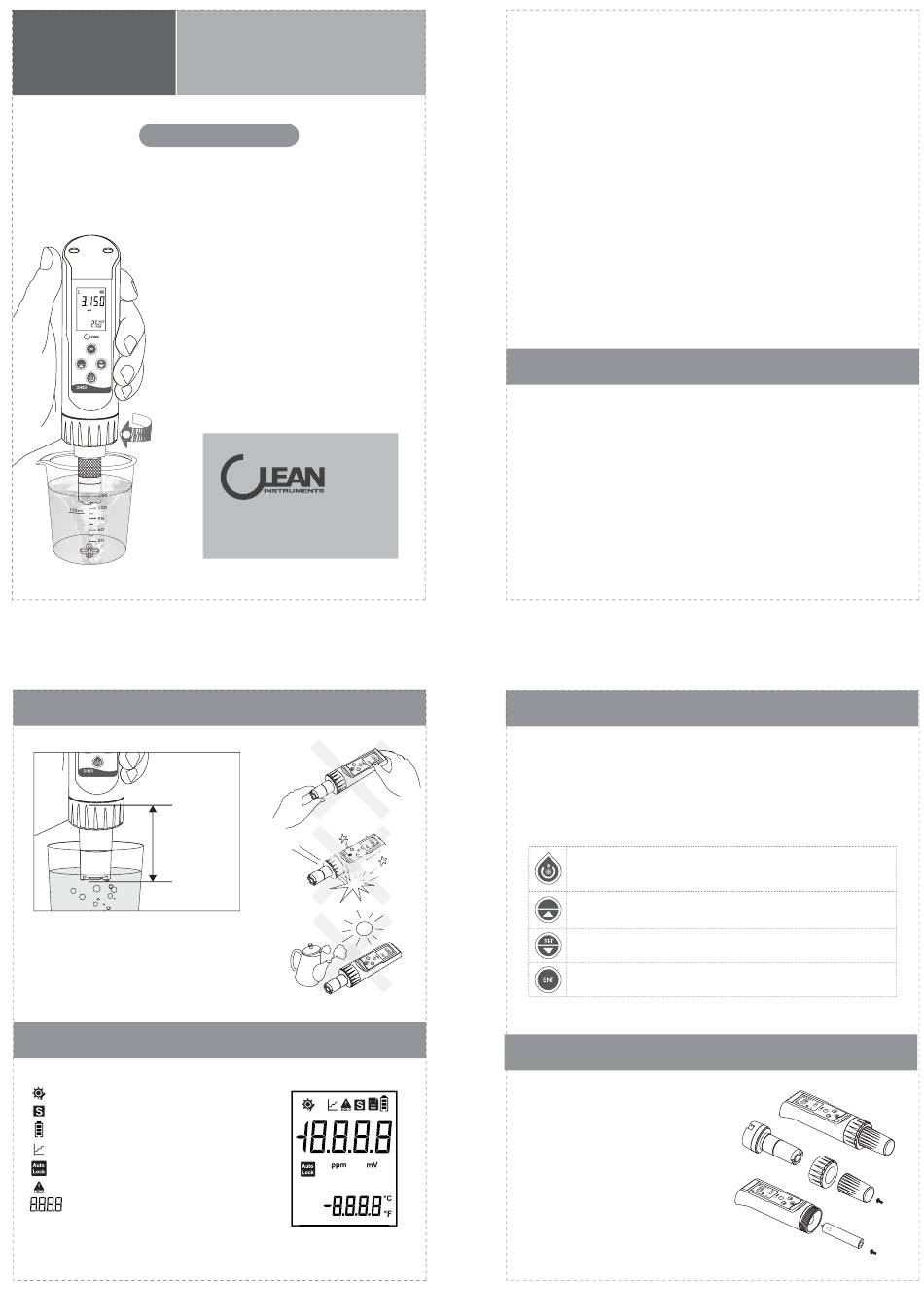

2. Precautions
Dissolved Hydrogen Meter
Immersion
depth:
≤50mm
H
H
2 2
H
2
H
H
2
2
H
Please wipe up the electorde with clean tissue or cloth before using.
Do not throw or beat ,squash or twist the tester deliberately.
Do not expose to the direct sunlight or
put in high humidity or high temperature environment .
3. Configuration and LCD Introduction
Set up
Data stabilized
Low battery indicator
Measurement mode
Auto Lock function
Auto Lock after data stabilized
Measuring value
ppm,mV - measuring mode, unit
www.cleaninst.com
Customer Service: CS@cleaninst.com
-3-
TABLE OF CONTENTS
1. Product Overview
····························································
2. Precautions ····································································
3 Configuration and LCD Introduction
4. Key Panel ·········································································
5.
Battery and electrode installation
6. Before measurement ·······················································
7.
Sample measurement ····················································
8. Set up
···············································································
9. Specification ···································································
10. Package
·········································································
11. General Information
1.Product Overview
DH30P is designed based on polarography principle. Hydrogen molecule in hydrogen
water enters the electrode chamber filled with electrolyte through selective
semipermeable membrane of electrodes. Under polarization voltage between
anode and cathode, current related to the concentration of dissolved hydrogen is
generated. With temperature compensation, the concentration value of dissolved
hydrogen is obtained.
The measurement range of this DH30P is up to 8 ppm. It can be assured to selectively
measure dissolved hydrogen without interference from other reducing substances.
-2-
4. Key panel
Key instruction
Short press: Short press means release the key once after pressing.
(If there is no mark out below, default it as Short press)
Long press: Long press means press the key for 3 seconds and then release it
Hold: Hold means not release the key and accelerate after a certain time. Not release the key
until the value is set as needed.
Long press to Power ON/OFF
Short press to ON/OFF backlight
Escape key when in mV mode and setting up
Long press to enter into mV mode
Increment values or scroll through the next options available
Data setting
Decrement values or scroll through the next options available
Confirm key
Press to unlock in Auto lock mode
5. Battery and Electrode installation
Unscrew the screw cap by following the
arrow direction, slightly unplug the
electrode, install the battery(pay attention
to the anode and cathode of the
electrode).
Then install back the electrode and the
screw cap.
Low battery prompt is at the top of the
screen when battery power is low.( You can
refer to the LCD INTRODUCTION). Please
change the same model battery.
-4-
·····················
···································
··················································
