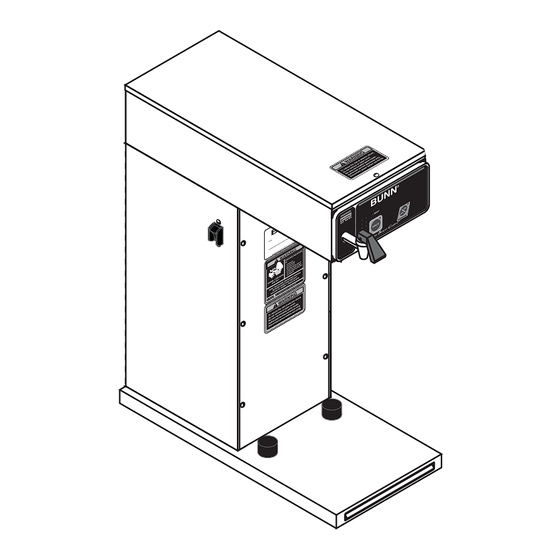

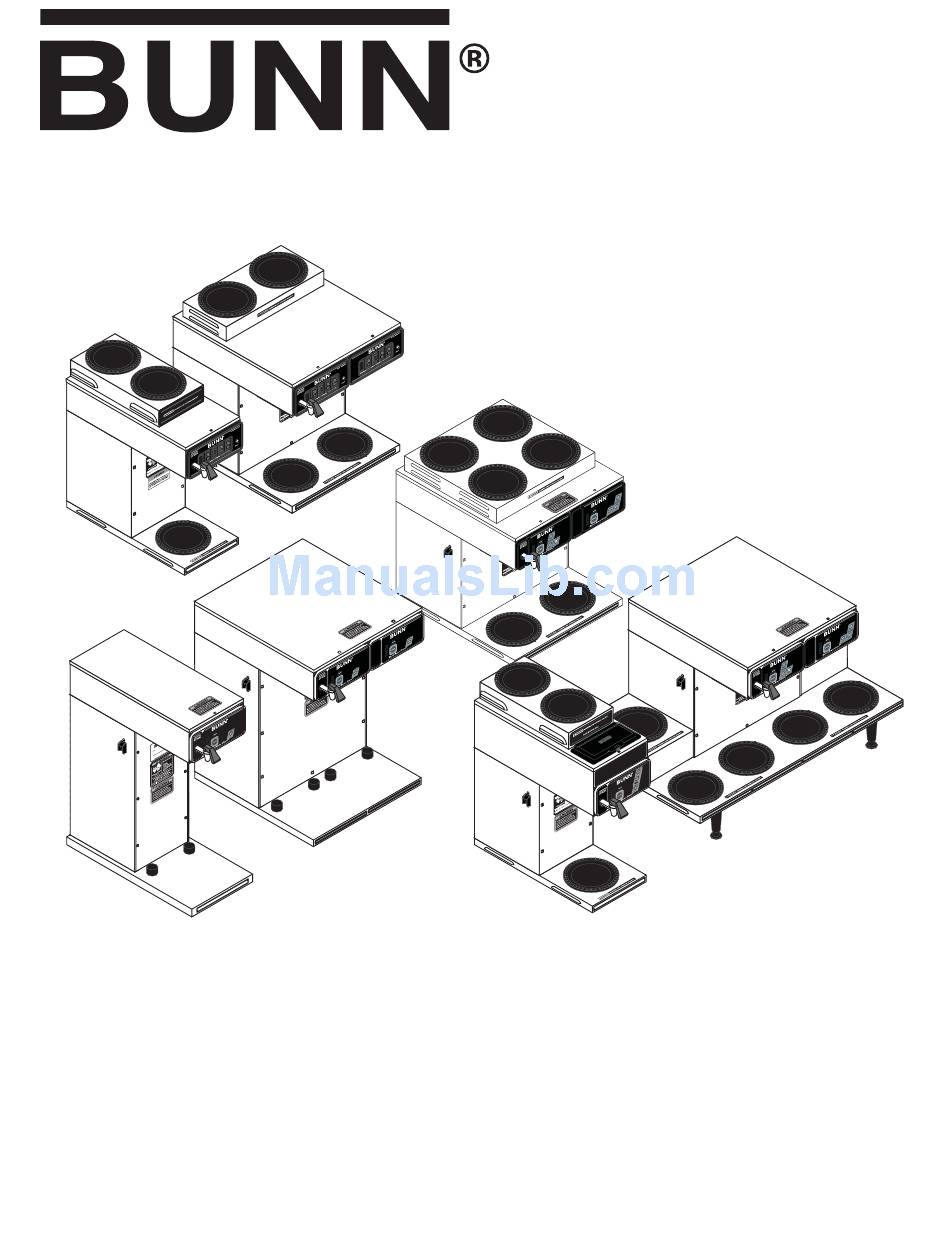

CDBC-CEZ Series
Including DV, MV, Pourover,
APS, TC, TS, & Twin
Supercedes Illustrated Parts Catalogs:
29080.0000; 29080.0001; 29254.0000;
29320.0000; 29900.0000; 36672.0001
ILLUSTRATED PARTS CATALOG
Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts
are subject to change without notice.
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601 FAX: (217) 529-6644
39485.0000B
05/07 ©2006 Bunn-O-Matic Corporation
www.bunn.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Bunn CDBCF TC-DV
Summary of Contents for Bunn CDBCF TC-DV
- Page 1 ILLUSTRATED PARTS CATALOG Designs, materials, weights, specifi cations, and dimensions for equipment or replacement parts are subject to change without notice. BUNN-O-MATIC CORPORATION POST OFFICE BOX 3227 SPRINGFIELD, ILLINOIS 62708-3227 PHONE: (217) 529-6601 FAX: (217) 529-6644 39485.0000B 05/07 ©2006 Bunn-O-Matic Corporation www.bunn.com...
- Page 2 TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages.
-
Page 3: Table Of Contents
TOP COVERS ... 4 HOOD ASSEMBLIES ...6 TRUNKS ...8 BASES ...12 TANK AND COMPONENTS ... 16 DISPENSE VALVE, SPRAYHEAD, & FAUCET ... 20 FILL SOLENOID VALVE AND DRAIN ... 24 WARMER ASSEMBLIES ...26 ELECTRICAL AND OPERATING CONTROLS ... 28 FUNNELS ... 34 NUMERICAL INDEX ... -
Page 4: Top Covers
Early Style CDBCP 4/2 TWIN 11 12 13 14 0/6 & APS TWIN * Indicates the part number listed is OBSOLETE. TOP COVER ASSEMBLIES ^ Indicates the part number listed is for reference only. CDBC-CEZ Series CDBC & CEZ CDBC & CEZ CDBC CDBCP 2/2 TWIN... - Page 5 ITEM PART NO. QTY. TWIN 02722.0000 01319.0000 00912.0000 25312.0001* 38498.1000 38496.1002 01592.0001 24254.0001 12364.0000 25151.0000 25151.0001 23260.1005 01303.0000 01303.0002 28382.0000 01592.0000 01347.0000 29206.0000 37881.0000 37881.0002 23260.1004 23260.1008 34070.1001 25309.1004 34069.1000 25312.1004 02765.0000 38504.1004 24254.0002 25864.1001 29684.0000 25312.1007 02732.0000 01315.0000 * Indicates the part number listed is OBSOLETE. TOP COVER ASSEMBLIES QTY.
-
Page 6: Hood Assemblies
CDBC CDBCP * Indicates the part number listed is OBSOLETE. HOOD ASSEMBLIES CDBC TWIN ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3770.4 39485 052107... -
Page 7: Hood Assemblies
ITEM PART NO. QTY. TWIN 34063.0000 34063.0001 34063.0002 02308.0000 36757.1000 36757.1001 02308.0000 32143.0000 37182.0000 29314.0002 29314.0004 02308.0000 * Indicates the part number listed is OBSOLETE. HOOD ASSEMBLIES QTY. DESCRIPTION SINGLE Housing, Hood SST (All CDBC Series Except Pour in) Housing, Hood BLK (All CDBC Series Except Pour in) Housing, Hood SST CDBC w/Wide Funnel (7.625") Screw #8-32 x .375"... -
Page 8: Trunks
* Indicates the part number listed is OBSOLETE. TRUNKS APS/TS Standard & TC TWIN-APS ^ Indicates the part number listed is for reference only. CDBC-CEZ Series All models with receptacle and/or fuse (MV) are now obsolete P3771.4 39485 052107... - Page 9 ITEM PART NO. QTY. TWIN 34061.1000 25352.0005 34061.1001 34081.1000 23320.1002 32325.0000 32325.0001 29581.0000 29581.0001* 02308.0000 00970.0000 00988.0000 22748.0000 22748.0001 22748.0002 34115.0000 37930.0000 00970.0000 26287.0000 22733.0000 02308.0000 27929.0000 02308.0000 00656.0000 00986.0000 00669.0003 11408.1002 11408.1005 11408.1006 22730.1002 22730.1005 22730.1003 22730.1009 01382.0000 01382.0002 26283.1000 26283.1001 23267.1000...
- Page 10 * Indicates the part number listed is OBSOLETE. TRUNKS APS/TS Standard & TC TWIN-APS ^ Indicates the part number listed is for reference only. CDBC-CEZ Series All models with receptacle and/or fuse (MV) are now obsolete P3771.4 39485 052107...
- Page 11 ITEM PART NO. QTY. TWIN 29076.0000 29077.0000 29077.0001 29077.0002 29077.0004 29077.0005 29257.0000 29257.0001 29257.0002 29323.0000 29323.0001 29323.0002 29323.0003 29323.0004 29685.0000 29685.0001 29685.0002 29685.0003 29685.0004 29685.0005 32161.0000 29167.0000 29710.0000 29710.0004 29710.0007 02822.0000 12183.0002 12104.0000 * Indicates the part number listed is OBSOLETE. TRUNKS QTY.
-
Page 12: Bases
APS/TS Early style APS base w/drip shield is obsolete. Illustration shown for reference only. TWIN-0/6 * Indicates the part number listed is OBSOLETE. BASES 3 Lower Warmers CDBC ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 1 Lower Warmer TWIN-APS TWIN-2/2 &... - Page 13 ITEM PART NO. QTY. TWIN 23321.0000 23321.0001 23321.0002 23321.0003 23321.0004 22999.0000 02332.0002 00754.0001 22740.0000 25137.0001 24600.0000 22306.0000 25351.0000 25351.0001 25351.0002 24805.0000 02332.0002 25137.0000 35712.0000 12364.0000 01592.0000 01593.0000 25658.0000 25658.0002 02308.0000 25657.0000 25657.0001 25657.0002 12667.0001 26413.0000 26413.0001 29822.0000 02308.0000 23698.1000 23698.1001 02308.0000 12921.0000 * Indicates the part number listed is OBSOLETE.
- Page 14 APS/TS Early style APS base w/drip shield is obsolete. Illustration shown for reference only. TWIN-0/6 * Indicates the part number listed is OBSOLETE. BASES 3 Lower Warmers CDBC ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 1 Lower Warmer TWIN-APS TWIN-2/2 &...
- Page 15 ITEM PART NO. QTY. TWIN 24253.0001 24253.0002 02308.0000 24230.0000 23329.0000 02332.0002 26528.0001 03359.0001 13255.0005 24253.0000 24253.0003 02308.0000 26953.0000 02308.0000 * Indicates the part number listed is OBSOLETE. BASES QTY. DESCRIPTION SINGLE Base W/decals, Sst (Includes Items 10 & 21) Twin 0/6 Base W/decals, Blk (Includes Items 10 &...
-
Page 16: Tank And Components
* Indicates the part number listed is OBSOLETE. TANK AND COMPONENTS CDBCP Only ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3773 39485 110706... - Page 17 ITEM PART NO. QTY. TWIN 28731.0000 28731.0001 33937.0002 33937.0003 33937.0004 00908.0000 01511.0000 04260.0000 01927.0000 01928.0000 29329.1000 28735.0000 32138.0000 00908.0000 04221.0000 07412.1002 20248.0000 38114.0000 29327.0000 33801.0001 38969.0001 02536.0000 02755.1000 02756.1000 05037.1000 02805.1000 29669.1000 20942.1000 00943.0000 00942.0000 12422.0001 29279.0000 29485.1000 29485.1001 34813.0000 * Indicates the part number listed is OBSOLETE.
- Page 18 CDBC-CEZ TANK AND COMPONENTS Series STANDARD POUR OVER MV & DV P3774 39485 052107 * Indicates the part number listed is OBSOLETE. ^ Indicates the part number listed is for reference only.
- Page 19 ITEM PART NO. QTY. TWIN 34074.1001 34074.1002 34074.1003 34074.1004 34074.1005 34074.1006 34074.1007 34074.1009 34074.1011 34074.1016 34074.1018 34074.1025 Kit Number Description 34074.1001 1425W 120V Pour Over 34074.1002 3500W 200V Pour Over 34074.1003 1800W 120V Pour Over 34074.1004 3000W 240V Non P-O 34074.1005 1425W 120V Non P-O 34074.1006...
-
Page 20: Dispense Valve, Sprayhead, & Faucet
DISPENSE VALVE, SPRAYHEAD, & FAUCET 8 9 24 * Indicates the part number listed is OBSOLETE. Pour In Models Only ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3775.7 39485 102006... - Page 21 DISPENSE VALVE, SPRAYHEAD, & FAUCET ITEM PART NO. QTY. TWIN 27370.0000 27370.0001 27370.0002 00970.0000 11517.0008 12422.0001 20976.0008^ 39149.0000 28747.0001 00943.0000 01075.0000 02795.0004 12422.0009 39331.0000^ 39331.1000 39331.1001 39331.1002 32591.0002^ 36099.0000 20976.0046^ 29264.0000 01544.0000 29075.0000 02861.0003 02854.0000 02595.0000 02766.0000 02856.0005^ 02858.0000 13054.0000 02594.0000 12422.0005 38227.0000...
- Page 22 DISPENSE VALVE, SPRAYHEAD, & FAUCET 8 9 24 * Indicates the part number listed is OBSOLETE. Pour In Models Only ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3775.7 39485 102006...
- Page 23 DISPENSE VALVE, SPRAYHEAD, & FAUCET ITEM PART NO. QTY. TWIN 28526.0018^ 34097.0000 11424.0000 01540.0000 04270.0000 01537.0000 00957.0000 03102.0000 20248.0000 28526.1001 28526.1002 28526.1003 20976.1000 20976.1001 20976.1002 32591.1001 32591.1002 * Indicates the part number listed is OBSOLETE. QTY. DESCRIPTION SINGLE Tube, Syphon, .313" ID x 12.25" (Order item 35) Tube, Water Inlet Plate, Splash Guard Washer, SST .75"...
-
Page 24: Fill Solenoid Valve And Drain
* Indicates the part number listed is OBSOLETE. FILL SOLENOID VALVE AND DRAIN ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3776.7 39485 102006... - Page 25 ITEM PART NO. QTY. TWIN 38969.0001 32591.0012^ 32591.0013^ 00459.0000 01532.0000 00463.0000 29065.0000 29486.0000 28750.0000 28750.0001 28750.0002 28750.0003 02325.0001 39975.0000 39975.0001 39975.0002 39975.0003 39975.0004 12422.0001 20976.0010^ 20976.0042^ 38948.0001 28526.0009^ 11630.0001 32098.0000 12422.0006 20976.0005^ The Following Items Are Not Illustrated 35116.0000 28526.1001 28526.1002 28526.1003 20976.1000...
-
Page 26: Warmer Assemblies
UPPER & SIDE HOUSING WARMERS BASE WARMERS * Indicates the part number listed is OBSOLETE. WARMER ASSEMBLIES ‘A” &”B” MODELS ONLY ‘A” &”B” MODELS ONLY ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 120V & 120/240V MODELS ONLY 120V &... -
Page 27: Warmer Assemblies
ITEM PART NO. QTY. TWIN 03652.0000 11440.0009 11440.0011 01303.0000 00916.0000 01227.0000 01951.0000 01951.0001 11440.0005 11440.0008 11440.0010 01303.0000 00916.0000 11442.0000 11438.0000 11438.0001 03656.0000 13042.0001 05212.0000 00970.0000 04828.0001^ The Following Items Are Not Illustrated 04828.1001 24785.0002 All warmers listed above are rated @ 100 watts * Indicates the part number listed is OBSOLETE. -
Page 28: Electrical And Operating Controls
ELECTRICAL AND OPERATING CONTROLS TWINS Models w/one Power Cord Only * Indicates the part number listed is OBSOLETE. ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 27 28 29 24 23 22 35 21 CDBC 19 25 26 P3777.4 39485 052107... - Page 29 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. TWIN 23522.0000 25102.0000 23696.0000 23697.0000 03628.0000 28176.0000 02308.0000 22012.0002 06064.0000 01719.1000 38074.0000 01686.0000 01685.0000 01590.0000 28740.0000 02308.0000 02332.0001 29446.0004 01315.0000 00985.0000 01106.0000 01106.0001 01106.0003 07038.0000 01317.0000 00824.0000 27705.0000 01327.0000 23522.0001 01309.0000 29008.0000 29082.0000 00973.0000 29263.0000...
- Page 30 ELECTRICAL AND OPERATING CONTROLS TWINS Models w/one Power Cord Only * Indicates the part number listed is OBSOLETE. ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 27 28 29 24 23 22 35 21 CDBC 19 25 26 P3777.4 39485 052107...
- Page 31 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. TWIN 28975.1000 28975.1001 28975.1002 28975.1004 38956.1000 02362.0000 38044.0000 01518.0000 34813.0000 29673.0000 28177.0000 01317.0000 29007.0000 29265.0000 29006.0001 29006.0002 29006.0003 29006.0004 29006.0005 29006.0012 29006.0013 29006.0014 29006.0018 12921.0000 01063.0000 12920.0000 12517.0001 03851.0000 23376.0000 02308.0000 29484.0000 29484.0001 38894.0001 01308.0002...
- Page 32 ELECTRICAL AND OPERATING CONTROLS TWINS Models w/one Power Cord Only * Indicates the part number listed is OBSOLETE. ^ Indicates the part number listed is for reference only. CDBC-CEZ Series 27 28 29 24 23 22 35 21 CDBC 19 25 26 P3777.4 39485 052107...
- Page 33 ELECTRICAL AND OPERATING CONTROLS ITEM PART NO. QTY. TWIN 29072.0000 29072.0001 29072.0003 29072.0004 29072.0005 29072.0006 29072.0007 29072.0008 29072.0010 29072.0011 29072.0012 29072.0013 29679.0000 29679.0001 29680.0000 29681.0000 29682.0000 34055.0000 34707.0004 The Following Harnesses are for Later Models With On/Off Switch 29072.0025 29072.0026 29072.0027 29072.0028 29072.0029...
-
Page 34: Funnels
Plastic ‘C’ Funnel SST Gourmet ‘C’ Funnel * Indicates the part number listed is OBSOLETE. FUNNELS Pouch Pack Funnel SST ‘C’ Funnel ^ Indicates the part number listed is for reference only. CDBC-CEZ Series P3703 39485 102006... - Page 35 ITEM PART NO. QTY. TWIN 20583.0003 29351.0001 20583.0006 33119.0000^ 33127.0000^ 32964.0000 32966.0000 29151.0000 29151.0001 04274.0010 04274.0012 29150.0000^ 29152.1000 29152.1001 01331.0002 29845.0000 35302.0000 01331.0000 34559.0000 34559.0001 34558.0000^ 34546.0000 20216.0000 20216.0001 20217.0000 20217.0001 28553.0000 28554.0000 33088.0000 33090.0000 01031.0000 20244.1000 20244.1001 01331.0002 03408.0002 03409.0002 28694.0000 * Indicates the part number listed is OBSOLETE.
-
Page 36: Numerical Index
PART NO. PAGE NO. PART NO. 00459.0000... 25 01951.0000... 27 00463.0000... 25 01951.0001... 27 00656.0000... 9 02301.0000... 29 00658.0000... 9 02302.0000... 29 00669.0003... 9 02308.0000... 7,9,13 00754.0001... 13 02308.0000... 15,29,31 00824.0000... 29 02325.0001... 25 00908.0000... 17 02332.0001... 29 00912.0000... 5 02332.0002... - Page 37 PART NO. PAGE NO. PART NO. 26413.0000... 13 29072.0007... 33 26413.0001... 13 29072.0008... 33 26528.0001... 15 29072.0010... 33 29072.0011... 33 26953.0000... 15 27370.0000... 21 29072.0012... 33 27370.0001... 21 29072.0013... 33 27370.0002... 21 29072.0025... 33 29072.0026... 33 27705.0000... 29 27929.0000... 9 29072.0027...
