Summary of Contents for Varde Aura 7

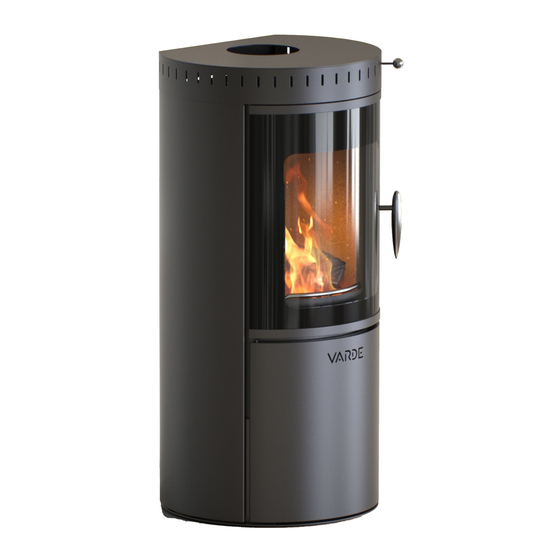

- Page 1 Varde Aura 7 Installation and User Manual Revision 1 Pottemagervej 1, 7100 Vejle, Denmark. www.vardeovne.dk...
-
Page 2: Table Of Contents
Wood-burning stoves from VARDE stand on the stylistic bedrock of Scandinavian design – created with the ambition of unifying quality, functionality and design. With a VARDE stove, you and your family are ensured a warm gathering point and tranquil quality moments for many years into the future. - Page 3 Technical data, Aura 7 Combustion chamber: (H x W x D): Height (cm) 24.5-36.0x30.0x28.0 cm Width (cm) Depth (cm) Smoke outlet Ø 15 cm Weight (kg) Installation height, top: 98 cm Output 3-7 kW Installation height, rear: 83 cm Nominal output 5.0 kW...
- Page 4 Important! Applicable regulations Before you install and use your new Varde The installation must comply with all local stove for the first time, we recommend that regulations, including those that refer to you first spend a couple of minutes reading this national and European standards.
- Page 5 General advice and instructions are available on the Varde Ovne website. www.vardeovne.dk Floor material: If the stove is to stand on a flammable floor, then the floor area on which it stands must naturally be covered by a non-combustible material, e.g. a steel sheet, glass sheet, tiles or artificial slate sheet.
-
Page 6: Installation Distances
From the sides: 35 cm Rear: 15 cm Distance to furniture: 90 cm NB: Note that B (from chimney to the wall) is a recommendation. There may be different local/national rules. Aura 7 15 cm 35 cm 45 cm 90cm... -
Page 7: Chimney
It is recommended that you consult with your local chimneysweeper for more specific advice. Condensation drain in the flue collar Your stove is fitted with a cast iron flue collar from Varde Ovne. The flue collar is designed for a flue pipe (chimney) with an inner diameter of 150 mm. - Page 8 Connecting the flue: Connect the stove using the top outlet Connect the stove using the rear outlet. 1. Cut the discs out in both back plate layers. 2. Unscrew the bolts in the flue collar and facing plate. 3. Swap the flue collar and facing plate.
-
Page 9: How It Works: Aura 7
Fuel air damper or How it works: Aura 7 secondary air Turn the damper to the right to open the air. Close Open Open BE AWARE Kindling air Kindling air On ash pan -closed On ash pan - The handle gets hot under... - Page 10 A strong chimney draught requires less supply of combustion air. Closed Open Aura 7 Overheating Overheating occurs when you put too much wood in the stove or if the fire has too much air. This can happen, for example, when the gaskets in the stove are not sealed or the ash pan has not been closed properly.
-
Page 11: How To Light Up And Use Your Stove
How to light up and use your stove: When you use the stove for the first time, the surface coating will cure and smoke will come from the stove and it will have a slightly pungent smell, which will disappear after a good airing. We therefore recommend that you open the doors and windows so there is airflow to/from outside. -
Page 12: Overview Of Loose Parts Aura
Aura 7 Overview of loose parts Bottom grate Log retainer Vermiculite Ash pan Glass front door Top steel plate cover Air rosette for kindling air Secondary air damper Lower door for wood compartment Tertiary air beam (tertiary airflow) Flue collar... - Page 13 The panels are insulating and ensure that the stove does not wear out. Vermiculite panels are not covered by the warranty. Vermiculite is a very porous material and must be handled with care. Only original spare parts from Varde Ovne A/S may be used. Smoke guide plate Left side plate...
- Page 14 What can you make a fire with? This Varde stove has been approved and tested for the combustion of wood. Only dry wood may be used with a max. water content of 21% and a size that is suitable for the combustion chamber.
-
Page 15: Maintenance
We recommend the use of VARDE glass cleaner to clean the glass panels; this can be bought from our dealers. Be aware off! If you are using other brands of glass cleaning products then Varde’s, must it not contain potassium, this can give a milky white film on the glass there not can be removed. -
Page 16: Spare Parts
Spare parts list: Log retainer, product no. and EAN number Aura 7 : 101104 /5703505042920 Top Cover, product no. and EAN number Aura 7 : 100701 / 5703505049233 (Steel Ø165 VO logo) Glass, product no. and EAN number Aura 7 : 100998/ 5703505052097 Handle, product no. -
Page 17: How To Correct Faults
How to correct a fault. Smoke entering room • Poor draught in the chimney. • Check that the flue and chimney are not blocked. • Check that the chimney height is correct in accordance with the surroundings. Glass and/or chimney soot: •... -
Page 19: Warranty
Guarantee/Warranty rights Guarantee All VARDE wood-burning stoves are subject to close quality control. We take great pride in delivering uniform quality products every time. However, manufacturing defects can occur every now and then, so we offer a 5-year guarantee. The guarantee on your wood-burning stove does not cover: •...
