- Page 1 Varde Lyon Varde Nice Installation and User Manual Revision 1 Pottemagervej 1, 7100 Vejle, Denmark. www.vardeovne.dk...
-
Page 2: Table Of Contents
Wood-burning stoves from VARDE stand on the stylistic bedrock of Scandinavian design – created with the ambition of unifying quality, functionality and design. With a VARDE stove, you and your family are ensured a warm gathering point and tranquil quality moments for many years into the future. -
Page 3: Facts About Lyon
Technical Data Lyon Combustion chamber: (W x D x H): Height (cm) 31-40 x 25 x 36 cm Width (cm) Smoke outlet Ø15 cm Depth (cm) Installation height top: 97.5 cm Weight (kg) Fitting height rear: 83 cm Output 5-9 kW... -
Page 4: Facts About Nice
Technical Data Nice Combustion chamber: (W x D x H): 31-40 x 25 x 36 cm Height (cm) Width (cm) Smoke outlet Ø15 cm Depth (cm) Installation height top: 108 cm Weight (kg) Installation height rear: 93 cm Output 5-9 kW Nominal output 6,4 kW Distance to non-flammable material:... -
Page 5: Rules And Approvals
Important! Applicable regulations Before you install and use your new Varde The installation must comply with all local stove for the first time, w e recommend regulations, including those that refer to that you first spend a couple of minutes reading national and European standards. -
Page 6: Floor Material And Distances
General advice and instructions are available on the Varde Ovne website. www.vardeovne.dk Floor material: If the stove is to stand on a flammable floor, then the floor area on which it stands must naturally be covered by a non-combustible material, e.g. a steel sheet, glass sheet, tiles or artificial slate sheet. -
Page 7: Installation Distances
From the sides: 60 cm Rear: 230 cm Distance to furniture: 100 cm NB: Note that B (from chimney to the wall) is a recommendation. There may be different local/national rules. Lyon and Nice 23 cm 60 cm 22,5 cm 100 cm... -
Page 8: Chimney
If required, refer to your chimney inspector, who will help you to set the correct height. Condensation drain in the flue collar Your stove is fitted with a cast iron flue collar from Varde Ovne. The flue collar is designed for a flue pipe (chimney) with an inner diameter of 150 mm. -
Page 9: Chimney Assembly
Connecting the flue Connect the stove using the top outlet. Connect the stove using the rear outlet. 1. Cut the discs out in both back plate layers. 2. Unscrew the bolts in the flue collar and facing plate. 3. Swap the flue collar and facing plate. -
Page 10: Operation
Fuel air damper or secondary air How it works Turn the damper to the right to open for air. Closed Open Shaker grate closed Shaker grate open Kindling air Kindling air On ash pan- On ash pan- Open Closed Remember to close the kindling air again once the fire is well established... -
Page 11: Operation
Tertiary airflow is a constant supply of air that en- sures the stove burns more cleanly and, among other things, reduces the burning material’s content of tar and soot particles to the absolute minimum sizes. With optimal burning you will see that Maximum height of the glass and the combustion chamber firewood... -
Page 12: How To Light Up And Use Your Wood-Burning Stove
How to light up and use your stove: When you use the stove for the first time, the surface coating will cure and smoke will come from the stove and it will have a slightly pungent smell, which will disappear after a good airing. We therefore recommend that you open the doors and windows so there is airflow to/from outside. -
Page 13: Overview Of Loose Parts
Lyon and Nice Overview of loose parts Shaker grate Log retainer Vermiculite Ash pan Cast-iron door Top plate Air rosette for kindling air Secondary air damper Throttle to shake grate Tertiary air beam Flue collar Magnet for base cover Outer side glass... -
Page 14: Vermiculite
The panels are insulating and ensure that the stove does not wear out. Vermiculite panels are not covered by the warranty. Vermiculite is a very porous material and must be handled with care. Only original spare parts from Varde Ovne A/S may be used. 1. Smoke guide plate 2. Top rear plate 3. -
Page 15: Choice Of Wood And Nominal Output
What can you make a fire with? This Varde stove has been approved and tested for the combustion of wood. Only dry wood may be used with a max. water content of 21% and a size that is suitable for the combustion chamber. -
Page 16: Maintenance
Remember to lubricate the door hinges as required. Glass We recommend the use of VARDE glass cleaner to clean the pane; this can be bought from our dealers. The ash pan must be emptied regularly, and the ash can be disposed of along with your domestic waste. -
Page 17: Spare Parts
Spare parts Should you require spare parts for your wood-burning stove, below is an overview of the spare parts. Spare parts overview for Lyon and Nice Log retainer, product no. and barcode 100483 /5703505042920 Top cover made from cast iron, product no. and barcode 100266 / 5703505033546 Glass, product no. -
Page 18: How To Correct Faults And Recycling
How to correct a fault. Smoke entering room • Poor draught in the chimney. • Check that the flue and chimney are not blocked. • Check that the chimney height is correct in accordance with the surroundings. Glass and/or chimney soot: •... -

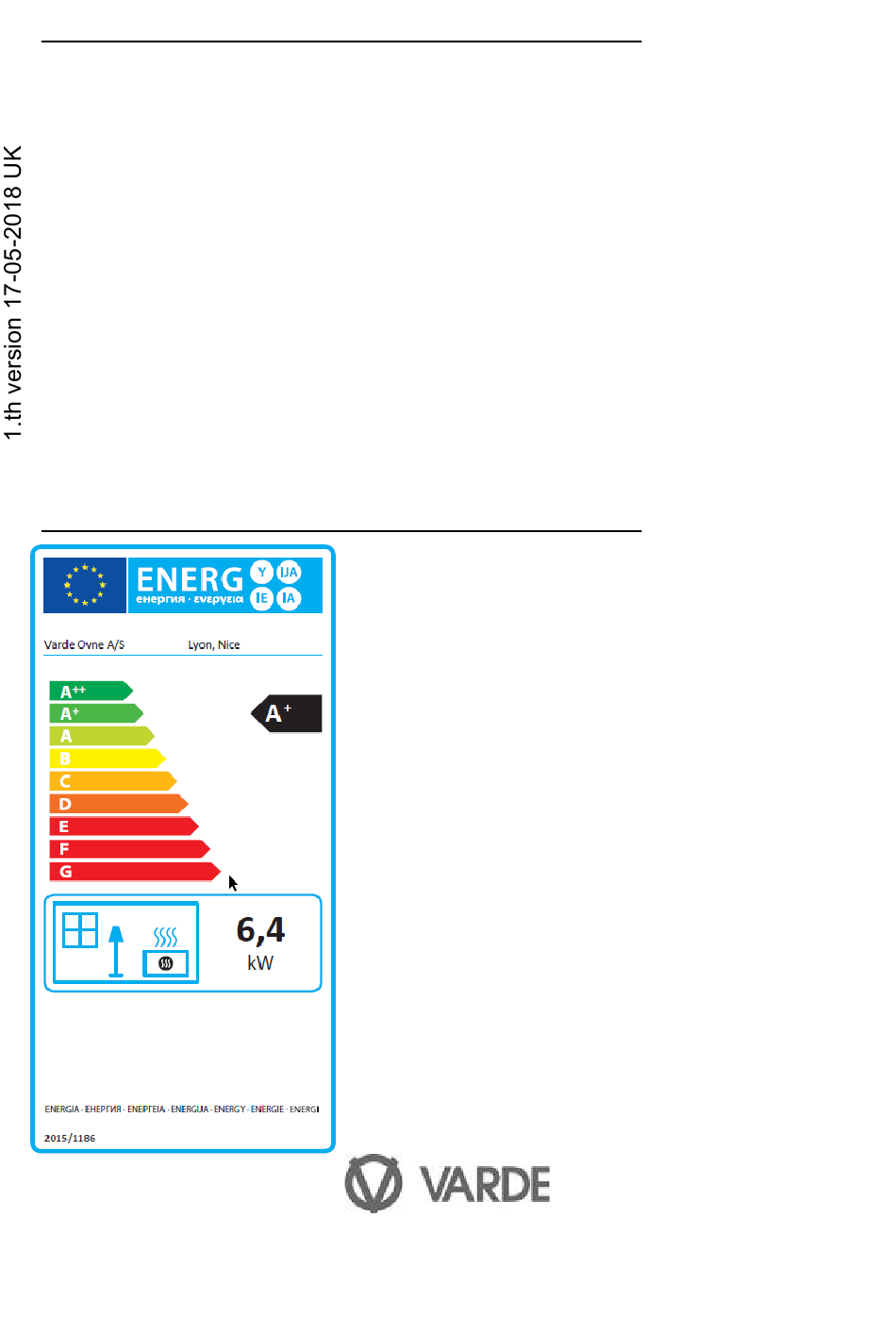

Page 20: Warranty
Warranty All Varde stoves undergo substantial quality control, and we take pride in supplying the same high quality at all times. We do, however, offer a 5-year warranty for any manufacturing defects, should they occur. The warranty does not cover: ...
