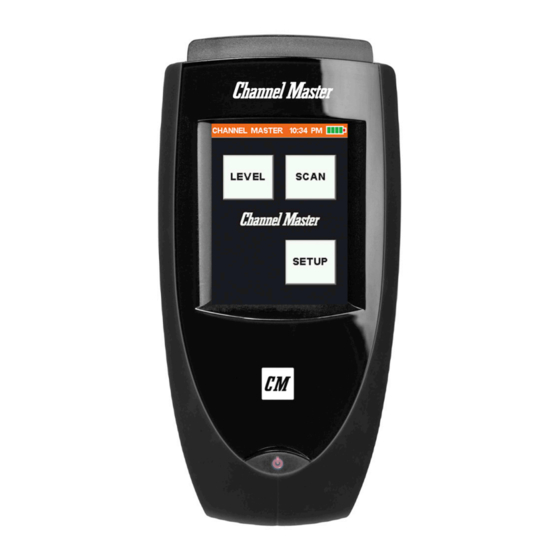

Channel Master CM-1005 Quick Start Manual

SETUP
SETTINGS: Configure device settings
including Date/Time, Speaker Level,
auto power off and automatic gain
control.
LIMITS: Configure limits for signal
levels. (Pass Level Limit is default set
to -60 dBm. Note: most TV tuners
will require a minimum power of ≥
-65dBm to Scan and identify as a valid
Channel)
FILE EXPLORER: Edit and delete saved configurations
including user settings, touch screen calibration, compass
calibration, meter calibration and OFF-AIR ATSC PLAN.
Trash Can symbol will allow you to delete a saved
configuration and the notepad/pencil symbol
you to edit the saved OFF-AIR ATSC PLAN.
CALIBRATION: Configure touch screen and compass
calibrations. (Meter calibration is set at the factory and is
NOT configurable.)
FIRMWARE: Displays the current firmware version and
allows for new firmware to be updated in the future (no new
updates are planned).

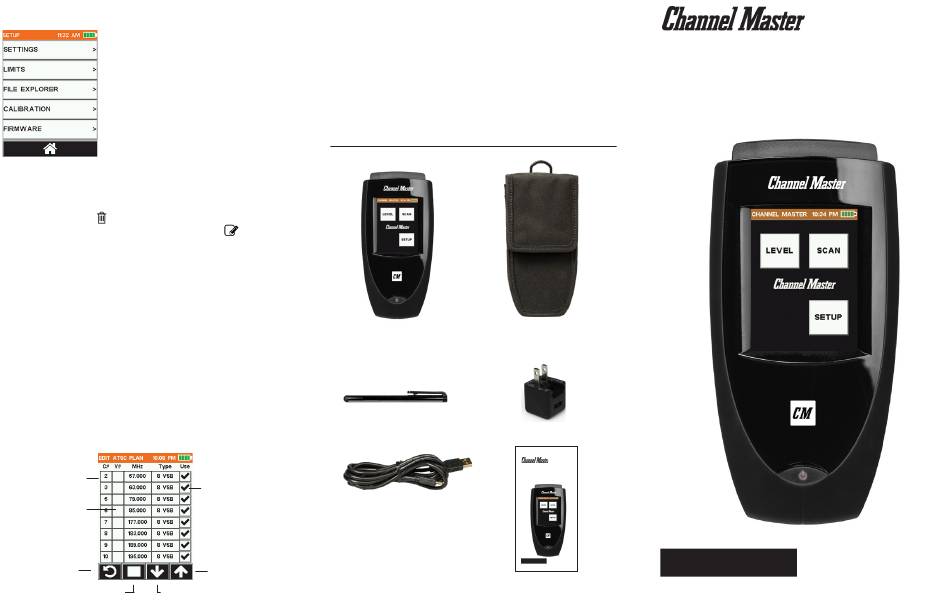

EDIT ATSC PLAN SCREEN
Navigate to this configuration screen by pressing
Setup>File Explorer>OFF-AIR ATSC PLAN. In this screen
you can assign a Virtual Channel number and select or hide
specific channels for use in both LEVEL and SCAN screens.
Real Channel Number
Assign Virtual Channel
Number (Optional)
Return to previous
Screen
Down
Select/Unselect
