- Page 1 Argos3D-P220 Hardware User Manual Version 5...
- Page 2 AUSTRIA office@bluetechnix.com www.bluetechnix.com Argos3D-P220 – Hardware User Manual Subject to change without notice. Errors excepted. This document is protected by copyright. All rights reserved. No part of this document may be reproduced or transmitted for any purpose in any form or by any means, electronically or mechanically, without expressly written permission by Bluetechnix GmbH.
-
Page 3: Table Of Contents
1.2.1 CE Declaration ........................6 1.2.2 Eye Safety .......................... 7 Safety instructions ........................7 Electrical connection ......................... 7 Argos3D-P220 Components ......................8 Mechanical Description ........................9 Dimensions ..........................9 3.1.1 In-wall mounting with cover panel ..................9 3.1.2 Top view ..........................9 3.1.3... - Page 4 Sensor Location ........................19 Support ............................20 7.1.1 General Support ....................... 20 Related Products ........................20 Product History ..........................21 Version Information ......................... 21 8.1.1 Argos3D-P220 ......................... 21 Anomalies ..........................21 Document Revision History ....................21 © BECOM BLUETECHNIX 2018...
- Page 5 BECOM BLUETECHNIX takes no liability for any damages and errors causing of the usage of this board. The user of this board is responsible by himself for the functionality of his application. He is allowed to use the board only if he has the qualification.
-
Page 6: General Information
Version 5 General Information This guide applies to the Argos3D-P220 camera platform from BECOM BLUETECHNIX GmbH. Follow this guide chapter by chapter to set up and understand your product. If a section of this document only applies to certain camera parts, this is indicated at the beginning of the respective section. -
Page 7: Eye Safety
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 1.2.2 Eye Safety Illumination: LEDs Wavelength 850nm (typ) In accordance with EN62471:2008 resp. Output power IEC62471:2006 Safety instructions Important This manual is part of the device and contains information and illustrations about the correct handling of the device and must be read before installation or use. -
Page 8: Argos3D-P220 Components

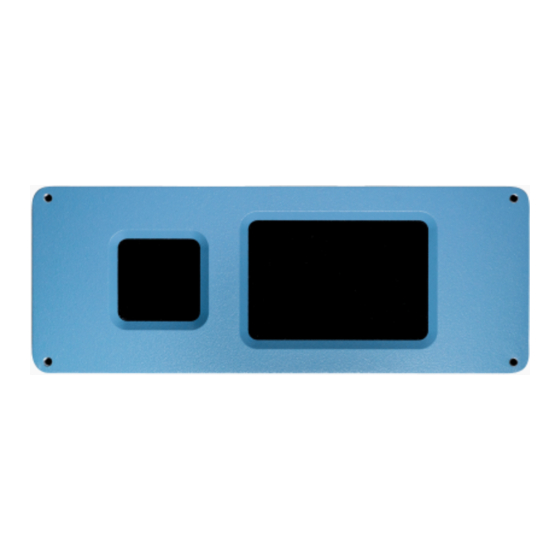

Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Argos3D-P220 Components Figure 2-1 Argos3D-P220 components a. Case b. Cover plate (can be removed by unscrewing) c. Viewing window for 3D sensor d. Viewing window for illumination module e. -
Page 9: Mechanical Description
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Mechanical Description Dimensions All dimensions are in mm, tolerance +/-0,2mm. 3.1.1 In-wall mounting with cover panel Please use M4 screws for in-wall mounting using the cover panel. Figure 3-1: Dimensions for in-wall mounting with cover panel 3.1.2... -
Page 10: Front View
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 3.1.3 Front view Front mounting hole size: M3 Figure 3-3: Front view without cover panel 3.1.4 Back view Back view mounting hole size: M3 Figure 3-4: Back view without cover panel ©... -
Page 11: Side View
The user is responsible to take care for an appropriate cooling. To prevent the Argos3D-P220 from overheating, it is strongly recommended, to keep away nearby objects. This guarantees a constant airflow for proper cooling. This bounding box may be violated, when other cooling techniques are provided. -
Page 12: Interface Description
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Interface Description Signal naming Signal names are usually written in capital letters. They are noted in positive logic (positive asserted). If the signal is negative asserted an “n” will be added as prefix to the signal name. -
Page 13: Power Supply
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Signal Type Description ETH-C_P Ethernet Lane C ETH-D_N Ethernet Lane D ETH-D_P Ethernet Lane D nTRIGGER IO (3V3 TTL) Trigger Input ETH-A_N Ethernet Lane A ETH-A_P Ethernet Lane A... -
Page 14: Mating Parts
Figure 4-2: Adapter for Argos3D-P220 4.3.3 Interconnection Adapter For interconnection there is an adapter available with standard Ethernet RJ45 interface and 2 pole headers for IO and power supply. Figure 4-3: Interconnection adapter for Argos3D-P220 © BECOM BLUETECHNIX 2018 Page 14 | 21... -
Page 15: Software
Getting Started Software Development Example To facilitate the integration of the Argos module in your own application a getting started example will be available on our download site. Please refer to our support site support.bluetechnix.com. © BECOM BLUETECHNIX 2018 Page 15 | 21... -
Page 16: Appendix
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Appendix Operating Conditions Symbol Parameter Typical Unit Input supply voltage Average Input current 0,66 Operating Temperature °C Storage Temperature +125 °C FITP Frame-rate Integration Time Product Table 6-1: Operating Conditions 1) Note Valid for a frame-rate of 30fps and an integration time of 3500µs. -
Page 17: Temperature At The Case
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 6.1.2 Temperature at the case The following figure shows the expected case temperature @ 25°C ambient temperature depending on the frame-rate integration time product (FITP). The FITP has been calculated as follow: [ ����... -
Page 18: Performance
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Symbol Parameter Typical Unit Δλ Spectral Bandwidth Radiant intensity W/sr Horizontal Field of View Vertical Field of View Performance 6.3.1 Environmental Conditions All the following measurements have been acquired at the following constant environmental conditions. -
Page 19: Accuracy
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 6.3.3 Accuracy The following figures has been determined by a frame-rate of 30fps and an integration time of 3,5ms with a reflectivity of 90%. Accuracy 1000 1500 2000... -
Page 20: Support
Hardware User Manual - Argos3D-P220 Last change: 2 August 2018 Version 5 Support 7.1.1 General Support General support for products can be found at BECOM BLUETECHNIX’ support site Support Link https://support.bluetechnix.at Related Products • TIM-UP-19kS3-ETH • LIM-U-LED-850-6 © BECOM BLUETECHNIX 2018... -
Page 21: Product History
X-Grade December 2016 V1.5.0 X-Grade January 2018 V1.6.0 Series July 2018 Table 8-1: Overview Argos3D-P220 product changes Note Please refer to our support site for additional information about product changes. Anomalies Applies to Date Description V1.0.0 No anomalies reported yet.
