DOM Quinn 674 Manual

Dream On Me Inc.
1532 S WASHINGTON AVE
PISCATAWAY TWP NJ 08854
Email: info@dreamonme.com
www.dreamonme.com
STEP 2
STEP 1
Assemble latch (i & j) to the headboard (A & B) Connect rail (C) and stabilizer bar (D)to the headboard ( A & B)
by using 5/8" screw (k).Then assemble plastic by screws (a) and nuts (b),wood dowel (d), washer (g), washer (h).
block(n) horizontal to the headboard (A&B) by using DO NOT fully tighten the bolts.
3/4"screw (m).Tighten screws using phillips head
screwdriver.Make sure that the latch on the bottom
of each headboard (A&B) are locked.
A
B
B
B
B
STEP 5
STEP 4
Assemble castors (e&f ) to the leg bottoms on the leg
Connect rail (C) to the headboard (A & B) by screws
on headboard (A&B).2 castors (e) with brake are in
(a), nuts (b), washer (g) and washer (h).
the front.THEN add the mattress(F).
THEN FULLY tighten all the bolts.
B
C
C
A
Follow bellow to fold the crib:
1.take out the mattress (F)
2.take out the mattress board (E)
3.unlock the latch on the headboard
4.fold the crib
①
2
1
②
/
STYLE NO NUMÉRO DE MODÈLE:674

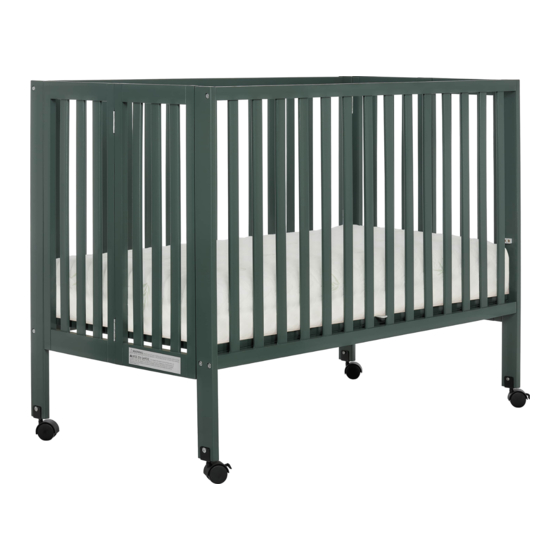

PORTABLE CRIB / CÈCHE PORTABLE
MFG DATE/ Date de Fabrication:May 2020
MFG CODE BLY
MADE IN CHINA / FAIT DANS LA CHINE
STEP 3
Slot in the metal pin into the notch of left and right
headboard side corner post.then move up and down
B
C
A
D
D
A
STEP6
Select the desire level,and use both hand to lift up the mattress
base,then adjust the level to your require height of the 2 level.
Slide in the bolt underneath the mattress board (E) to keep the
mattress support fixed.
B
A
PHILLIPS HEAD SCREWDRIVER
PHILLIPS HEAD SCREWDRIVER
AND WRENCH REQUIRED FOR
ASSEMBLY----NOT INCLUDED
CAUTION: ANY MATTRESS USED IN THIS CRIB MUST BE AT LEAST 27 1/4 IN. (69CM) BY 51 5/8 IN. (131CM) WITH
A THICKNESS NOT EXCEEDING 6 IN. (15CM) AND THE MINIMUM MATTRESS THICKNESS OF 4 IN.(10CM)
USE A CRIB MATTRESS THAT IS NO THICKER THAN 15 CM THICK AND IS OF SUCH SIZE THAT, WHAT IT IS PUSHED
FIRMLY AGAINST ANY SIDE OF THE CRIB, IT DOES NOT LEAVE A GAP OR MORE THAN 3CM BETWEEN THEN
MATTRESS AND ANY PART OF THE SIDES OF THE CRIB.
o highest level.
B
C
E
A
B
D
C
E
DO NOT USE THIS CRIB IF YOU CANNOT EXACTLY FOLLOW THE ACCOMPANYING INSTRUCTIONS.
INFANTS CAN SUFFOCATE ON SOFT BEDDING. NEVER ADD A PILLOW OR COMFORTER. NEVER PLACE ADDITIONAL PADDING
UNDER A INFANT.
FAILURE TO FOLLOW THESE WARNINGS AND THE ASSEMBLY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH.
READ ALL INSTRUCTIONS BEFORE ASSEMBLING CRIB. KEEP INSTRUCTIONS FOR FUTURE USE
TO REDUCE THE RISK OF SIDS, PEDIATRICIANS RECOMMEND HEALTHY INFANTS TO BE PLACED ON THEIR BACKS TO SLEEP,
UNLESS OTHERWISE ADVISED BY YOUR PHYSICIAN.
STRANGULATION HAZARD - STRINGS CAN CAUSE STRANGULATION! DO NOT PLACE ITEMS WITH A STRING AROUND A CHILD'S
NECK,SUCH AS HOOD STRINGS OR PACIFIER CORDS. DO NOT SUSPEND STRINGS OVER A CRIB OR ATTACH STRINGS TO TOYS.
STRANGULATION HAZARD - TO HELP PREVENT STRANGULATION TIGHTEN ALL FASTENERS. A CHILD CAN TRAP PARTS OF
THE BODY OR CLOTHING ON LOOSE FASTENERS
STRANGULATION HAZARD - DO NOT PLACE CRIB NEAR WINDOW WHERE CORDS FROM BLINDS OR DRAPES MAY STRANGLE A CHILD
FALL HAZARD - WHEN CHILD IS ABLE TO PULL TO A STANDING POSITION, SET MATTRESS TO LOWEST POSITION AND REMOVE
WRENCH
BUMPER PADS, LARGE TOYS AND OTHER OBJECTS THAT COULD SERVE AS STEPS FOR CLIMBING OUT
FALL HAZARD - WHEN A CHILD IS ABLE TO CLIMB OUT OR REACHES THE HEIGHT OF 35IN.(89CM), THE CRIB SHALL NO LONGER BE USED.
FALL HAZARD - (FOR FOLDING SIDE CRIBS) AFTER RAISING SIDE, MAKE SURE LATCHES ARE SECURE.
FALL HAZARD - (FOR FOLDING SIDE CRIBS) DO NOT LEAVE CHILD IN CRIB WITH SIDE LOWERED. BE SURE SIDE IS IN RAISED
AND LOCKED POSITION WHENEVER CHILD IS IN CRIB.
CHECK THIS PRODUCT FOR DAMAGED HARDWARE, LOOSE JOINTS, LOOSE BOLTS OR OTHER FASTENERS,
MISSING PARTS OR SHARP EDGES BEFORE AND AFTER ASSEMBLY AND FREQUENTLY DURING USE.
SECURELY TIGHTEN LOOSE BOLTS AND OTHER FASTENERS.
DO NOT USE CRIB IF ANY PARTS ARE MISSING, DAMAGED OR BROKEN. CONTACT DREAM ON ME INC., FOR REPLACEMENT
PARTS AND INSTRUCTIONAL LITERATURE IF NEEDED. DO NOT SUBSTITUTE PARTS.
FOLLOW WARNINGS ON ALL PRODUCTS IN A CRIB.
DO NOT USE A WATER MATTRESS WITH THIS CRIB.
IF REFINISHING, USE A NON-TOXIC FINISH SPECIFIED FOR CHILDREN'S PRODUCTS.
NEVER USE PLASTIC SHIPPING BAGS OR OTHER PLASTIC FILM AS MATTRESS COVERS BECAUSE THEY CAN CAUSE SUFFOCATION.
INFANTS CAN SUFFOCATE IN GAPS BETWEEN CRIB SIDES AND A MATTRESS THAT IS TOO SMALL.
REPLACE TEETHING RAIL IF DAMAGED, CRACKED OR LOOSE
D:
Stabilizer bar (1PC)
A:
Left head board (1PC)
C: Rail (2Pcs)
B:
Right head board (1PC)
F:
E: Mattress (1PC)
Mattress board (1PC)
WARNING !
a: b:
2-1/8" Allen head bolt (10 pcs) Barrel nuts (10 pcs)
c:
2" Allen wrench (1 pc) d: 1-1/2" Wood dowel (2 pcs)
e:
Castors (2 pcs) f:
Castors (2 pcs)
k: 5/8" screw m: 3/4"screw
i: Latch 1 (2 pcs) j: Latch 2 (2 pcs)
(6 pcs) (4 pcs)
WRENCH AND
PHILLIPS--HEAD SCREWDRIVER
REQUIRED FOR ASSEMBLY
n: Plastic block (2 pcs)
----NOT INCLUDE
