RynoWorx RY10MA-V3 Operator's Manual

10 gallon direct fire melter applicator - torch model
Hide thumbs Also See for RY10MA-V3:

Advertisement

Quick Links

Download this manual
Operator's Manual
Model: RY10MA-V3 Base Model
MPN: RA-MLT-0015
10 Gallon Direct Fire Melter Applicator - Torch Model

Advertisement

loading
Need help?

Need help?

Do you have a question about the RY10MA-V3 and is the answer not in the manual?

Questions and answers

Related Manuals for RynoWorx RY10MA-V3

Summary of Contents for RynoWorx RY10MA-V3

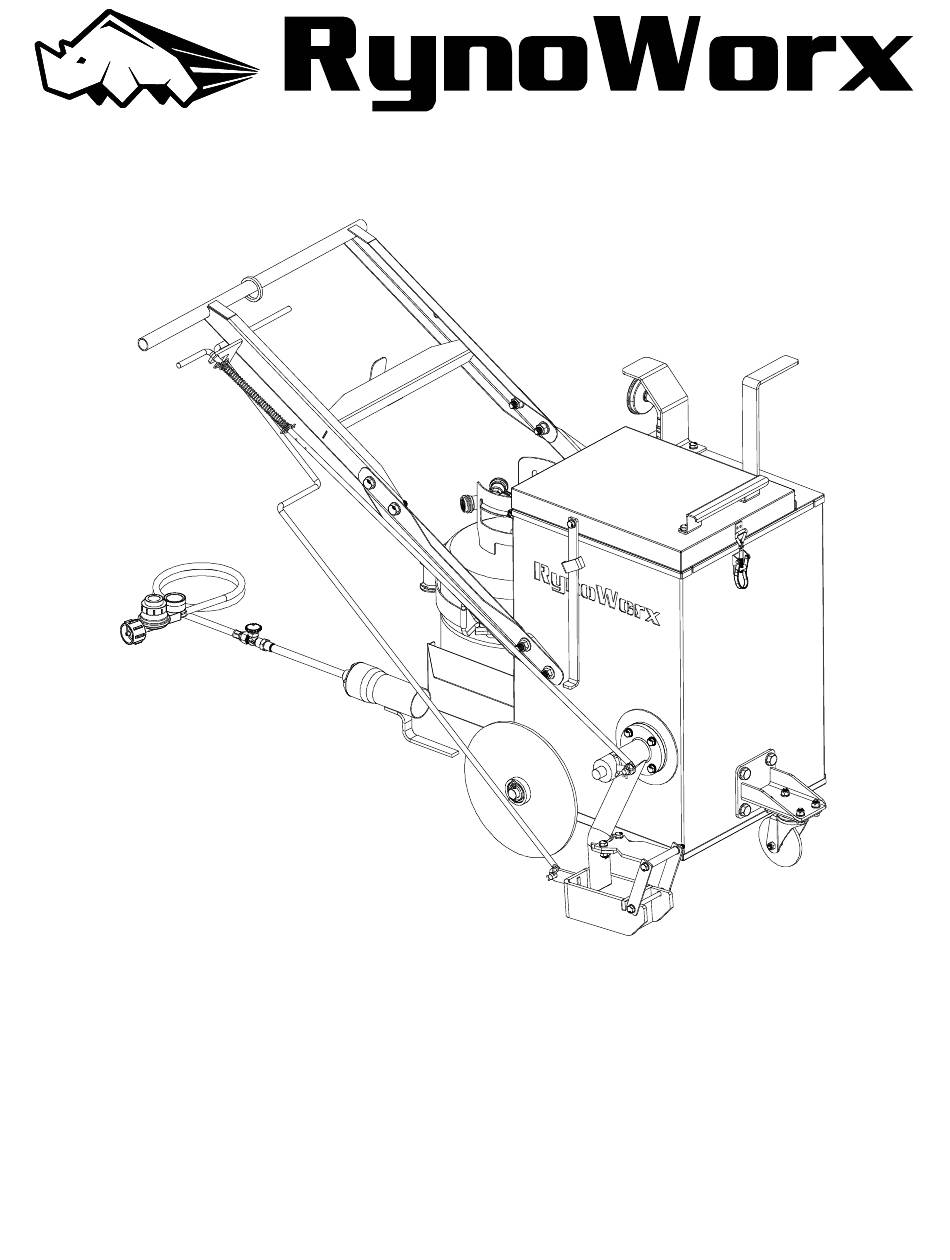

  • Page 1 Operator's Manual Model: RY10MA-V3 Base Model MPN: RA-MLT-0015 10 Gallon Direct Fire Melter Applicator - Torch Model...
  • Page 2 Facebook Messenger support@rynoworx.com WhatsApp Messaging 519-404-9775 Website Chat rynoworx.com/support Email support@rynoworx.com Phone 855-382-9611...
  • Page 3 ⚠ Before servicing, make sure the unit is fully cooled and the liquid propane cylinder is disconnected. ⚠ Only genuine RynoWorx replacement parts should be used for any replacements or repairs. Do not attempt to modify or alter this product in any way.
  • Page 4 Qty Description 1 MA10‐Torch‐V3 Valve Control Arm Complete Assembly RA‐BAS‐0076 1 MA10‐Torch‐V3 Shoe Control Arm Complete Assembly RA‐BAS‐0077 1 MA10‐Torch‐V3 Agitation Handle RC‐FAB‐0176 4 RC‐GCM‐0067 1 Thermometer ‐ 16.5" Probe ‐ Shock Proof Liquid Filled 1 Propane Tank Ratchet Strap RC‐STR‐0001 1 Thermometer Guard ‐ MA‐V4 RC‐FAB‐0147 1 Lid Handle ‐ MA‐V4 RC‐FAB‐0151 1 Agitation Sweep Bar ‐ MA‐V4 RC‐FAB‐0143 9 RA‐GCM‐0015 1 MA Torch Complete Assembly 1 MA10‐Torch‐V3 Handle Bar Assembly 10 RA‐BAS‐0078 1 MA10‐Torch‐V3 Tank Shelf 11 RC‐FAB‐0171 1 Tank Spacer ‐ MA‐V4 12 RC‐FAB‐0133 1 Melter Lid Support Slider 13 RC‐FAB‐0101...
  • Page 5 • Common Replacement Parts RA-WHL-0026 - Rear Wheel with Bearings RC-BRG-0001 - Wheel Bearing for Melter Applicator Rear Wheel RA-WHL-0005 - Front Caster with Wheel RC-STK-0001 - Flint Striker RC-WHL-0014 - 4 Bolt Caster Swivel RC-GCM-0016 - Torch for Melter Applicator with Valve RC-GCM-0067 - Thermometer - Shock Proof Glycerin Filled RC-GCM-0068 - Regulator and Hose with Pressure Gauge...

  • Page 6: Required Tools

    Introduction Forward Thank you very much for purchasing RynoWorx crack maintenance equipment. We pride ourselves in being different from other equipment manufacturers with a relentless focus on innovation, simplicity, and quality. RY Series Melter / Applicators are designed to effectively melt and apply direct-fire type crack sealant to joints and cracks found in hard aggregate surfaces.
  • Page 7 1 Valve and Shoe Sub Asy RA-BAS-0071 1 Agitation Sweep Bar - MA-V4 RC-FAB-0143 5 RA-WHL-0026 2 Rear Wheel Assembly with Bearings - Melter Applicator - V2 P/N: Model Rev: RA-MLT-0015 RY10MA-V3 Base Model Description: Parts Packed Inside the Kettle...
  • Page 8 9 RC-GCM-0068 1 Regulator and Hose - 0 - 30 Psi with Pressure Gauge (3 m) 1 Flint Striker 10 RC-STK-0001 1 Propane Tank Ratchet Strap 11 RC-STR-0001 1 Tank Spacer - MA-V4 12 RC-FAB-0133 Fastener kit (RK-FAS-0086) also included. P/N: Model Rev: RA-MLT-0015 RY10MA-V3 Base Model Description: Parts Packed Inside the component box...
  • Page 9 • Assembly Instructions 1. Tank Shelf RK-FAS-0066 13 mm Wrench 2. Tank Spacer RK-FAS-0067 13 mm Wrench...

  • Page 10: Rear Wheels

    3. Rear Wheels Assemble wheels on axle, the RK-FAS-0080 side with the bearing retainer ring should be facing out. Insert pin 4. Caster RK-FAS-0065 19 mm or ¾” Wrench...
  • Page 11 5. Valve and Shoe RK-FAS-0069 13 mm Wrench Valve should be aligned so it is perpendicular to the ground before the bolts are tightened ⚠ The lock washers provided for the valve are shipped in pairs. Use 1 pair for each bolt with the wedged surfaces on the washers mated together (same orientation that the washers come paired in).
  • Page 12 6. Handle Bars Bend the handle bars over the mounting studs one side at a time RK-FAS-0083 19 mm or ¾” Wrench...
  • Page 13 7. Thermometer Thread the thermometer into the kettle 8. Thermometer Guard RK-FAS-0071 13 mm Wrench...
  • Page 14 9. Agitation...
  • Page 15 Remove the nuts threaded on the studs and install the agitation sweep bar as shown, put it over the left stud first and then the right RK-FAS-0071 13 mm Wrench...
  • Page 16 2 x RC-NUT-0023 Thread the provided nuts back on the stud and tighten just past flush with the end 19 mm or ¾” Wrench...

  • Page 17: Lid Handle

    10. Lid Handle RK-FAS-0070 13 mm Wrench...
  • Page 18 11. Shoe Control Arm Insert the shoe control handle into the lower guide Insert the lower end of the shoe control rod into the shoe tab and insert the retaining pin.
  • Page 19 12. Valve Control Arm Insert the valve control handle into the upper guide and remove the top cotter pin Turn the valve connector rod clockwise until it is tight and then turn it approximately 1 rotation counter- clockwise until its in the position shown on the left Insert the lower end of the control rod into the valve...
  • Page 20 Set Up – Adjust Spring Tension The spring tension on the valve control arm can be adjusted by setting the pin position shown below which will increase or decrease the spring tension.
  • Page 21 Set Up – Installing the Torch Connect the torch to the 30 psi adjustable regulator. Left-hand thread 19 mm wrench Insert the torch into the mounting bracket...
  • Page 22 Set Up – Propane tank Place your propane tank on the shelf and secure with the ratchet strap. ⚠ Only tighten the ratchet strap so that it is snug, do not apply excess force on the brackets Connect the regulator to the propane tank...
  • Page 23 • Operations Guide Before beginning please check the following: 1. You have read and understand all warnings on page 2. 2. You are using a new and full propane cylinder (use of a used cylinder can lead to reduced performance or equipment failure).
  • Page 24 • Operation Guide Part 1 – How to Load and Light your Melter 1. Ensure your regulator is off by rotating regulator knob fully counter-clockwise (rotate left). 2. Slowly pressurize the regulator by rotating the valve located on the propane cylinder counter-clockwise all the way (rotate left).
  • Page 25 • Operation Guide Part 2 – Agitating and Monitoring Temperature 1. Never leave melter unattended when the torch is lit. If flame goes out, promptly turn off the flow of gas; double check that the melter is free and clear of any gas odors before attempting to re-ignite the torch. 2.
  • Page 26 • Maintenance Guide Periodic Maintenance This melter / applicator requires periodic maintenance before each use and at set intervals in order to ensure it is performing safely and optimally. The table below describes checks and maintenance which are recommended. Description Before Each Every 25 Every 75...
  • Page 27 • Troubleshooting Guide Below we have provided a common problems and solutions table. Be sure to consult this table should you experience any technical problems. Description of Problem Possible Causes Known Solutions The torch will not ignite or 1) The fuel level could be too low 1) Check and refill your fuel tank the torch will not stay lit 2) The propane cylinder valve...
