Kogan KAKBBT24PTA User Manual

Bluetooth & 2.4ghz dual mode portable keyboard
Hide thumbs

Advertisement

Quick Links

Download this manual
BLUETOOTH & 2.4GHZ DUAL MODE
PORTABLE KEYBOARD
KAKBBT24PTA

Advertisement

loading
Need help?

Need help?

Do you have a question about the KAKBBT24PTA and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kogan KAKBBT24PTA

Summary of Contents for Kogan KAKBBT24PTA

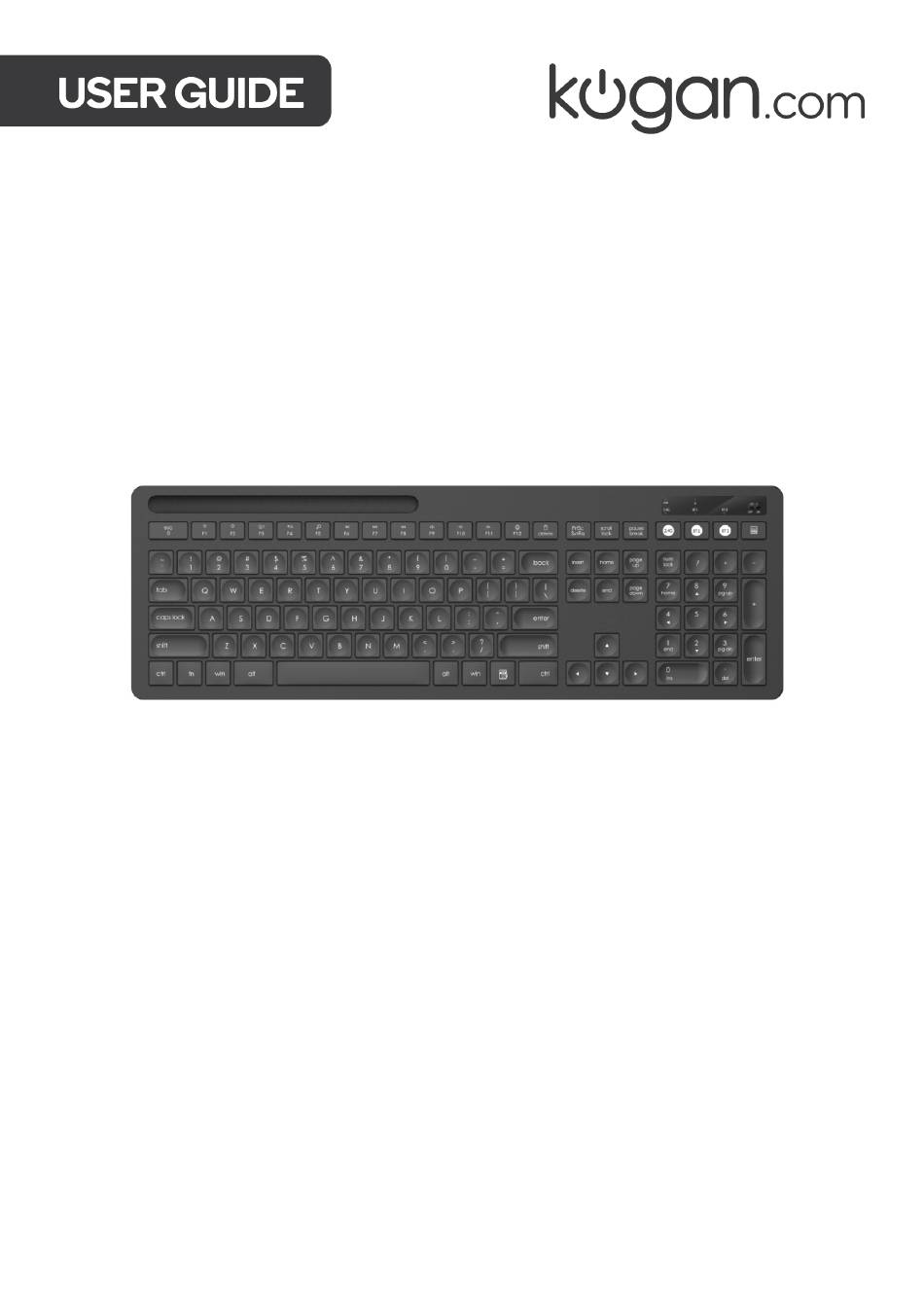

  • Page 1 BLUETOOTH & 2.4GHZ DUAL MODE PORTABLE KEYBOARD KAKBBT24PTA...
  • Page 3 COMPONENTS Wireless keyboard USB receiver AAA alkaline Stand User guide (inside keyboard) battery (x2)

  • Page 4: Installation

    INSTALLATION Step 1: • Open the battery compartments on the keyboard. • Insert x2 AAA batteries paying attention to orientation of the polarity symbols ( + , - ). Step 2: Turn on the power switch.
  • Page 5 2.4G WIRELESS CONNECTION • Remove the USB receiver from the battery compartment. • Plug the USB receiver into a USB port on your computer. The keyboards default factory setting is 2.4G wireless mode (The 2.4G keyboard indicator lights up in white). When the connection is successful, the indicator will go turn off. Note: It may take a few minutes for the keyboard to be usable as required drivers may automatically install to facilitate usage.

  • Page 6: Bluetooth Connection

    BLUETOOTH CONNECTION Windows: Press and hold the BT1 button on the keyboard for 3-5 seconds until the white light begins to flash rapidly. Ensure that computer supports Bluetooth and is turn on. select Start > Settings > Devices > Bluetooth & other devices > Add Bluetooth or other device >...
  • Page 7 MacOS: Press and hold the BT2 button on the keyboard for 3-5 seconds until the white light begins to flash rapidly. Ensure that computer supports Bluetooth and is turn on. Open “System Preferences” Search for “BT 3.0 Keyboard” or “BT5.0 KB” and click to pair your keyboard. The keyboard is now connected and can be used normally.
  • Page 8 iOS: Press and hold the BT1 button on the keyboard for 3-5 seconds until the white light begins to flash rapidly. Ensure that iOS device supports Bluetooth and is turn on. On you iOS device open “Settings”. Select “General>Bluetooth”. Search for “BT 3.0 Keyboard” or “BT5.0 KB” and click to pair your keyboard. The keyboard is now connected and can be used normally.

  • Page 9: Operation

    OPERATION This keyboard features 3 channels. (2.4G, BT1 & BT2) allowing it to be paired to up 3 different devices simultaneously. Once all your devices are connected you can easily switch between them: Press the corresponding channel button for 1 second. The indicator will illuminate for 3 seconds and then turn off.
  • Page 10 Quick-function Buttons Function lock Increase Reduce switch F1- F12 and Mission control brightness brightness multimedia Return Search Previous track Play/Pause Next track Mute Volume up Volume down Sleep Input method switch (only available in Windows) Before using the quick-function buttons ensure you have switched the keyboard to the correct operating system otherwise they will not operate correctly.

  • Page 11: Specifications

    SPECIFICATIONS Wireless data transmission 2Mbps Frequency 2403MHZ- 2480MHZ Working voltage Size 435x143x26.41mm Weight 497.0 ± 10g • 2.4G • Bluetooth 3.0 System Support XP Connection System Support Windows 7/8/10 Mac10.14 • Bluetooth 5.0 System Support Windows 8/10 Mac10.14 2.4G Wireless Connection Working current 2.0 ±...
  • Page 12 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
