Eldat Easywave Neo STH01 Manual

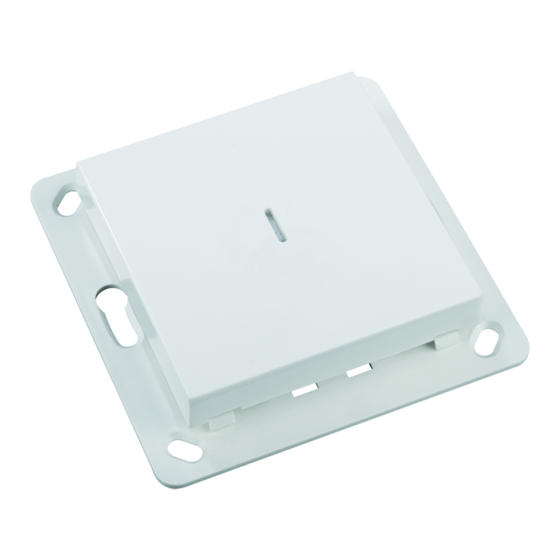

STH01 Temperature humidity sensor Format 55
EN
Model
transmission
LED
STH01EN5001A01
Technical details
Frequency: 868.30 MHz
Radiated power: 0.41 mW
Modulation: FSK
Coding: Easywave neo
Range:
under free field
conditions approx. 150 m
in the building approx. 30 m
Power supply: 2x 3 V-battery, CR2032
Current consumption: max. 20 mA
Standby current: approx. 1.1 µA
Measuring range: 1-99% rF
Accuracy: ±5% (at 30% - 70% rF)
Measuring range
temperature: 0 °C bis +60 °C ±1 °C
Recording the every 10 min or at
measured values: button operation
Operating temperature: -20 °C to +60 °C
Dimensions: Format 55
Cover (L/W/H) 55/55/9 mm
Plate (L/W/H) 71/71/1.5 mm
Weight: 34 g
Scope of delivery
Transmission module, 2 batteries CR2032,
mounting plate, attachment set,
operating instructions
A
figure 1
Intended use
The radio sensor may only be used to measure
the ambient temperature and humidity to operate
smart home server.
The manufacturer shall not be liable for any da-
mage caused by improper or non-intended use!
Safety instructions
Please read the operating instructions
carefully before using the device!
Also read the operating instructions for the de-
vices to be controlled!
Do not modify the devices!
Have faulty hand transmitters checked by the
manufacturer!
Keep the batteries away from children!
Function
The temperature humidity sensor STH01 mea-
sures the temperature and relative humidity cy-
clically and sends these values to a compatible
ELDAT Smarthome-Server APC01.
After inserting the battery, the sensor is immedia-
tely ready for operation and the current measured
values are transmitted via radio telegram.
After the last transmission, the current values are
automatically transmitted every 10 minutes.
The current values can be transmitted manually
by pressing the front area of the button.
During each transmission, the transmission LED
lights up briefly.
The STH01 fits into the most switch frames with
the dimensions of 55x55 mm.
G
B2
PTx

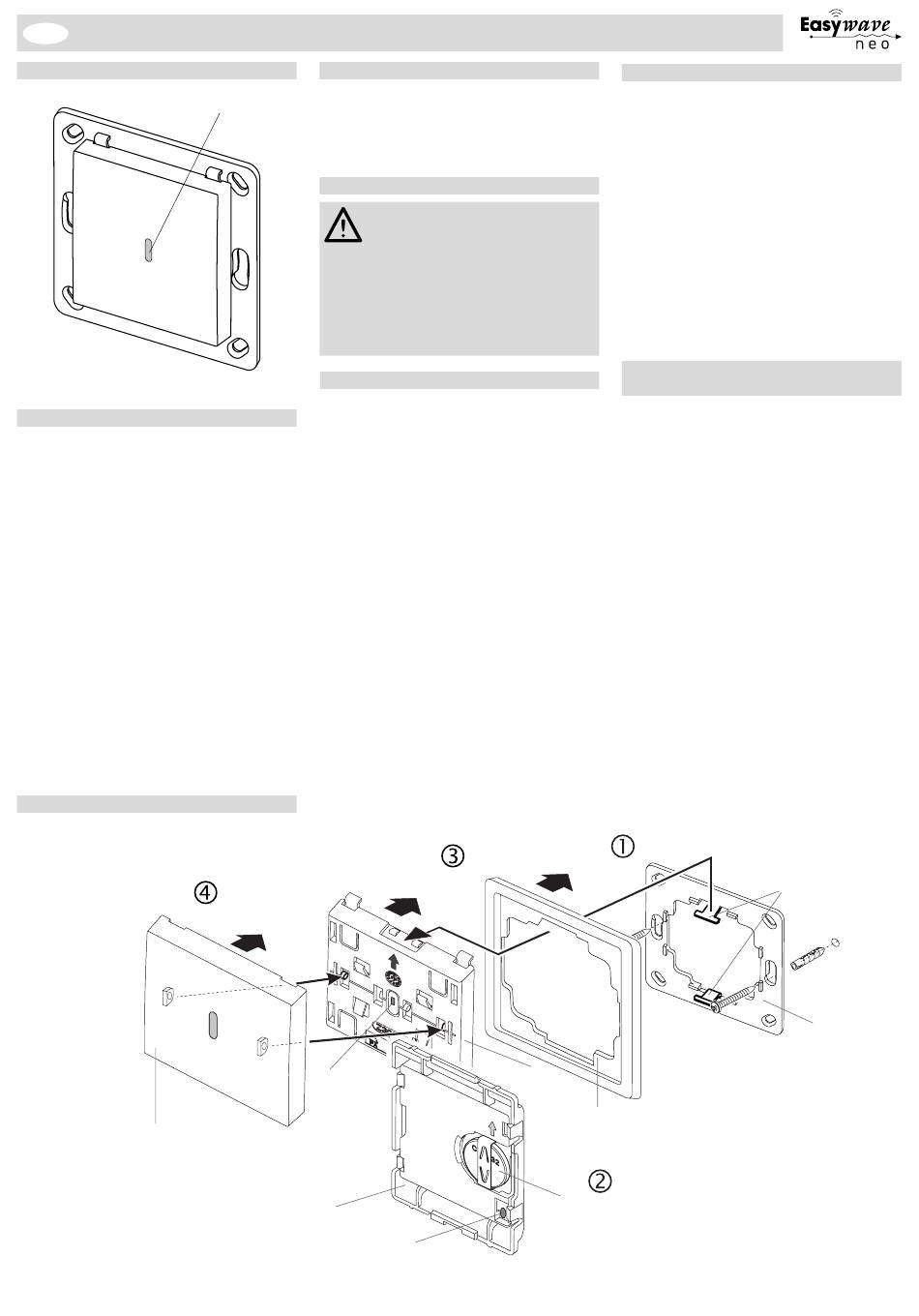

Start-Up
1. Screw or stick the mounting plate to the instal-
lation site.
Attention! Make sure there is no interference
with the wireless connection. Do not mount
the device in a distribution box, in metal cas-
ings, in direct proximity to large metal objects,
on the floor or close to it.
2. Insert the batterie (C) in the transmission mo-
dule (B2). The positive pole has to be visible!
3. Place the cover frame (D) onto the mounting
plate (E) and snap the transmission module
(B) to the catches (F) on top and bottom. The
arrow on the sensor module has to point up-
wards.
4. Snap the button (A) onto the transmission
module (B).
Programming the transmission code
into the receiver
To program the sensor into the Smarthome ser-
ver, please follow the instructions given in the
app.
As soon as you are prompted to do so, press the
rear learning button PTx to send the program-
ming telegram.
You can then press the front button (A) to trans-
mit the current measured values.
B1
A
D
B1
B2
PTx
C
C
D
E
F
G
F
E
Button
Transmission module front
Transmission module back
Learning button
Battery CR2032
Cover frame
(Not in the delivery)
Mounting plate
Catches
Transmission LED
