Eldat EasyWave SH01 User Manual

Radio humidity sensor
GB
Model
ON (A1)
I
0
Humidity sensor
ON(A2)
OFF (B1)
OFF(B2)
SH01E5002-01
Technische Daten

Technical Details

Frequency: 868,30 MHz
Radiated
power: 0.54 mW
Modulation: FSK
Coding: Easywave A/B
Power supply: 1x 3-V-battery, CR2032
or alternatively 12-24 V
SELV
Current
consumption: approx. 15 mA
Measuring
range: 1-99 % rH
Accuracy: +-5 % (with 30 % - 70 % rH)
Switching
value: 1. >74 % rH
2. fast rise at 4 %
starting from >40 % rH
Data logging: all 2 min
Operating
-20 °C to +60 °C
temperature:
Range: approx. 150 m
free-field:
approx. 30 m
buildings:
Degree of
: IP30
protection
Dimensions : button: 55x55x10 mm
plate: 71x71x1,5 mm
: 32,0 g incl. battery
Weight

Scope of Delivery

Sensor module, battery CR2032, mounting
plate, button, attachment set, operating
instructions

Intended Use

Only use the Radio humidity sensor SH01 in
indoor rooms to switch Easywave receivers.
The manufacturer shall not be liable for any
damage caused by improper or non-intended
use.

Safety Advice

Before using the Radio humidity
sensor, carefully read through the
operating instructions!
Also note the operating instructions of the
receiver!
Have faulty Radio humidity sensor checked
by the manufacturer!
Do not make any unauthorized alterations
or modifications to the Radio humidity
sensor!
Keep the batteries out of the reach of
children!
SH01

Function

The wireless sensor SH01 is a combination of
humidity sensor and push button.
Both the humidity sensor and the push button
have their own transmission code. The trans-
mission code of the push button is referred here
hereafter as A1 and B1 and the transmission
code of the sensor is referred to as A2 and B2.
The humidity sensor measures the relative air
humidity in cycles and sends a switching signal
to an Easywave wireless receiver when
exceeding and/or reaching defined values.
This can then switch connected ventilation
devices like e.g. fans or electric window
openers.
The push button function is a standard
Easywave application for turning electric
consumers ON or OFF.
The sensor is compatible to several frames,
having internal dimensions of 55x55 mm.
Please find a choice of compatible in the data
sheet.

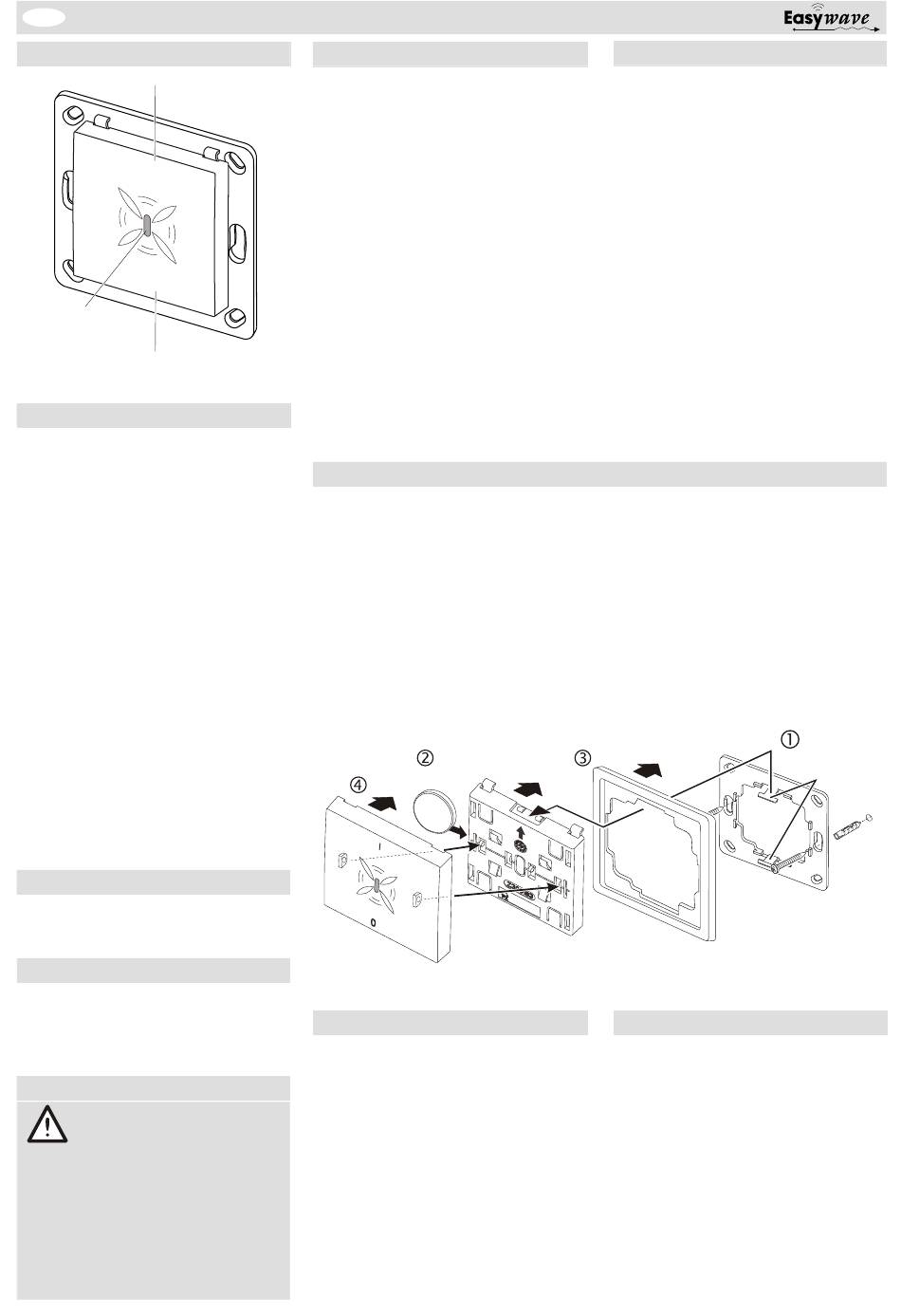

Start-up

1. Screw or stick
installation site with the screws and dowels
or the adhesive pads.
AC/DC
Caution: Make sure there is no inter-
ference with the wireless connection. Do
not mount the device in a distribution box,
in metal casings, in direct proximity to
large metal objects, on the floor or close
to it.
2. Legen Sie die Batterie in das Sensormodul
ein (s. auch Abschnitt „Batterie wechseln").
battery
button

Memorizing the sensor codes

There are two possibilities to teach the sensor
code into an Easywave radio receiver.
A Two seconds after inserting the battery, the
Easywave code B2 is sent automatically.
B Teaching in through button assignment
1. Press the button on the top for approx. 5
seconds (measuring point A1) until the
LED in the humidity sensor lights up.
2. Put the radio receiver into teach-in mode
and then press the button on the bottom.
You have 10 seconds to complete this
procedure. The sensor code (Easywave
code B2) is transmitted to the receiver and
the LED goes off after 10 seconds.
the mounting plate to the
sensor module

Monitoring of air humidity

The wireless humidity sensor has three
operating ranges.
Range 1 is the range below 40% rH (relative
humidity). The humidity sensor does not react
in this range.
Range 2 is the range from 40% rH to 74% rH. In
this range the humidity sensor reacts to a
sudden rise in air humidity. If the relative
humidity rises 4% rH within two minutes (e.g.
when showering), an A2 switch signal (ON) is
sent. Once the humidity level approaches the
initial value again, a B2 switch signal (OFF) is
sent.
Range 3 is the range above 74 % rH. If this
range is reached, the sensor sends an A2
switch signal (ON). If the relative humidity
drops below 72% rH, the humidity sensor
sends a B2 switch signal (OFF). If the relative
humidity does not drop below 72% rH within
four hours, the sensor will also send a B2
switch signal (OFF).
3. Place the cover frame onto the mounting
plate and snap the transmission module to
the catches on top and bottom. The arrow
on the sensor module has to point
upwards.
4. Snap the button onto the transmission
module
5. Memorize the sendor code and additional
the button code in the receiver. Please
read the chapter „Memorizing the sensor
code" or „Memorizing the button code" and
the instructions supplied with the receiver.
mounting plate
cover frame
(not in the delivery)

Memorizing the button code

1. Put the radio receiver into teach-in mode.
2. Press the button on the top briefly
(measuring point A1), the tranmission
code is sent.
catch
