TimeTec BLE-2
Barrier Gate/Turnstile
Installation Guide
RECOMMENDATIONS:
STEP • 1
BARRIER GATE
Determine
•

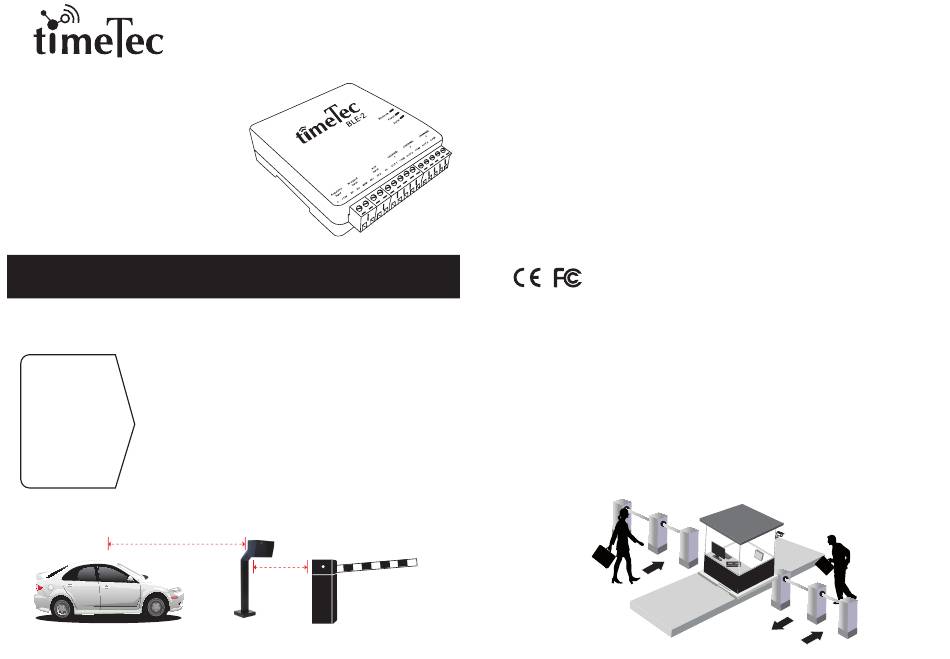

Install TimeTec BLE-2 inside a PVC/plastic enclosure and on a
where you
•
Protect wires from TimeTec BLE-2 to the barrier gate via concealed
want to install
piping.
•
TimeTec
A single TimeTec BLE-2 can control a maximum of two barrier gates
simultaneously but only when the gates are operating in the same
BLE-2
direction. If there are two barrier gates that are facing different
directions, you will need to utilize two TimeTec BLE-2 instead.
X-meter
2-meter
©
2019 Timetec Cloud Sdn Bhd. All rights reserved • 012019
TURNSTILE
•
A single TimeTec BLE-2 can control one turnstile at a time even if the turnstile operates
in two different directions.
•
Install TimeTec BLE-2 inside a turnstile housing together with the turnstile controller in
order to minimise the need for extra wiring.
•
Place the correct QR code at the turnstile to indicate the movement directions (in or
out). A single TimeTec BLE-2 can control both in and out direction, thus there will be 2
different QR codes stickers to be placed on both directions.
•
If a second TimeTec BLE-2 is installed to control the in or out movement, please place
the respective QR code (in/out) to each turnstile.
