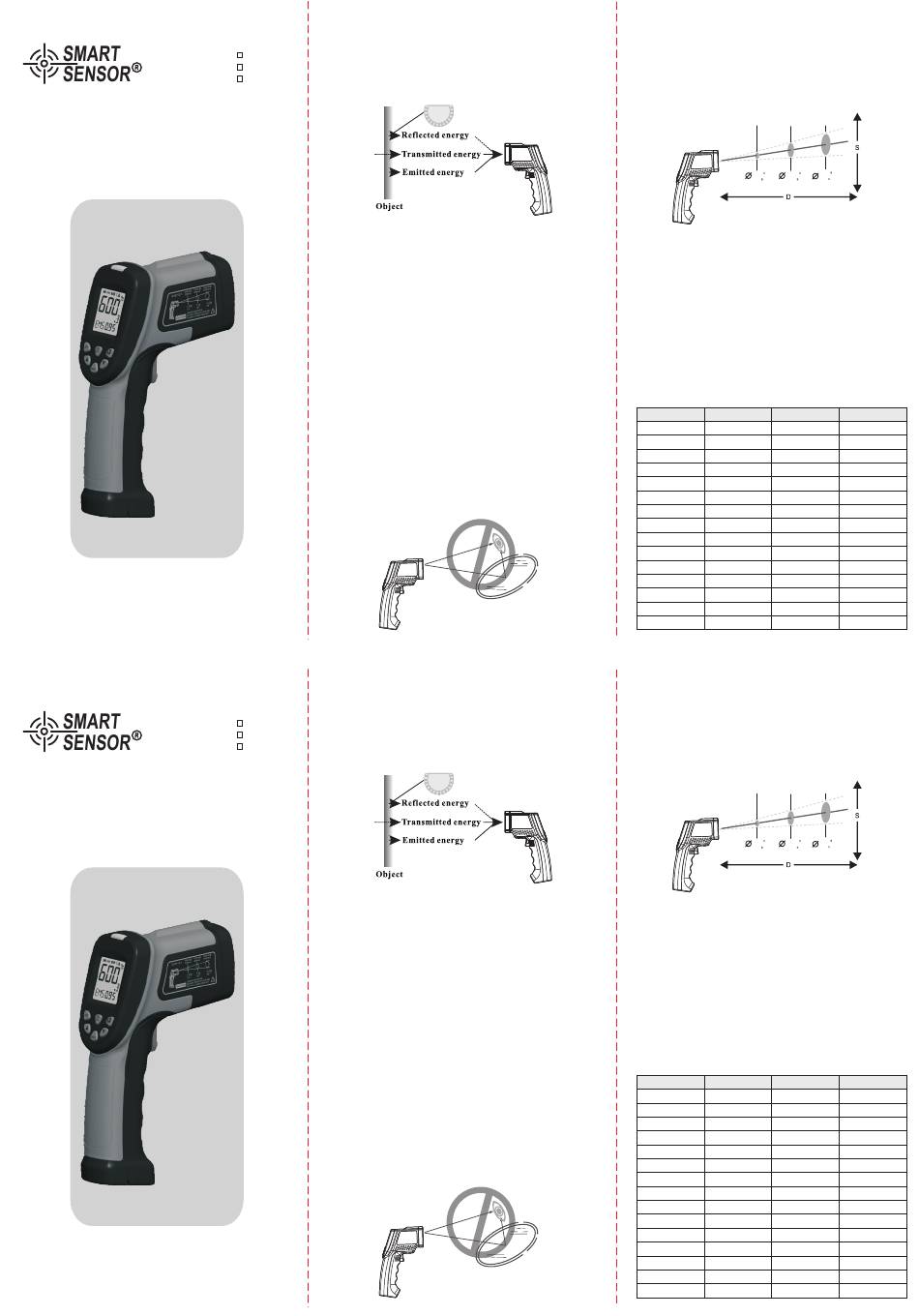

Smart Sensor AS842A Instruction Manual page 2

MODEL：
Non-contact infrared thermometer
Instruction manual
MODEL：
Non-contact infrared thermometer
Instruction manual
Introduction
Compact, rugged and easy to use. Just aim and push
the button, read current surface te-mperatures in
AS842A
less than a second. Safely me-asure surface
AS852B
temperatures of hot, hazardo-us or hard-to-reach
AS862A
objects without contact.
How it works
Infrared thermometer measure the surface temperature
of an object. The units optical system sense the object s
emitted energy with different wavelength.It is collected
and focus onto a detector. The unit s electronics system
translated the information into a temperature reading
which is displayed on the unit.
Cautions
Infrared thermometer should be protected for the
following:
--EMF (electro-magnetic fields) from arc weld-ers,
induction heaters.
--Thermal shock (cause by large or abrupt ambi-ent
temperature changes allow 30 minutes for unit to
stabilize before use).
--Do not leave the unit on or near objects of high
temperature.
Warning
Do not point laser directly at eye or indire-ctly off
reflective surfaces.
Introduction
Compact, rugged and easy to use. Just aim and push
the button, read current surface te-mperatures in
AS842A
less than a second. Safely me-asure surface
AS852B
temperatures of hot, hazardo-us or hard-to-reach
AS862A
objects without contact.
How it works
Infrared thermometer measure the surface temperature
of an object. The units optical system sense the object s
emitted energy with different wavelength.It is collected
and focus onto a detector. The unit s electronics system
translated the information into a temperature reading
which is displayed on the unit.
Cautions
Infrared thermometer should be protected for the
following:
--EMF (electro-magnetic fields) from arc weld-ers,
induction heaters.
--Thermal shock (cause by large or abrupt ambi-ent
temperature changes allow 30 minutes for unit to
stabilize before use).
--Do not leave the unit on or near objects of high
temperature.
Warning
Do not point laser directly at eye or indire-ctly off
reflective surfaces.
1.When take measurement, point thermome-ter toward
the object to be measured and hold the yellow trigger.
The object under test should be larger than the spot
size cal-culated by the field of view diagram.
2.Distance & spot size: As the distance from the object
increase, the spot size of meas-uring area becomes
larger.
3. Field of view: Make sure the target is larger than the
,
unit's spot size. The smaller the tar-get the closer
measure distance. When acc-uracy is critical, make
,
sure the target is at least twice as large as the spot size.
4. Emissivity: Most organic materials and pa-inted or
oxidized surfaces have an emissiv-ity of 0.95 (pre-
set in the unit). Inaccurate readings will result from
measuring shiny or polished metal surfaces. To
compensate, cover the surface to be measured with
mas-king tape or flat black paint. Measure the tape or
painted surface when the tape or painted reach the
same temperature as the material underneath.
Marterial
Aluminum
Asbestos
Asphalt
Basalt
Brass
Brick
Carbon
Ceramic
Concrete
Copper
Dirt
Frozen food
Hot food
Glass(plate)
Ice
1.When take measurement, point thermome-ter toward
the object to be measured and hold the yellow trigger.
The object under test should be larger than the spot
size cal-culated by the field of view diagram.
2.Distance & spot size: As the distance from the object
increase, the spot size of meas-uring area becomes
larger.
3. Field of view: Make sure the target is larger than the
,
unit's spot size. The smaller the tar-get the closer
measure distance. When acc-uracy is critical, make
,
sure the target is at least twice as large as the spot size.
4. Emissivity: Most organic materials and pa-inted or
oxidized surfaces have an emissiv-ity of 0.95 (pre-
set in the unit). Inaccurate readings will result from
measuring shiny or polished metal surfaces. To
compensate, cover the surface to be measured with
mas-king tape or flat black paint. Measure the tape or
painted surface when the tape or painted reach the
same temperature as the material underneath.
Marterial
Aluminum
Asbestos
Asphalt
Basalt
Brass
Brick
Carbon
Ceramic
Concrete
Copper
Dirt
Frozen food
Hot food
Glass(plate)
Ice
38mm@ 132mm@
75mm@
D:S=12:1
300mm 1500mm
900mm
1.5 @ 3.0 @ 5.3 @
12 36 60
Emissivity Emissivity
Marterial
0.30 Iron 0.70
0.95 Lead 0.50
0.95 Limestone 0.98
0.70 Oil 0.94
0.50 Paint 0.93
0.90 Paper 0.95
0.85 Plastic 0.95
0.95 Rubber 0.95
0.95 0.90
Sand
0.95 Skin 0.98
0.94 Snow 0.90
0.90 Steel 0.80
0.93 Textiles 0.94
0.85 Water 0.93
0.98 Wood 0.94
38mm@ 132mm@
75mm@
D:S=12:1
300mm 900mm 1500mm
5.3 @
1.5 @ 3.0 @
12 36 60
Emissivity Emissivity
Marterial
0.30 Iron 0.70
0.95 Lead 0.50
0.95 Limestone 0.98
0.70 Oil 0.94
0.50 Paint 0.93
Paper
0.90 0.95
0.85 Plastic 0.95
0.95 Rubber 0.95
0.95 Sand 0.90
0.95 Skin 0.98
0.94 0.90
Snow
0.90 Steel 0.80
0.93 Textiles 0.94
0.85 Water 0.93
0.98 Wood 0.94
