Observation Microscopie Observation Microscopy Réf : 571 415 571 416 Microscopes ME à LED autonome ME Microscopes with Stand-Alone LED Français – p 1 English – p 6 Version : 8107 FRANÇAIS...
Page 2

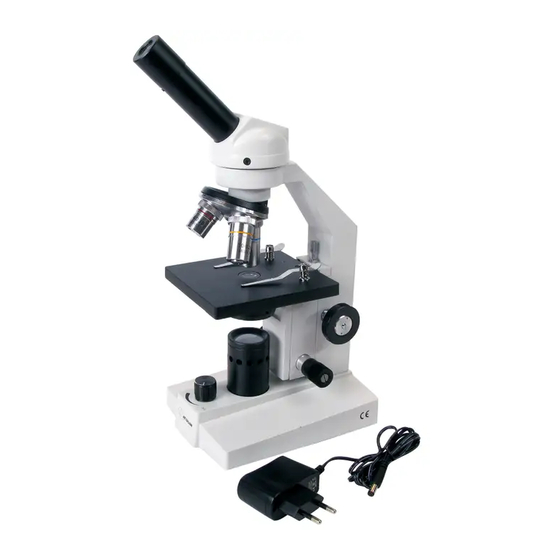

Observation Microscopes ME à LED autonome Réf: 571415 & 571416 Légende : A Oculaire grand champ fixé par vis H Tourelle 4 place B Objectifs achromatiques I Vis de réglage de la butée C Platine carrée avec valets J Mise au point macrométrique D Condenseur fixe et porte filtre K Mise au point micrométrique E Éclairage LED...
Observation Microscopes ME à LED autonome Réf: 571415 & 571416 Vous venez de faire l’acquisition d’un microscope de la gamme ME et nous vous en remercions. Cet instrument de qualité est conçu pour répondre parfaitement aux exigences de votre enseignement. La lecture de ce mode d'emploi est requise avant de faire fonctionner ou d'utiliser votre microscope afin d’en préserver son bon état de fonctionnement.
Observation Microscopes ME à LED autonome Réf: 571415 & 571416 1.3. Accessoires Seuls les accessoires décrits dans ce mode d’emploi peuvent être utilisés avec votre microscope ME. Cependant, vous pouvez utiliser des accessoires d’autres fabricants. Dans ce cas, veuillez-vous référer aux instructions décrites dans le manuel d’utilisation du fournisseur.
Observation Microscopes ME à LED autonome Réf: 571415 & 571416 4. Alimentation du microscope Le microscope ME à LED autonome peut être alimenté de 2 manières 4.1. Alimentation par transformateur séparé Un transformateur séparé est livré en standard avec votre microscope. Brancher le transformateur au secteur 220 V et raccorder la fiche jack à...
Démontage : un microscope est un appareil de précision d'usinage délicat. Si le démontage s'avère nécessaire (maintenance), il faut retourner l'instrument à la société JEULIN. La plaque inférieure qui le ferme ne doit être ouverte que par un électricien, le boîtier devant rester protégé...
Page 7
Microscopy Microscopes ME à LED autonomeRef : 571 415 & 571 416 Caption: A Wide field eyepiece secured by screws H - 4-position turret B Achromatic objectives G - Monocular head C Square-shaped platinum with hacks I - Gear adjusting screw D Fixed condenser and filter holder J - Macro-focus E LED lighting...
Microscopy Microscopes ME à LED autonomeRef : 571 415 & 571 416 You have just acquired a microscope of range ME and we thank you for that. This quality instrument is designed to comply fully with the requirements of your teaching. Kindly read this instruction manual before operating or using your microscope in order to keep it in good operating conditions.
Page 9
Microscopy Microscopes ME à LED autonomeRef : 571 415 & 571 416 1.3. Accessories You can only use the accessories described in this instruction manual with your ME microscope. However, you can use accessories from other manufacturers. In this case, please refer to the instructions described in the supplier’s instruction manual.
Microscopy Microscopes ME à LED autonomeRef : 571 415 & 571 416 4. Microscope Supply The ME microscope with stand-alone LED can be powered in two ways 4.1. Supply by Separated Transformer A separated transformer is delivered in standard with your microscope. Plug the transformer to the mains 220 V and connect the jack plug to the rear of the microscope.
Disassembly: a microscope is a delicate machining precision device. If there should be a need for disassembly (maintenance), return the instrument to JEULIN. Only the electrician can open the lower plate that closes it, the casing must remain protected in terms of electrical safety.
