Summary of Contents for Plymovent MER

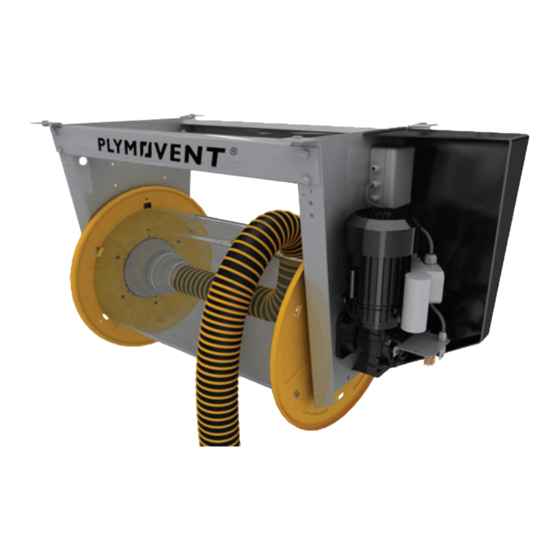

- Page 1 Motorized Exhaust Hose Reel www.plymovent.com...
- Page 2 Thus the manufacturer cannot be held responsible for any damage resulting from the application of this publication to the version actually delivered to you. This publication has been written with great care. However, the manufacturer cannot be held responsible, either for any errors occurring in this publication or for their consequences. 0000110984/160920/A MER...
-
Page 3: Table Of Contents
TABLE OF CONTENTS ENGLISH Page Preface Introduction Product description Safety Installation Pressure loss calculation Electrical diagram MER spare parts 0000110984/160920/A MER... - Page 4 If this equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired. In no event will Plymovent be responsible or liable for indirect or consequential damages resulting from the use or application of this equipment.
-
Page 5: Preface
INTRODUCTION Note: For North America, MER includes a 160 to 150 mm (6.25 to 6 in.) reducer to decrease the diameter of the hose Identification of the product when making connections to standard 150 mm (6 in.) The identification sticker on the hose reel, as shown in Fig. - Page 6 The maximum hose length that MER supports is dependent on the specific version of MER hose reel ordered, the type and size Note: As an alternative to MER being connected to a ductwork of the hose, and the type of the nozzle.
-
Page 7: Product Description
SAFETY contains sufficient approved fire extinguishers. Tools General These tools are needed to install the MER system: The manufacturer does not accept any liability for damage to the • Battery screw gun product or personal injury caused by ignoring the safety •... -
Page 8: Installation
Failure to do so could result in reduced performance of the unit, serious personal injury or death. ATTENTION The MER hose reel is delivered without cables for external field wiring. When using the MSR mircoswitch all interconnect cables/wire size used shall comply with the local requirements. - Page 9 Fig. 4.2.2c. This will prevent the hose from scraping the horizontal “console” bar, or colliding with any items attached to the column or wall below the reel. Fig. 4.2.2c Hose rotating away from column or wall 0000110984/160920/A MER...
- Page 10 MER limit switch illustration Check MER terminal box wiring Plymovent recommends you check the MER motorplate wiring. Based on the model selected, the factory motorplate wiring will be configured for 115V, 230V or 460V, as shown in fig. 4.4b. The terminal box plate will indicate “Delta”...
- Page 11 4.5.1 Direct mount fan MER includes ceiling or wall mounting feet as a standard. All versions - except the 8 in. (200 mm) hose reel - can be fitted with a direct mount fan. Either for connection to a central exhaust system or fitted with a fan, as Fig.
-
Page 12: Pressure Loss Calculation
Ø 150 mm (6 in.) length 10 m (32,8 ft) Ø 150 mm (6 in.) length 12.5 m (41,1 ft) Ø 200 mm (8 in.) length 10 m (33 ft) Note: 75 mm (3 in.) hoses are not available in North America. 0000110984/160920/A MER... -
Page 13: Electrical Diagram
ELECTRICAL DIAGRAM MER 230V/460V 3 Phase Wiring Note: Make sure the transformer in the MER Control Box is wired for 230V or 460V. 0000110984/160920/A MER... - Page 14 ELECTRICAL DIAGRAM MER 120V Single Phase Wiring 0000110984/160920/A MER...
-
Page 15: Mer Spare Parts
How to Order Spare Parts: At this time, Plymovent is reviewing spare parts for this hose reel. Please contact your authorized distributor to discuss the spart that you need. You can identify your authorized distributor at https://www.plymovent.com - click the “Contact Plymovent” link and then click “Sales Offices.”... - Page 16 10340/290119/B MER www.plymovent.com...
