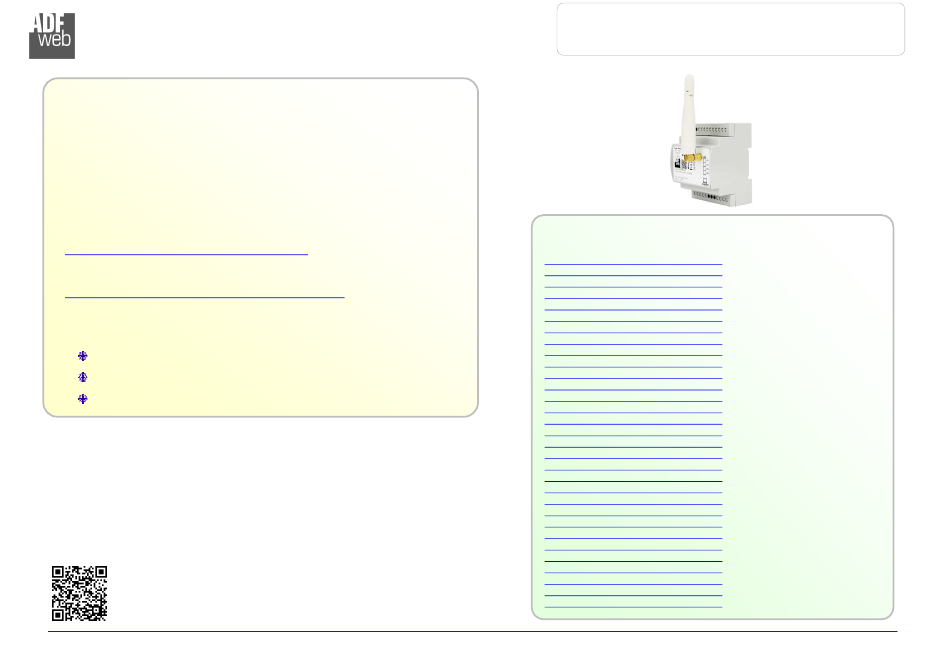

Industrial Electronic Devices
User Manual
Revision 1.000
English

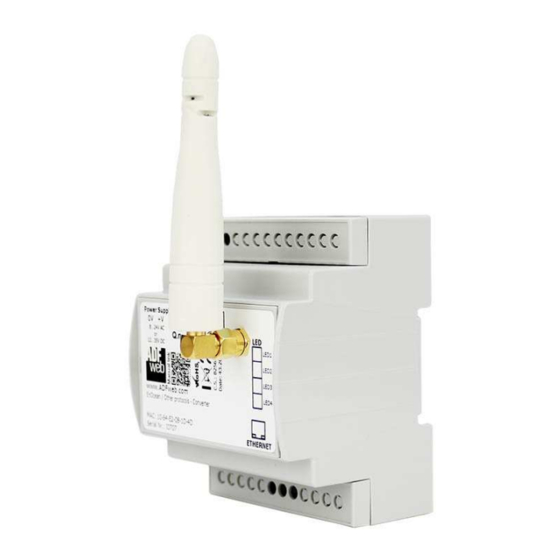

LoRaWAN / PROFIBUS Slave - Converter
(Order Code: HD67D31-B2-868MHz)
For Website information:
www.adfweb.com?Product=HD67D31-B2
For Price information:
www.adfweb.com?Price=HD67D31-B2-868MHz
Benefits and Main Features:
Very easy to configure
Power Supply 18...35V DC and 8...24 V AC
Temperature range: -40°C/+85°C (-40°F/+185°F)
User Manual
ADFweb.com S.r.l.
User Manual LoRaWAN / PROFIBUS Slave
Document code: MN67D31_ENG
For others LoRaWAN products, see also the following links:
Converter LoRaWAN to
www.adfweb.com?Product=HD67D01
www.adfweb.com?Product=HD67D02
www.adfweb.com?Product=HD67D03
www.adfweb.com?Product=HD67D04
www.adfweb.com?Product=HD67D05
www.adfweb.com?Product=HD67D15
www.adfweb.com?Product=HD67D16
www.adfweb.com?Product=HD67D17
www.adfweb.com?Product=HD67D18
www.adfweb.com?Product=HD67D19
www.adfweb.com?Product=HD67D20
www.adfweb.com?Product=HD67D21
www.adfweb.com?Product=HD67D22
www.adfweb.com?Product=HD67D23
www.adfweb.com?Product=HD67D24
www.adfweb.com?Product=HD67D25
www.adfweb.com?Product=HD67D26
www.adfweb.com?Product=HD67D27
www.adfweb.com?Product=HD67D28
www.adfweb.com?Product=HD67D29
www.adfweb.com?Product=HD67D30
www.adfweb.com?Product=HD67D32
www.adfweb.com?Product=HD67D33
www.adfweb.com?Product=HD67D34
www.adfweb.com?Product=HD67D35
www.adfweb.com?Product=HD67D36
www.adfweb.com?Product=HD67D37
www.adfweb.com?Product=HD67D38
www.adfweb.com?Product=HD67D39
www.adfweb.com?Product=HD67D40
www.adfweb.com?Product=HD67D41
Revision 1.000
Page 1 of 27
(Modbus Master)
(Modbus Slave)
(Modbus TCP Master)
(Modbus TCP Slave)
(Serial)
(M-Bus)
(BACnet Master)
(BACnet Slave)
(Ethernet)
(CAN)
(CANopen)
(DeviceNet Master)
(DeviceNet Slave)
(DMX)
(EtherNet/IP Master)
(EtherNet/IP Slave)
(J1939)
(KNX)
(NMEA 0183)
(NMEA 2000)
(PROFIBUS Master)
(PROFINET Master)
(PROFINET Slave)
(IEC61850 Client)
(IEC61850 Server)
(MQTT)
(OPC UA Client)
(OPC UA Server)
(S7comm)
(SNMP Manager)
(SNMP Agent)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD67D31-B2 and is the answer not in the manual?

Questions and answers

Related Manuals for Profibus HD67D31-B2

Summary of Contents for Profibus HD67D31-B2

  • Page 1 User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 1 of 27 Industrial Electronic Devices User Manual Revision 1.000 English LoRaWAN / PROFIBUS Slave - Converter (Order Code: HD67D31-B2-868MHz) For others LoRaWAN products, see also the following links: For Website information: www.adfweb.com?Product=HD67D31-B2...

  • Page 2: Table Of Contents

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 2 of 27 Industrial Electronic Devices INDEX: UPDATED DOCUMENTATION: Dear customer, we thank you for your attention and we remind you that Page you need to check that the following document is:...

  • Page 3: Security Alert

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 3 of 27 Industrial Electronic Devices SECURITY ALERT: ENERAL NFORMATION To ensure safe operation, the device must be operated according to the instructions in the manual. When using the device, legal and safety regulation are required for each individual application.

  • Page 4: Example Of Connection

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 4 of 27 Industrial Electronic Devices EXAMPLE OF CONNECTION: ADFweb.com S.r.l.

  • Page 5: Connection Scheme

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 5 of 27 Industrial Electronic Devices CONNECTION SCHEME: Figure 1: Connection scheme for HD67D31-B2-xxxMHz ADFweb.com S.r.l.

  • Page 6: Characteristics

    Revision 1.000 Page 6 of 27 Industrial Electronic Devices CHARACTERISTICS: The HD67D31-B2 is a LoRaWAN / PROFIBUS Slave Converter. It allows the following characteristics: Electrical isolation between PROFIBUS and Power Supply; Two-directional information between LoRaWAN bus and PROFIBUS bus; Mountable on 35mm Rail DIN;...

  • Page 7: Power Supply

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 7 of 27 Industrial Electronic Devices POWER SUPPLY: The devices can be powered at 8…24V AC and 12…35V DC. For more details see the two tables below. Vmin...

  • Page 8: Function Modes

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 8 of 27 Industrial Electronic Devices FUNCTION MODES: The device has got two functions mode depending of the position of the ‘Dip1 of Dip-Switch A’: The first, with ‘Dip1 of Dip-Switch A’ at “OFF” position, is used for the normal working of the device.

  • Page 9: Leds

    (yellow) Blinks very slowly (~0.5Hz): update in progress Blinks quickly: Boot state 3: PROFIBUS communication Blinks when a PROFIBUS response is received (yellow) Blinks very slowly (~0.5Hz): update in progress ON: An error in the communication busses occurs Blinks quickly: Boot state 4: Error state (yellow) Blinks very slowly (~0.5Hz): update in progress...

  • Page 10: Lorawan

    The converters support all the standard datarates and they work both on public and private networks. PROFIBUS: The PROFIBUS uses a 9-pin D-SUB connector. The pin assignment is defined like in the right figure Here some codes of cables: Belden: p/n 183079A - Continuous Armor DataBus® ISA/SP-50 PROFIBUS Cable;...

  • Page 11: Ethernet

    The Ethernet port is used for programming the device. The Ethernet connection must be made using Connector2 of HD67D31-B2 with at least a Category 5E cable. The maximum length of the cable should not exceed 100m. The cable has to conform to the T568 norms relative to connections in cat.5 up to 100 Mbps. To connect the device to an Hub/Switch is recommended the use of a straight cable, to connect the device to a PC is recommended the use of a cross cable.

  • Page 12: Use Of Compositor Sw67D31

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 12 of 27 Industrial Electronic Devices USE OF COMPOSITOR SW67D31: To configure the Converter, use the available software that runs with Windows called SW67D31. It is downloadable on the site www.adfweb.com and its operation is described in this document.

  • Page 13: New Configuration / Open Configuration

    Configuration” button creates the folder which contains the entire device’s configuration. A device’s configuration can also be imported or exported: To clone the configurations of a Programmable “LoRaWAN / PROFIBUS Slave - Converter” in order to configure another device in the same manner, it is necessary to maintain the folder and all its contents;...

  • Page 14: Software Options

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 14 of 27 Industrial Electronic Devices SOFTWARE OPTIONS: By pressing the “Settings” ( ) button there is the possibility to change the language of the software and check the updatings for the compositor.
  • Page 15 User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 15 of 27 Industrial Electronic Devices In the section “Software Settings”, it is possible to enable/disable some keyboard’s commands for an easier navigation inside the tables contained in the different sections of the software.

  • Page 16: Set Communication

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 16 of 27 Industrial Electronic Devices SET COMMUNICATION: This section define the fundamental communication parameters of two buses, LoRaWAN and PROFIBUS Slave. By Pressing the “Set Communication” button from the main window for SW67D31 (Fig.
  • Page 17 User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 17 of 27 Industrial Electronic Devices WAN: This section is used to define the general parameters of LoRaWAN. The means of the fields are: In the field “RF Band”...
  • Page 18 In the field “ID Device” the ID for the PROFIBUS side is defined; In the field “Buadrate” the data rate of PROFIBUS is defined (fixed to “Auto Baudrate”); In the field “Number Byte In” the number of input byte of PROFIBUS is defined;...

  • Page 19: Lorawan Access

    Access” button from the main window for SW67D31 (Fig. 2) the window “Set LoRaWAN Access” appears (Fig. This section is used to define the LoRAWAN messages where the converter will place the data read from PROFIBUS (Uplink) and the LoRAWAN messages that the converter will take (Downlink) for writing the data to PROFIBUS.

  • Page 20: Gsd File

    With this feature you can save the configuration of the gateway of the PROFIBUS side. Note: When you import the .gsd file on your Master PROFIBUS you have to add all the modules that are present inside it. ADFweb.com S.r.l.

  • Page 21: Update Device

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 21 of 27 Industrial Electronic Devices UPDATE DEVICE: By pressing the “Update Device” button, it is possible to load the created Configuration into the device; and also the Firmware, if necessary. This by using the Ethernet port.
  • Page 22 User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 22 of 27 Industrial Electronic Devices Note: When you receive the device, for the first time, you also have to update the Firmware in the HD67D31 device. Warning: If Fig.

  • Page 23: Lorawan Payload

    The LoRAWAN messages in Uplink and Downlink are structured into a defined format in order to recognize them from LoRaWAN gateway side and to understand to which PROFIBUS data they are associated. The payload of the LoRaWAN messages is defined in Hex format: The first byte refers to the row of the tables defined into “LoRaWAN Access”...

  • Page 24: Mechanical Dimensions

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 24 of 27 Industrial Electronic Devices MECHANICAL DIMENSIONS: Figure 7: Mechanical dimensions scheme for HD67D31-B2 ADFweb.com S.r.l.

  • Page 25: Ordering Informations

    Connectors Type 2: Fixed Screw Terminal Enclosure Type B: Modulbox 4M, 35mm DIN Rail mounting Device Family HD67D31: LoRaWAN / PROFIBUS Slave - Converter Order Code: HD67D31-B2-868MHz LoRaWAN / PROFIBUS Slave – Converter ACCESSORIES: Order Code: AC34011 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz – 12 V DC Order Code: AC34012 35mm Rail DIN - Power Supply 220/240V AC 50/60Hz –...

  • Page 26: Disclaimer

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 26 of 27 Industrial Electronic Devices DISCLAIMER: All technical content within this document can be modified without notice. The content of the document is a under continual renewal.

  • Page 27: Warranties And Technical Support

    User Manual LoRaWAN / PROFIBUS Slave Document code: MN67D31_ENG Revision 1.000 Page 27 of 27 Industrial Electronic Devices WARRANTIES AND TECHNICAL SUPPORT: For fast and easy technical support for your ADFweb.com SRL products, consult our internet support at www.adfweb.com. Otherwise contact us at the address support@adfweb.com...
