Rolls HR70 Quick Start Operation Manual

For Class A equipment:
Note: This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio commu-
nications. Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be required to
correct the interference at his own expense.
www.rolls.com
Rolls Corporation
Salt Lake City, UT
5/21

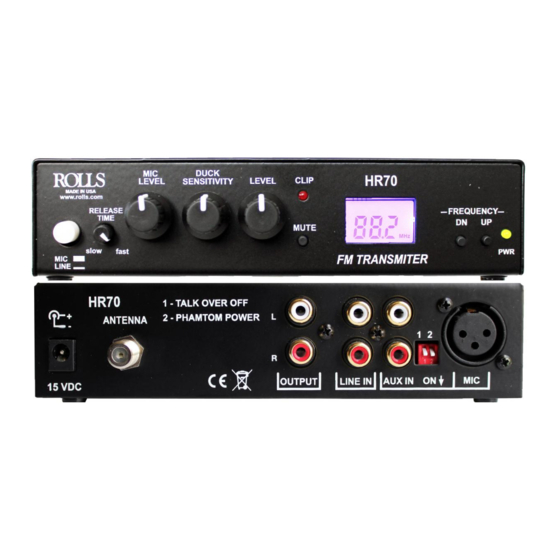

HR70
1 - TALK OVER OFF
+
2 - PHANTOM POWER
ANTENNA
-
Digital FM Transmitter
15 VDC
MIC DUCK
LEVEL
SENSITIVITY
www.rolls.com
RELEASE
TIME
slow fast
MIC
LINE
FCC ID: K48HR70
Rolls HR70 this device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by Rolls Corp. could
void the user's authority to operate the equipment.
SPECIFICATIONS
Frequency Response:
Input Impedance:
Indicators:
Input/Output jacks:
Power:
Antenna Jack:
Antenna Impedance:
Tuning Range:
Dimensions:
Weight:
QUICK START OPERATION GUIDE
HR70
1 2
OUTPUT LINE IN AUX IN ON
HR70
LEVEL CLIP
FREQUENCY
103.5
MUTE
MHz
FM TRANSMITTER
20 Hz - 12.5 kHz
100KΩ Unbalanced, 600Ω Balanced
Power LED and Clip LED
XLR balanced INPUT
RCA unbalanced input and output
Rolls PS27s 12 - 15 VDC 500mA
RP-SMA connector
50Ω
88.3 - 107.7 MHz
6.75"w x 4.25"d x 1.6"h
1.5 lbs
MIC
DN UP
PWR
