NuAire NRG-ILTIM Installation And Maintenance

Introduction
The four motorised inline damper models with run on
timers are designed for installation with Nuaire's range
of Ecosmart Constant Pressure Variable Volume extract
fans.
The units incorporate a fixed damper to set the trickle
ventilation flow rate and a wax type 230v driven
actuator to increase the flow rate to boost on demand.
Units are rectangular in section, manufactured from
pre-galvanised steel and designed to match duct sizes of
100mm, 125mm, 150mm and 200mm.

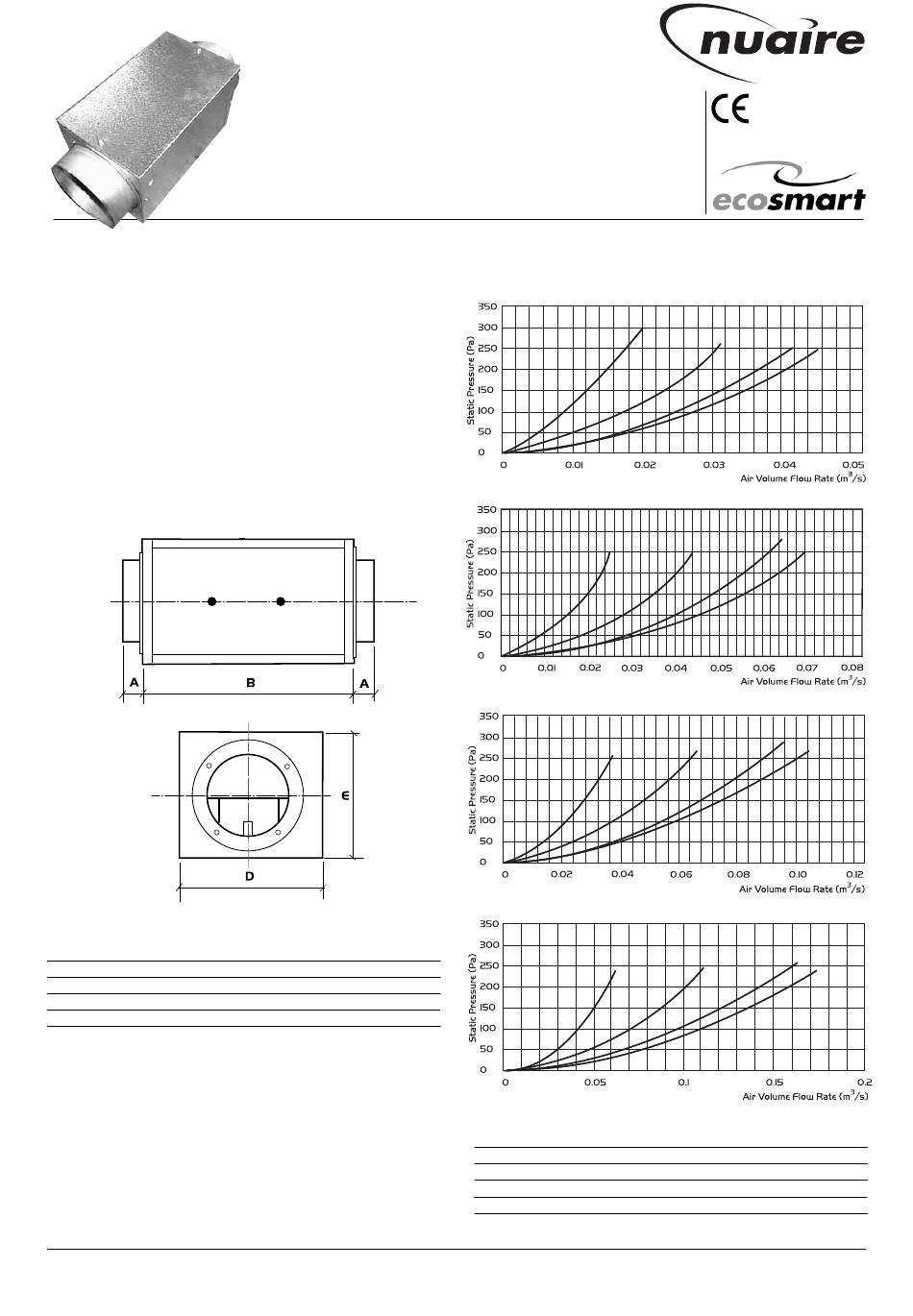

Dimensions
Figure 1.
Dimensions in mm.
Unit A
NRG-ILTIM 50 200
NRG-IL125TIM 50 300
NRG-IL150TIM 50 300
NRG-IL200TIM 50 400
Handling
Handle the units carefully to avoid damage and distortion
to moving parts.
Nuaire: A Trading Division of Polypipe Limited Western Industrial Estate Caerphilly United Kingdom CF83 1NA
T: 029 2088 5911 F: 029 2088 7033 E: info@nuaire.co.uk W: www.nuaire.co.uk
Constant Pressure
Variable Volume Inline Dampers
with adjustable Run on Timer
NRG-ILTIM/NRG-IL 125TIM/NRG-IL 150TIM/NRG-IL200TIM
Installation and Maintenance
B C D
100 120 120
125 178 178
150 178 178
200 225 225
Performance Detail
Figure 2. Resistance of NRG-ILTIM.
Figure 3. Resistance of NRG-IL125TIM.
Figure 4. Resistance of NRG-IL150TIM.
Figure 5. Resistance of NRG-IL200TIM.
E
Acoustic information
Lw Position 1
70Pa 25.1
100Pa 30
130Pa 33.5
150Pa 37.1
1
The EMC Directive
2014/30/EU
The Low Voltage
directive
2014/35/EU
Position 2 Position 3 Position 4
21.6 -
30.3 32.2
32.8 36
37.3 -
15. 05. 17. Leaflet Number 671264
23
33.3
37.1
38.6
