Bryston SWB2 Hookups And Settings

OFF/ON OFF/ON OFF/ON
INPUTS
RIGHT ~ LEFT
+ +
-
RIGHT LEFT
POWER AMPLIFIER OUTPUTS
2WSB-HOOKUP .cdr WRP 9 JULY 2001
A A A
OFF/ON OFF/ON OFF/ON
OUTPUT "B"
RIGHT ~ LEFT
-
+ + -
RIGHT ~ "B" SPEAKERS ~ LEFT
2 WAY SPEAKER
SWITCH BOX
B B B HEADPHONE HEADPHONE HEADPHONE
JACK JACK JACK
OUTPUT "A"
RIGHT ~ LEFT
+ + -
TWO WAY SPEAKER
SWITCH BOX HOOKUP

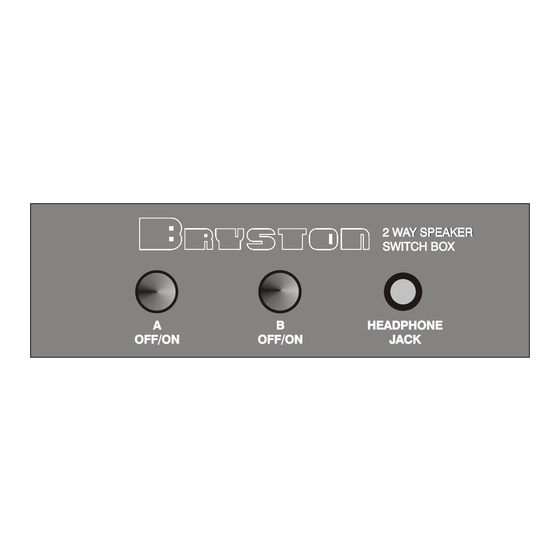

ON/OFF Switches: when pushed
in are ON, when released (out)
are OFF.
HEADPHONE JACK: 1/4" stereo
phone jack, current limited.
GROUND: BLACK binding posts
and SLEEVE of headphone jack.
Common to all inputs and outputs
including headphone jack.
RED binding post/banana
jack connectors are
POSITIVE (+).
BLACK connectors are
NEGATIVE (-) or common.
+ + -
RIGHT ~ "A" SPEAKERS ~ LEFT
+ + -
