Summary of Contents for Kingspan TMS300

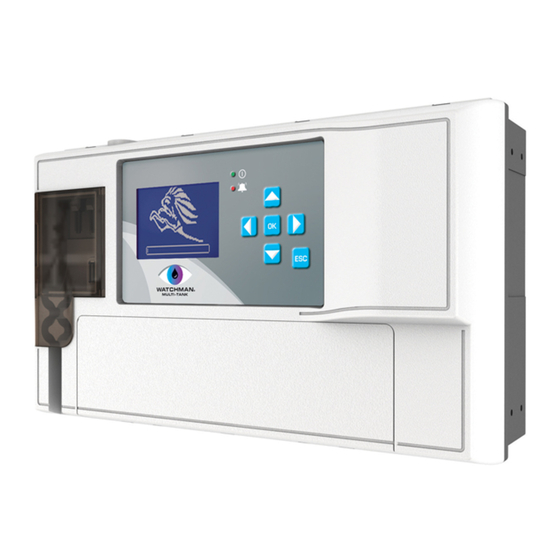

- Page 1 Smart Monitoring TMS300 CS Multi-Tank User and Installation Manual kingspanenergymanagement.com...
-
Page 2: Table Of Contents
TMS300 CS Multi-Tank – User Manual Contents Specification 1.1. Dimensions 1.2. Electrical and environmental specification 1.3. Inputs 1.4. Outputs 1.5. Relay outputs 1.6. Connectivity 1.7. Sensor 1.8. Additional equipment 2. Safety precautions 3. Mounting 4. Operation manual 4.1. Tanks 4.2. Network 4.3. - Page 3 TMS300 CS Multi-Tank – User Manual Summary of features · Tank levels via Local screen, embedded · CE certificated webserver, App, online portal or emails · Historical levels · Multi tank level measurement (wireless and · Levels (litres, percentage, mm) wired, up to 18 channels) ·...
-
Page 4: Specification
TMS300 CS Multi-Tank – User Manual 1. Specification 1.1. Dimensions · Width: 300 mm · Height: 180 mm · Depth: 100 mm Note: The information supplied in this manual is for guidance only – no part of this may be used for any agreement, whether express or implied, or to form any contract. -
Page 5: Connectivity
TMS300 CS Multi-Tank – User Manual 1.5. Relay outputs 12-24 V DC Resistive load + GND Number of relays Contact mechanism DPCO Max. switching voltage 250 V AC, 220 V DC Max switching current Relay 1 Relay 2 1.6. Connectivity ·... -
Page 6: Safety Precautions
TMS300 CS Multi-Tank – User Manual 2. Safety precautions Installation Note: This installation procedure is for guidance only, and its suitability should be verified by the installer. The following safety precautions are strongly recommended: · Before attempting to install and operate the unit, read the instruction and installation manual carefully. -
Page 7: Mounting
TMS300 CS Multi-Tank – User Manual 3. Mounting Wall mount Panel mount (required panel mount kit) · Drill four holes in the wall, according to the · Cut a hole in the panel with the described template and insert the wall plugs dimensions (page 20) ·... - Page 8 TMS300 CS Multi-Tank – User Manual 3. Mounting Template - page 20...
-
Page 9: Operation Manual
TMS300 CS Multi-Tank – User Manual 4. Operation manual In order to fully understand the operation of the unit, this section should be read carefully. Power ON/OFF indicator Alarm Triggered Indicator Max. Volume Alarm Hard Max. Volume Alarm Soft (blinking icon) Min. -
Page 10: Tanks
TMS300 CS Multi-Tank – User Manual 4. Operation manual Main menu To set Automatic Network Configuration, use key to select DHCP and use the This screen allows user to choose any options key to select or deselect this option. available. -
Page 11: Lcd Backlight On/Off
TMS300 CS Multi-Tank – User Manual 4.4. LCD backlight ON/OFF 4.6. Webserver This screen allows user to switch ON/OFF ‘auto backlight’ option. password to choose the option and press key to confirm. This screen allows user to reset the webserver ‘admin’... -
Page 12: Web Server Connection
TMS300 CS Multi-Tank – User Manual 5. Web server connection 5.2. Direct connection To connect with unit’s embedded Web Server, connect unit to the network (switch, hub, router etc.) using Ethernet CAT-5 cable or directly to the network adapter on your ·... -
Page 13: Wi-Fi Connection (Usb Wi-Fi Adapter Required)
TMS300 CS Multi-Tank – User Manual 5.2. Direct connection Default username and password: Administrator: Username: admin Password: last 4 digits of the units serial number This password can be changed, see page 11. User: (only for viewing levels) Username: user Password: last 4 digits of the units serial number This password cannot be changed. -
Page 14: Configuring Sensor And Tank Details
TMS300 CS Multi-Tank – User Manual 6. Configuring sensor and tank details 6.1. Channel wizard · 4-20 mA utrasonic sensor This screen allows user to configure sensor and tank details. STEP 1 Choose the channel, set name and click NEXT. -
Page 15: Connectivity Wizard
TMS300 CS Multi-Tank – User Manual 6.1. Channel wizard 6.2. Connectivity wizard This screen allows user to connect to remote server. STEP 4 · GSM - Kingspan SIM CARD Set the alarm thresholds. For SIM CARD activation please contact Customer Service. -
Page 16: Relays
TMS300 CS Multi-Tank – User Manual 6.2. Connectivity wizard · GSM - 3rd PARTY SIM CARD For connection using 3rd party SIM CARD. Clik TEST button. Test results will be displayed in few minutes. If Success, click FINISH. Do not proceed if the... -
Page 17: Setup Summary
TMS300 CS Multi-Tank – User Manual 6.4. Setup summary This screen allows user to view all the settings for each channel, e.g. tank details, relays etc. 6.5. Real-time data This screen allows user to view all the data from the channels. -
Page 18: Software Upgrade By Usb Cable
TMS300 CS Multi-Tank – User Manual 7. Software upgrade by USB cable STEP 1 STEP 6 Switch OFF the power supply. The unit should enumerate as a “BOOTLOADER” USB Mass Storage. STEP 2 Take off the front lid and switch the battery backup off. -
Page 19: Wall Mount Template
TMS300 CS Multi-Tank – User Manual 8. Wall mount template Wall mount template on the next page has dimensions of 296x169 mm. It represents in 1:1 scale the area required to be cut out for panel mount. The four studs at the corners are showing the exact position of the four panel mount fixing clips. - Page 21 Visit kingspanenergymangement.com to learn more about our products in over 40 countries. For local information on the Smart Monitoring Range please visit: New Zealand Czech Republic E: sensor@kingspan.com E: tankinfo@kingspan.co.nz E: sensoreu@kingspan.com Tel: +44 (0) 228 3836 4444 Tel: +44 (0) 228 3836 4444...
