auxi wls
Wireles module 2 inputs/2outputs
868 MHZ bidirectional
Installation guide
INTRODUCTION

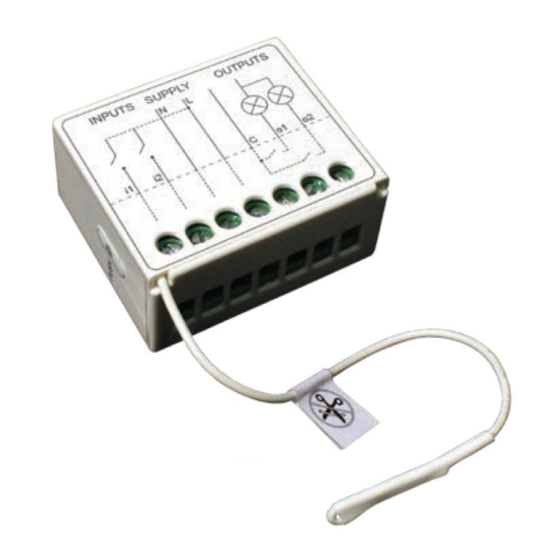

auxi wls is a wireless module with 2 built-in inputs and outputs. Powered directly from the mains, auxi wls is
ideal to remotely manage lights, home automations (such as roller blinds and curtains) and, generally, any
load unreachable by cables. auxi wls can be used in conjunction with lares 4.0 control panels or as a stand-
alone device. In the second case, the outputs can be controlled locally (using the inputs on board) or
remotely, using the opera remote control.

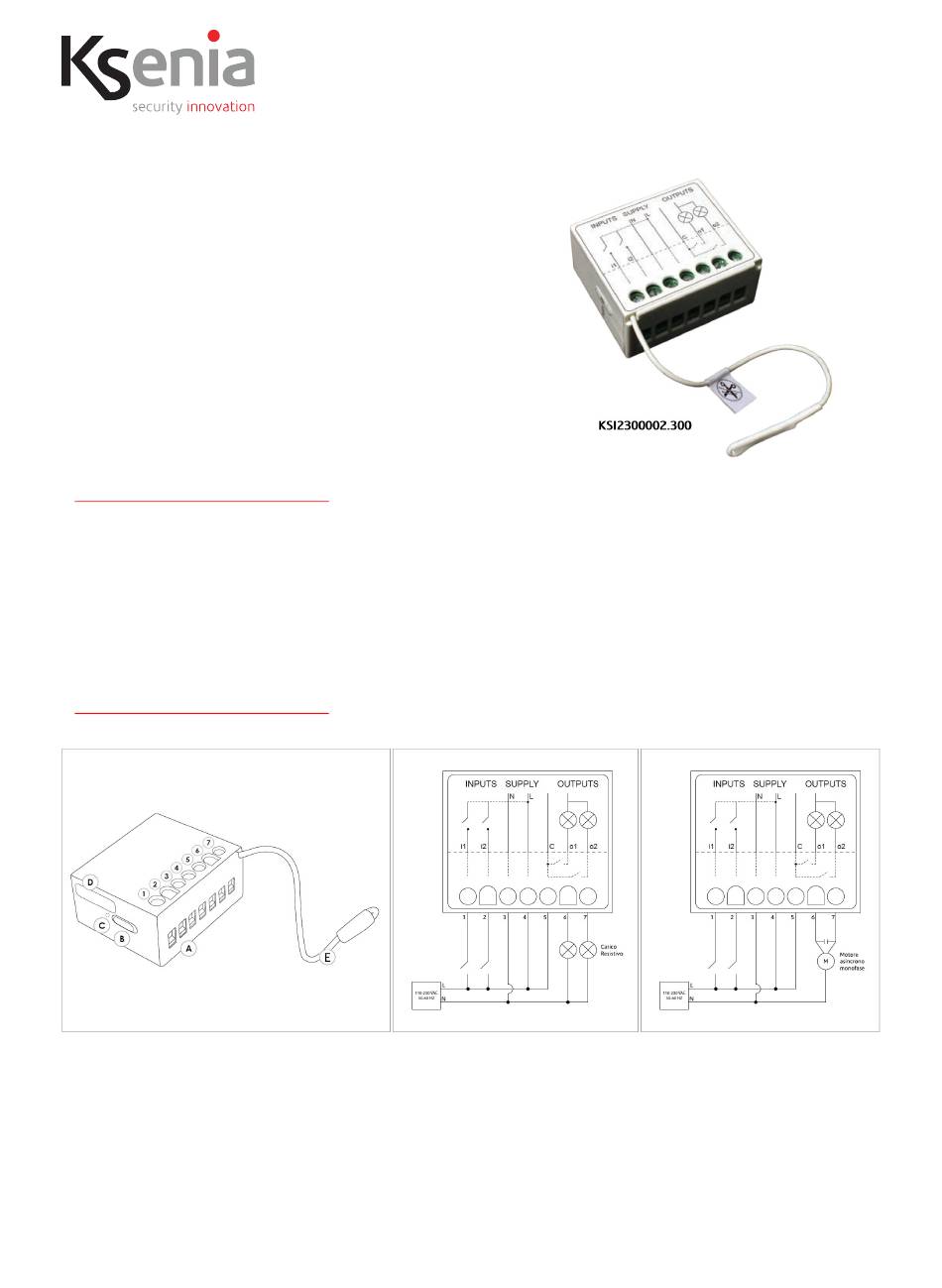

DESCRIPTION OF THE PRODUCT - TERMINALS - WIRING EXAMPLES
LEGEND
A - Terminal blocks
B - Programming button
C - Status LED
D - Serial Number Label
E - Radio Antenna DO NOT CUT
code R30020.100en
ed.04/2020
1 - Input 1
2 - Input 2
3 - Common relay contacts
4 - Power supply - neutral
5 - Relay output 1
6 - Power supply - phase
7 - Relay output 2
www.kseniasecurity.com
Advertisement
Related Manuals for Ksenia auxi wls KSI2300002.300
Summary of Contents for Ksenia auxi wls KSI2300002.300
- Page 1 auxi wls Wireles module 2 inputs/2outputs 868 MHZ bidirectional Installation guide INTRODUCTION auxi wls is a wireless module with 2 built-in inputs and outputs. Powered directly from the mains, auxi wls is ideal to remotely manage lights, home automations (such as roller blinds and curtains) and, generally, any load unreachable by cables.
-
Page 2: Technical Data
TECHNICAL DATA • Voltage: 110 -230 VAC 50-60Hz • Frequency: 868 MHz • Operative range in open air: up to 150m • Inputs: Nr. 2 • Outputs: Nr. 2 (5A 250V~AC - 5A 30VDC) • Operative range: -20 / + 55°C •... - Page 3 OUTPUTS WORKING MODES Both in stand-alone or directly connected to the Panel, the relay outputs can be programmed as follows: • INDIPENDENT OUTPUTS: both the outputs are completely independent and can be separately programmed (eg. the first output as bistable and the second one as monostable). •...
- Page 4 OUTPUTS MANAGEMENT THROUGH OPERA REMOTE COMMANDS (STAND-ALONE) What follows is valid only for using auxi wls as stand-alone device. To manage outputs with opera remote command it is necessary to enroll it. As explained in ‘Programming’ paragraph, each key of remote command can be associated with an auxi wls or 0-1-2 keys can be programmed to manage the relay outputs of 3 different auxi wls.
-
Page 5: Led Functions
In case the keys of the same opera remote command are associated to different auxi wls, by pressing a key the relay outputs react as follows: 0 1 2 In case the outputs are programmed as keys independents, a short press of the key manages the first output and a long press manages the second output. - Page 6 CONFIGURATION OF RADIO MODULE USING LARES 4.0 CONTROL PANEL In order to work with the lares 4.0 control panels, auxi wls has to be enrolled as peripheral. The different ways to enroll an auxi wls are described here below: 1. Insert the serial number of auxi wls directly from basis software 2.
- Page 7 INDEPENDENT MONOSTABLE BISTABLE relay output 1 relay output 2 relay output 1 relay output 2 Short press on key 1 of opera Short press on key 2 of opera Long press on key 1. Long press on key 2. The remote command.
-
Page 8: Factory Data Reset
FACTORY DATA RESET On factory data configuration there are no opera remote commands memorized and the outputs are programmed as independent and bistable. In order to restore the factory default, hold the programming button on auxi wls for 10 seconds while it is in normal working mode.
