Wireless module 2 inputs / 2 outputs

Advertisement

Quick Links

KSI2300002.300
Introduction ............................................................................................................................................................................................................................ 1
Technical Data ........................................................................................................................................................................................................................ 1
Parts Identification + Terminals ......................................................................................................................................................................................... 1
Wiring Examples ...................................................................................................................................................................................................................... 1
Outputs Management Through Local Contacts (Stand-Alone | Lares) ................................................................................................................. 2
Outputs Working Modes........................................................................................................................................................................................................ 2
Functions .................................................................................................................................................................................................................................. 2
Output Management Through Opera Remote Commands (Stand-Alone) ............................................................................................................... 3
Output Management Through Panel Scenarios ............................................................................................................................................................. 3
Programmation Of Radio Module Using Lares Control Panel ................................................................................................................................ 4
Programmation Of Radio Module As Stand-Alone Device ........................................................................................................................................ 4
Programmation...................................................................................................................................................................................................................... 4
Led Functions ........................................................................................................................................................................................................................... 4
Factory Data Restoral .......................................................................................................................................................................................................... 5
Certifications .......................................................................................................................................................................................................................... 5

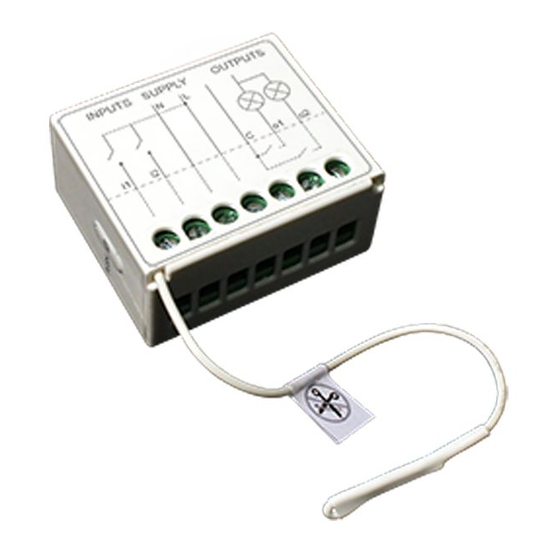

auxi wls
is a wireless module with 2 built-in inputs and outputs. Powered directly from the mains,
automations (such as roller blinds and curtains) and, generally, any load unreachable by cables.
Control Panels or as a stand-alone device. In the second case, the outputs can be controlled locally (using the inputs on board) or remotely, using
the
opera
remote control. Up to 32 different remote controls can be enrolled for each
• Voltage ................................................................................................................................................................................................... 110 -230 VAC 50-60Hz
• Frequency .......................................................................................................................................................................................................................868 MHz
• Operative range in open air .........................................................................................................................................................................up to 150 meters
• Inputs ...........................................................................................................................................................................................................................................2
• Outputs......................................................................................................................................................................................... 2 (5A 250V~AC - 5A 30VDC)
• Operative range ......................................................................................................................................................................................................-20 / + 55°C
• Dimensions ........................................................................................................................................................................................42 x 35 x 20 mm (s x h x d)
• Protection class ..................................................................................................................................................................................................................... IP20
Technical specifications, appearance, functionally and other product charateristics may change without notice.
7
6
5
4
3
D
2
1
C
B
A
Terminal blocks
A
Programmation button
B
Signalisation LED
C
Serial Number Label
D
Radio Antenna
E
DO NOT CUT

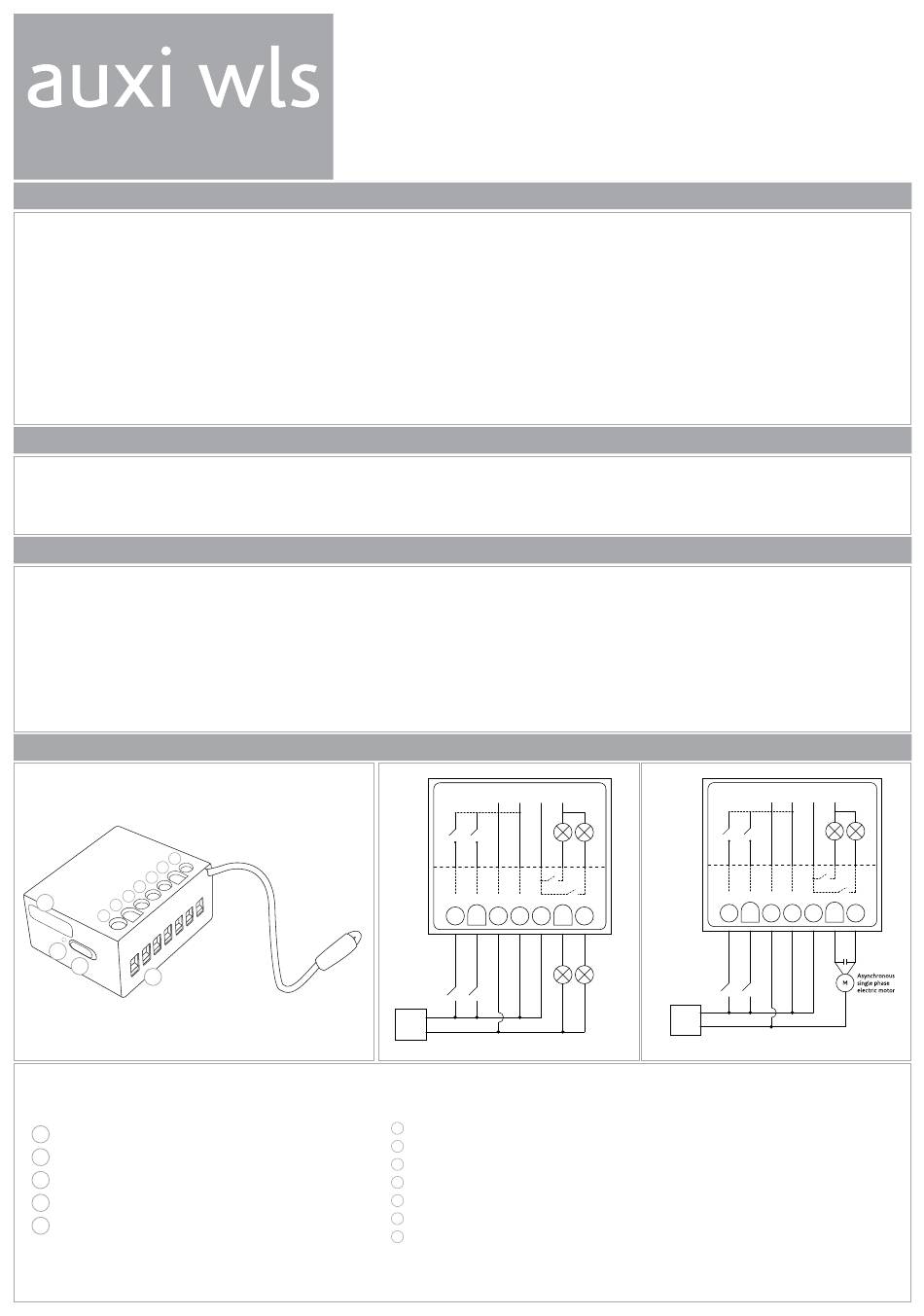

INSTALLATION AND PROGRAMMATION MANUAL
WIRELESS MODULE 2 INPUTS / 2 OUTPUTS
868 MHZ BIDIRECTIONAL

INTRODUCTION

TECHNICAL DATA

PARTS IDENTIFICATION | TERMINALS | WIRING EXAMPLES
110-230 VAC
50-60 HZ
Input 1
1
Input 2
2
Power supply - neutral
3
Power supply - phase
4
Common relay contacts
5
Relay output 1
6
Relay output 2
7
INDEX
auxi wls
.
INPUTS SUPPLY
OUTPUTS
N
L
i1
i2
C
o1
o2
1
2
3
4
5
6
7
Resistive
Load
L
N
auxi wls
is ideal to remotely manage lights, home
can be used in conjunction with
auxi wls
INPUTS SUPPLY
N
i1
i2
1
2
3
L
110-230 VAC
50-60 HZ
N
lares
OUTPUTS
L
C
o1
o2
4
5
6
7

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the auxi wls and is the answer not in the manual?

Questions and answers

Summary of Contents for Ksenia auxi wls

  • Page 1 LED FUNCTIONS ............................................4 FACTORY DATA RESTORAL .......................................... 5 CERTIFICATIONS ............................................5 INTRODUCTION auxi wls is a wireless module with 2 built-in inputs and outputs. Powered directly from the mains, auxi wls is ideal to remotely manage lights, home automations (such as roller blinds and curtains) and, generally, any load unreachable by cables.
  • Page 2 It is possible to manage relay outputs through the closure of the inputs INPUTS SUPPLY OUTPUTS present on or using the remote commands previously auxi wls opera programmed. DIRECTLY MANAGED BY INPUTS lares IT IS MANAGED AS LARES CONTROL PANELS...
  • Page 3 OUTPUTS MANAGEMENT THROUGH LOCAL CONTACTS (STAND-ALONE | LARES) What follows is valid only for using as stand-alone device auxi wls < 1 sec. > 1 sec. or as peripheral on Panel, without associated zones (see above). In case of indipendent or interlocked outputs, the first input manage the first relay output and the second input manage the second relay output.
  • Page 4 In case the outputs are programmed as indipendents, a short pression of output 1 output 1 on auxi wls 0 / 1 / 2 on auxi wls 0 / 1 / 2 the key manages the first output and a long pression manages the second short pression output.
  • Page 5 PROGRAMMATION OF RADIO MODULE USING LARES CONTROL PANEL In order to work with the control panels, has to be enrolled as peripheral. The different ways to enroll an are decribed here lares auxi wls auxi wls below: 1. Insert the serial number of directly from software...
  • Page 6 This device has been designed and made with the highest standards of quality and performance adopted by Ksenia Security. Is recommended that the installed system should be completely tested at least once a month. Test procedures depends on the system configuration. Ask to the installer for the procedures to be followed.
