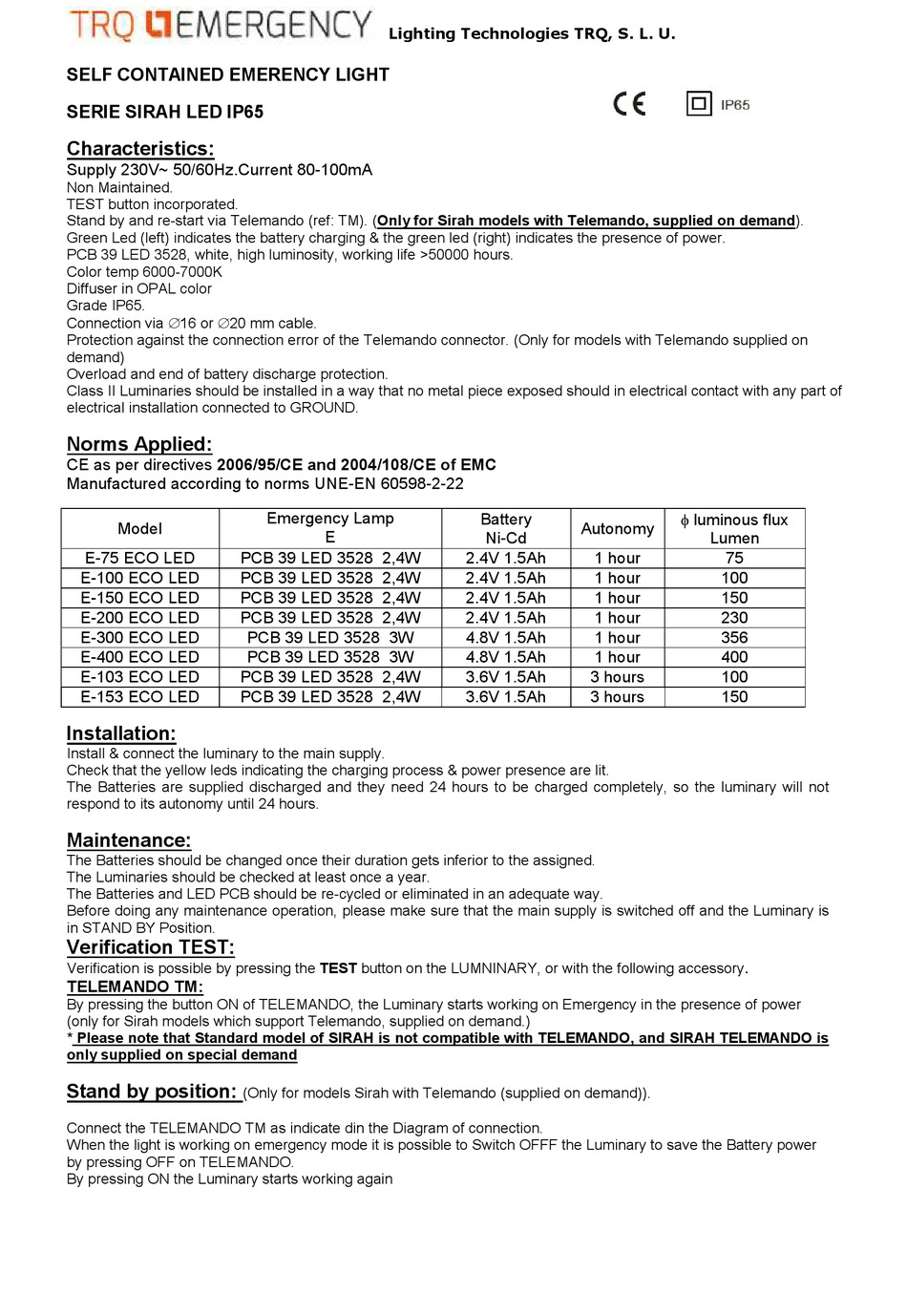

SELF CONTAINED EMERENCY LIGHT
SERIE SIRAH LED IP65

Characteristics:

Supply 230V~ 50/60Hz.Current 80-100mA
Non Maintained.
TEST button incorporated.
Stand by and re-start via Telemando (ref: TM). (Only for Sirah models with Telemando, supplied on demand).
Green Led (left) indicates the battery charging & the green led (right) indicates the presence of power.
PCB 39 LED 3528, white, high luminosity, working life >50000 hours.
Color temp 6000-7000K
Diffuser in OPAL color
Grade IP65.
Connection via 16 or 20 mm cable.
Protection against the connection error of the Telemando connector. (Only for models with Telemando supplied on
demand)
Overload and end of battery discharge protection.
Class II Luminaries should be installed in a way that no metal piece exposed should in electrical contact with any part of
electrical installation connected to GROUND.
Norms Applied:
CE as per directives 2006/95/CE and 2004/108/CE of EMC
Manufactured according to norms UNE-EN 60598-2-22
Model
E-75 ECO LED
E-100 ECO LED
E-150 ECO LED
E-200 ECO LED
E-300 ECO LED
E-400 ECO LED
E-103 ECO LED
E-153 ECO LED

Installation:

Install & connect the luminary to the main supply.
Check that the yellow leds indicating the charging process & power presence are lit.
The Batteries are supplied discharged and they need 24 hours to be charged completely, so the luminary will not
respond to its autonomy until 24 hours.

Maintenance:

The Batteries should be changed once their duration gets inferior to the assigned.
The Luminaries should be checked at least once a year.
The Batteries and LED PCB should be re-cycled or eliminated in an adequate way.
Before doing any maintenance operation, please make sure that the main supply is switched off and the Luminary is
in STAND BY Position.

Verification TEST:

Verification is possible by pressing the TEST button on the LUMNINARY, or with the following accessory
TELEMANDO TM:
By pressing the button ON of TELEMANDO, the Luminary starts working on Emergency in the presence of power
(only for Sirah models which support Telemando, supplied on demand.)
* Please note that Standard model of SIRAH is not compatible with TELEMANDO, and SIRAH TELEMANDO is
only supplied on special demand

Stand by position:

Connect the TELEMANDO TM as indicate din the Diagram of connection.
When the light is working on emergency mode it is possible to Switch OFFF the Luminary to save the Battery power
by pressing OFF on TELEMANDO.
By pressing ON the Luminary starts working again
Lighting Technologies TRQ, S. L. U.
Emergency Lamp
E
PCB 39 LED 3528 2,4W
PCB 39 LED 3528 2,4W
PCB 39 LED 3528 2,4W
PCB 39 LED 3528 2,4W
PCB 39 LED 3528 3W
PCB 39 LED 3528 3W
PCB 39 LED 3528 2,4W
PCB 39 LED 3528 2,4W
(Only for models Sirah with Telemando (supplied on demand)).
Battery
Autonomy
Ni-Cd
2.4V 1.5Ah
1 hour
2.4V 1.5Ah
1 hour
2.4V 1.5Ah
1 hour
2.4V 1.5Ah
1 hour
4.8V 1.5Ah
1 hour
4.8V 1.5Ah
1 hour
3.6V 1.5Ah
3 hours
3.6V 1.5Ah
3 hours
 luminous flux
Lumen
75
100
150
230
356
400
100
150
.
