Self Contained Emergency Luminary
SERIE VEGA
Characteristics:
Supply 230 V 50/60Hz.
Non maintained Luminary.
Stand by and re-start via Telemando.
Yellow Led indicating battery charging.
Autonomy more than 1 or 3 hours.(depending on the model).
Grade IP22.
Simple connection by means of 6 or 8 mm.cable.
Overload and end of battery discharge protection.
Class II Luminaries should be installed in a way that no metal piece exposed is in electrical
contact with any part of electrical installation connected to
ground.
Norms Applied:
CE as per directives 79/23 of LVD and 89/336 of EMC.
Manufactured according to norms UNE-EN 60598-2-22,UNE 20-392-93 and in complying with
the norms EN-55015 and EN 50082-1 of electromagnetic compatibility.
Adapted to the Instructions of low tension electro technical norm RBT and NBE CPI 96 of the
basic norm of edification.
Technical Drawing:
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for TRQ VEGA Series
Summary of Contents for TRQ VEGA Series

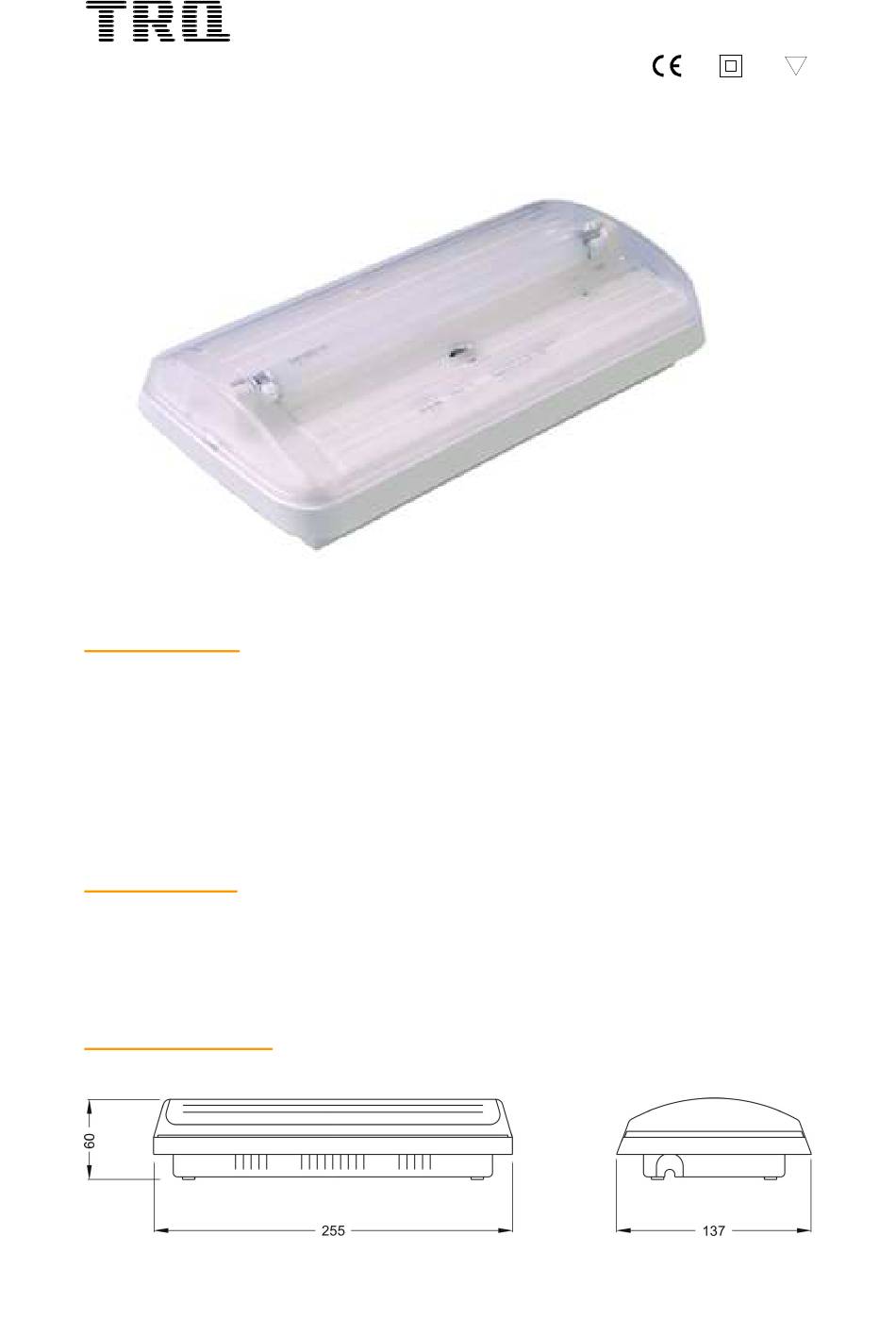

- Page 1 Talleres Radioeléctricos Querol, S.L. IP223 Self Contained Emergency Luminary SERIE VEGA Characteristics: Supply 230 V 50/60Hz. Non maintained Luminary. Stand by and re-start via Telemando. Yellow Led indicating battery charging. Autonomy more than 1 or 3 hours.(depending on the model). Grade IP22.
- Page 2 Modelos Available: φ Emergency Indicating lamp Battery Auton Models Lamp Lumens EF S-70 6W (G5) LED AMBAR 10mm 2,4V 1,5Ah 1 Hr EF S-180 6W (G5) LED AMBAR 10mm 3,6V 1,5Ah 1 Hr EF S-250 6W (G5) LED AMBAR 10mm 4,8V 1,5Ah 1 Hr EF S-380...
- Page 3 Accessories: ST-21 Clips ST-21 (to recess in the ceiling). ST-25 Double sided Diffuser.
- Page 4 Installation: Remove the cover by pressing one of the sides. After removing the cover, take out the upper part of the reflector and you will see the connectors for making the connection. Connection ModelsEFS-70, EFS-55, EFS-180, EFS-250, EFS-380,EFS-73 Connection Model PC-180...
- Page 5 Cut & introduce the cable according to the indications and make connection of the connectors. Mounting on the Wall The holes in the wall to fix the emergency light should be 180mm. False Ceiling mounting Make a hole in the false ceiling as per the dimensions indicated. Attach the accessory ST-21 in their respective holes indicated in the figure above.
