- Page 1 Commercial 7KW EV Charging Station SUN-7KW-EV2 USER MANUAL Global Tech China Ltd, 3 Floor, Wai Yip Industrial Building.171 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong. Tel: +852 2884 4318 Fax: +8522884 4816 www.sunsynk.com / sales@globaltech-china.com / www.globaltechhk.com v1.0 - 12/03/2020...
-
Page 2: Table Of Contents
INDEX 1. SAFETY ............................3 2. PRODUCT INTRODUCTION ......................4 2.1. P ........................4 RODUCT VERVIEW 2.2. P ......................4 RINCIPLE LOCK IAGRAM 2.3. K ..........................5 ARAMETERS 2.4. P ........................5 RODUCT EATURES 3. OPERATION INSTRUCTION ......................6 3.1. C ...................... -
Page 3: Safety
In case of abnormalities during usage, press the emergency stop button immediately to cut off all input and output; ◼ During the charging process, the vehicle is forbidden to drive and can only be charged when it is stationary ◼ Please turn off the hybrid electric vehicle before charging. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 4: Product Introduction

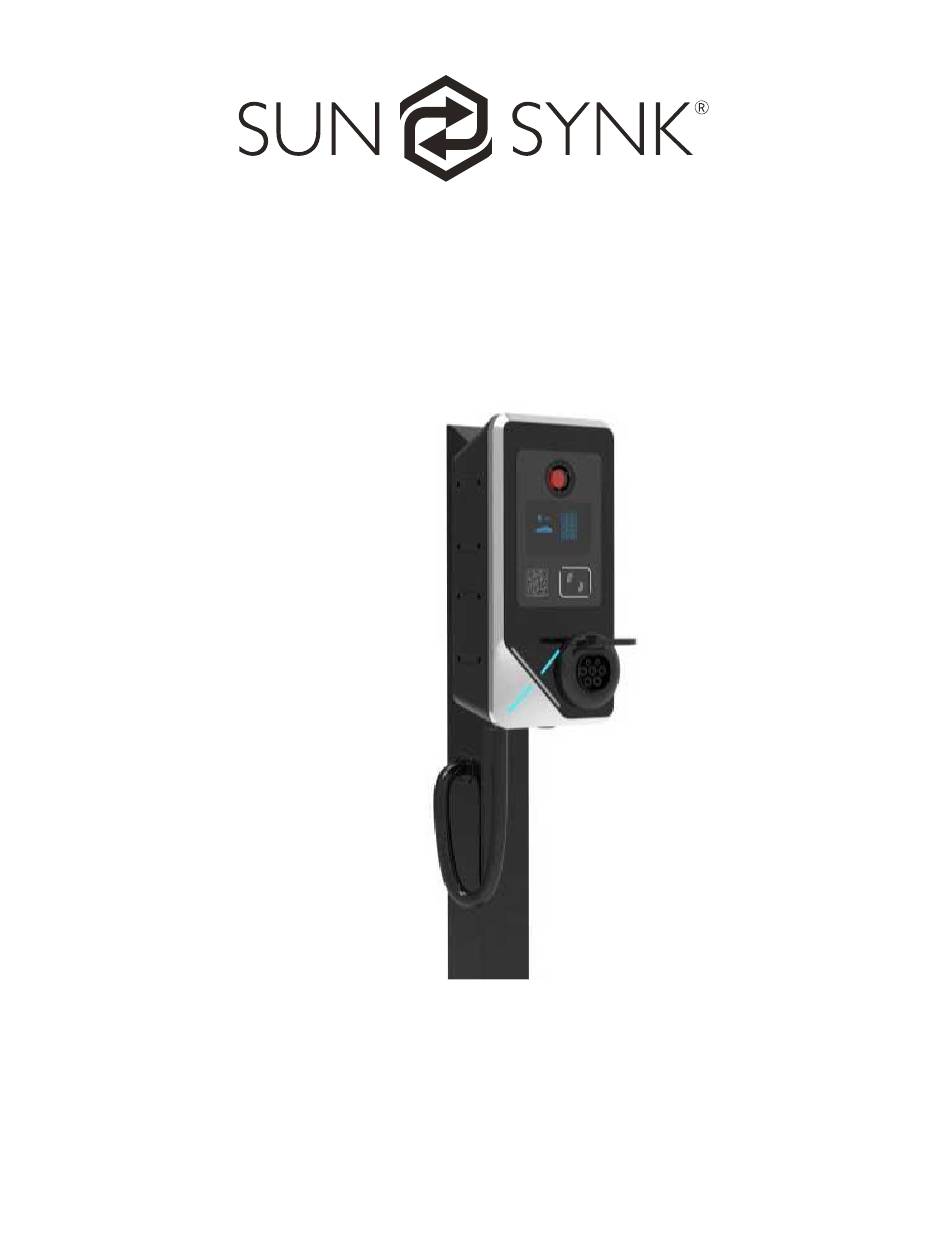

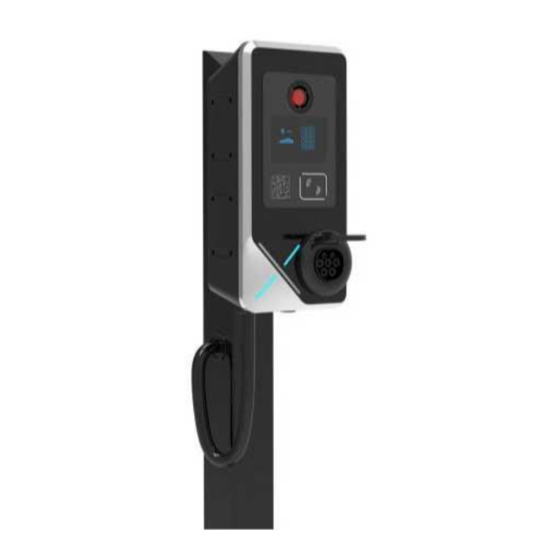

It features charging protection, card charging, scan code charging, mobile payment, network monitoring, and other functions. This product adopts industrial design, easy to install, and quick to deploy. Figure 1 - Outlook drawing. 2.2. Principle Block Diagram Figure 2 - Product principle diagram. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 5: Key Parameters
2.3. Key Parameters Product Name Commercial 7KW EV Charging Station Model No. SUN-7KW-EV2 Shell Material Plastic Product Size 400 x 200 x 117 mm (L x W x H) Appearance and Installation Methods Wall-Mounted Floor Type structure Installation Accessories Rear Plate... -
Page 6: Operation Instruction
3.3.1. Charging Connection After the driver parked the vehicle, please make sure it is plugged in place and connected reliably. The network version can support the app/Wechat Scan code for charging and swipe the IC card for charging. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 7: Stop Charging
If the owner wants to stop charging when the EV charger is under processing.Can operate it through the below methods: 1) Mobile terminal (APP or WeChat public): Click the “stop charging” button and then draw the gun. 2) Swipe the card for settlement, and draw the gun after successful deduction. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 8: Charging Settlement
WeChat public number. The owner can also view the historical consumption records and changes of account funds through the consumption list. Swipe card for charging settlement swipe the card to settle automatically, the screen displays the charging amount and charging amount. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... -
Page 9: Troubleshooting
2. Check the input voltage frequency in the background monitoring data. If it is too lower for a long time, please reduce the protection frequency; value, min. value up to 40Hz. 3. If the problem cannot be eliminated, please contact us. Website: www.sunsynk.com E-mail: sales@globaltech-china.com... - Page 10 3. If the problem cannot be eliminated, please contact us. Plug connection Charging plug CC/CP 1. Check whether the connection of the charging abnormal connection is abnormal plug is correct and reliable. 2. If the problem cannot be eliminated, please contact us. Website: www.sunsynk.com E-mail: sales@globaltech-china.com...
