REMOTE KEYPAD with NFC Tag (KPT-32)

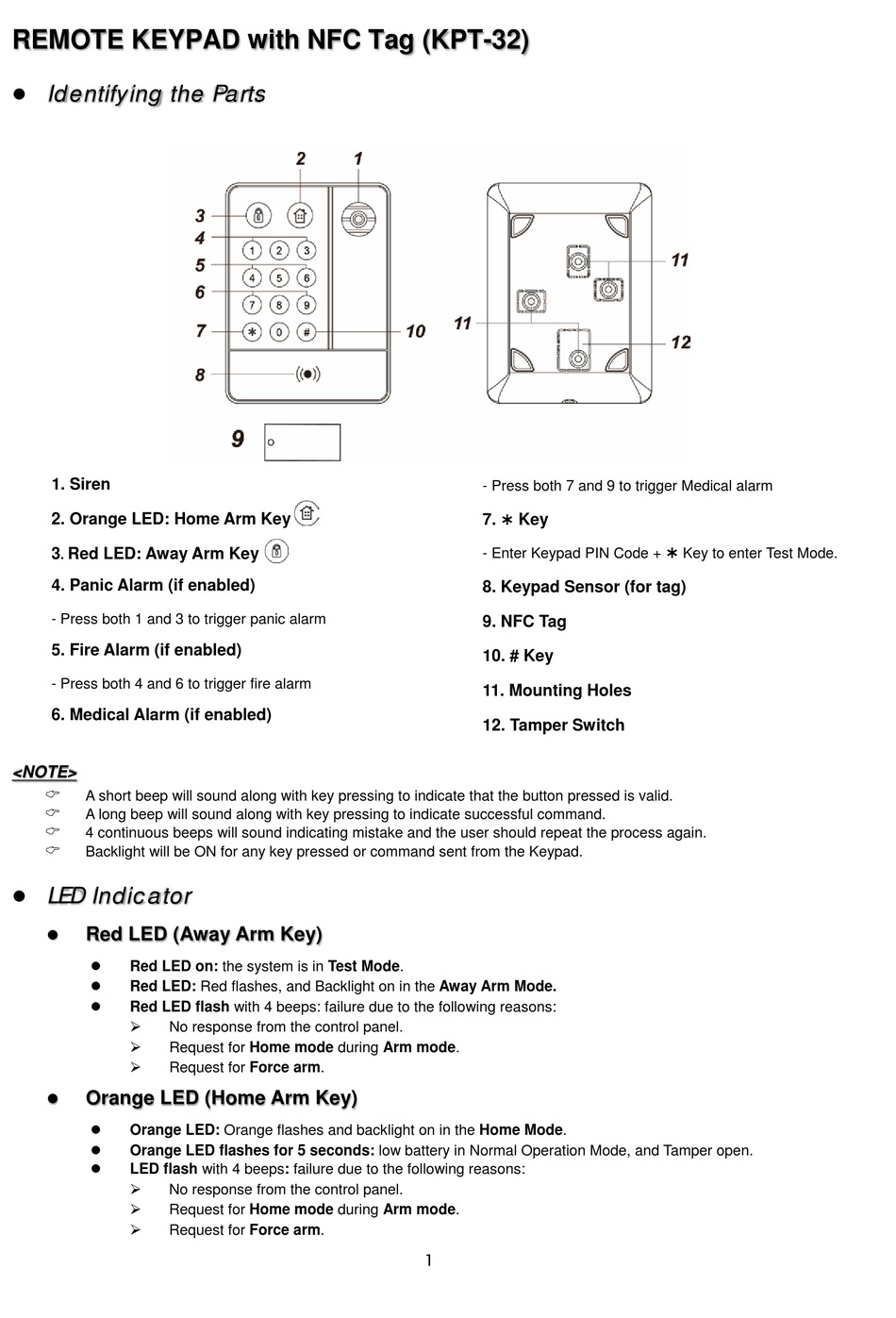

Identifying the Parts
1. Siren
2. Orange LED: Home Arm Key
3
Red LED: Away Arm Key
.
4. Panic Alarm (if enabled)
- Press both 1 and 3 to trigger panic alarm
5. Fire Alarm (if enabled)
- Press both 4 and 6 to trigger fire alarm
6. Medical Alarm (if enabled)
<NOTE>
A short beep will sound along with key pressing to indicate that the button pressed is valid.
A long beep will sound along with key pressing to indicate successful command.
4 continuous beeps will sound indicating mistake and the user should repeat the process again.
Backlight will be ON for any key pressed or command sent from the Keypad.
LED Indicator
Red LED (Away Arm Key)
Red LED on: the system is in Test Mode.
Red LED: Red flashes, and Backlight on in the Away Arm Mode.
Red LED flash with 4 beeps: failure due to the following reasons:
No response from the control panel.
Request for Home mode during Arm mode.
Request for Force arm.
Orange LED (Home Arm Key)
Orange LED: Orange flashes and backlight on in the Home Mode.
Orange LED flashes for 5 seconds: low battery in Normal Operation Mode, and Tamper open.
LED flash with 4 beeps: failure due to the following reasons:
No response from the control panel.
Request for Home mode during Arm mode.
Request for Force arm.
- Press both 7 and 9 to trigger Medical alarm
7.
Key
- Enter Keypad PIN Code +  Key to enter Test Mode.
8. Keypad Sensor (for tag)
9. NFC Tag
10. # Key
11. Mounting Holes
12. Tamper Switch
